SKU
PT 115S [AE403]
Your Price: $3,448.00
See Lowest Price in Cart!

Description

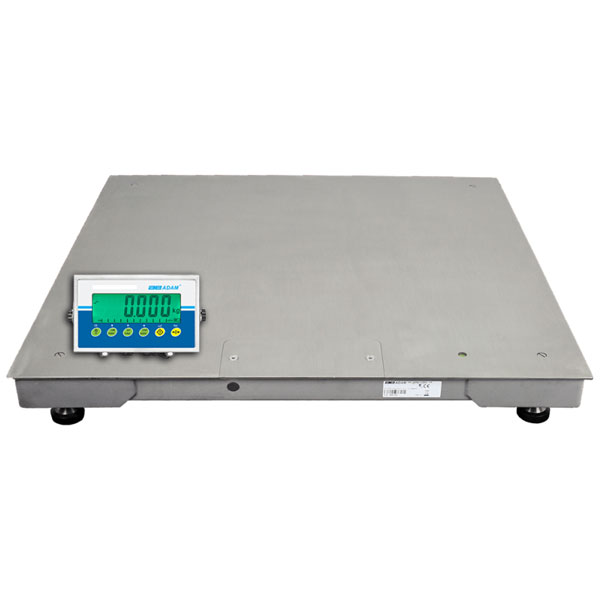

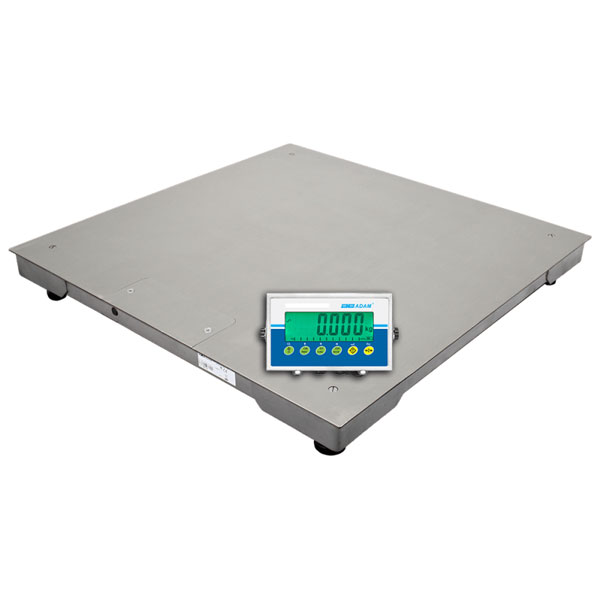

The Adam Equipment PT 115S [AE403] 5 x 5' stainless steel floor scale has a capacity of 2,500 lbs with a readability of 0.5 lb. With rugged construction to endure demanding washdown environments, PTstainless steel platform scales provide the ultimate in durability for a variety of commercial, industrial and mining applications. PT stainless steel platforms offer a capacity up to 10000lb/4500kg and a readability of up to 0.5lb/0.2kg, and are available in three square platform sizes: 39in/1000mm; 47in/1200mm; and59in/1500mm. Ideal for weighing food products, chemicals, pharmaceuticals or mining materials, the PT stainless steel platform features an IP66-rated load cell and stainless steel junction box, sealed for protection against water and dust. Easy to clean, the grade 304 stainless steel plate can tolerate frequent washing, while the sleek brushed surface helps prevent the accumulation of food and dirt particles. The PT stainless steel scale is supported by a reinforced frame beneath the platform, allowing the scale to accommodate substantial loads. Offering solid, dependable stability, PT stainless steel's heavy-duty rubber feet are adjustable to compensate for uneven weighing surfaces.Optional ramps are tailor-made to fit the exact size of each platform. PT stainless steel platforms are paired with the AE403 indicator to provide the features and functions needed for any demanding washdown weighing task.

  • Rugged stainless steel construction for ultimate durability
  • Approximately three-meter/10-foot shielded cable
  • Can be used with any Adam indicators
  • Heavy-duty rubber feet ensure stability of unit
  • IP66-rated for protection against water and dust
  • Applications: Weighing, Parts Counting, Checkweighing, Dynamic/animal weighing
  • Backlit LCD display
  • Stainless steel IP67 Rated Indicator (AE403)
  • Rechargeable battery
  • 3 year warranty
Technical Specifications:
Capacity2,500 lbs / 1,000 kg
Readability0.5 lbs / 0.2 kg
Platform Size59.1 x 59.4 / 1.5 x 1.5 meter
Repeatability (S.D.)1 lb / 0.4 kg
Linearity (±)1 lb / 0.4 kg
Excitation Voltage5 - 10 VAC / DC
Load Cells4
Weighing Unitsg, kg, lb, lb:oz, oz, N, custom unit
Stabilization Time2 seconds
InterfaceRS-232
DisplayBacklit LCD with 1.6"/ 40mm - high digits
Power Supply12VDC 800mA adapter / Internal rechargeable battery
Operating Temperature32° to 104°F / 0° to 40°C
HousingStainless Steel Platform and Indicator
Cable Length10' / 3 meter
Overall Dimensions59.1 x 59.1 x 4.3" / 150 x 150 x 11 cm
Net Weight244.6 lbs / 111 kg
