SKU
PT 312-5 [AE403]
Your Price: $1,556.00
See Lowest Price in Cart!

Description

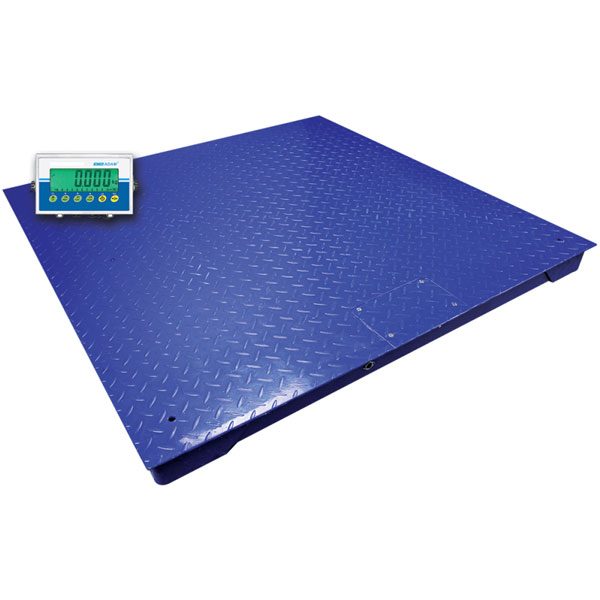

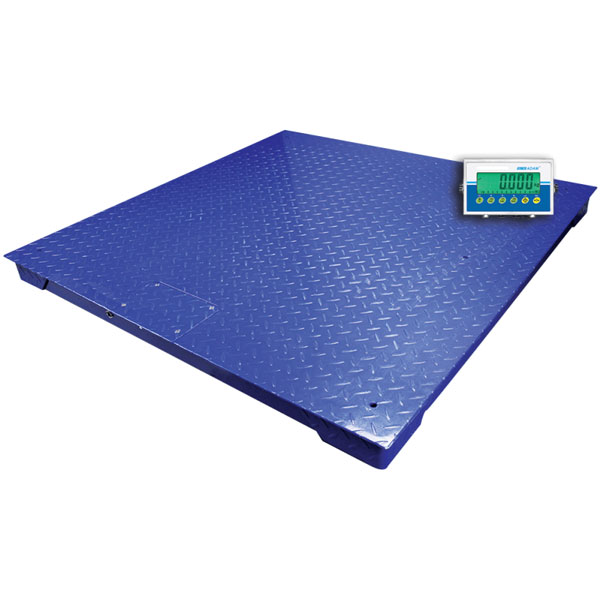

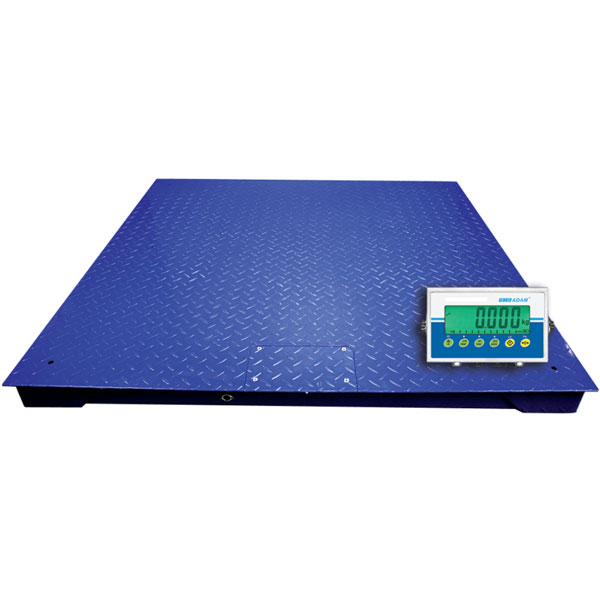

The Adam Equipment PT 312-5 [AE403] floor scale has a capacity of 5,000 lbs with a readability of 1 lb and has a 4 x 4 foot square platform. Adam Equipment PT series floor scales feature a low profile design for easy loading and unloading. The range incorporates a non-slip checkered plate for added grip. Heavy duty rubber feet support the four load cells ensuring quality and longevity of the bases. The platforms are available with or without the AE403 indicator, a washdown indicator that has a range of features for many different applications. The stainless steel housing is sealed for IP65 wash down environments and comes complete with the wall mount bracket and hardware to place it where you want it. A built-in battery with low battery indicator, an easy-to-use keypad with highlighted tare key and a large backlit display round out the AE403 indicator. With the capacity to run up to eight load cells (maximum 350 ohm each) and a large easy-to-read LED display this indicator provides faster readings.

  • Backlit display changes color for quick notification of checkweighing limits
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Rugged construction stands up to industrial use
  • Diamond-plate surface for added grip
  • Optional ramps facilitate loading and unloading
  • Can be used with any Adam indicators
  • Approximately five-meter/15-foot shielded cable
  • Color-coded keys facilitate quick recognition of the most frequently used buttons
  • External calibration allows for verification and adjustment with weights
  • Parts counting with preset sample sizes
  • Checkweighing with audible alarm
  • Selectable digital filtering helps minimize effects of vibration and disturbances
  • Zero-tracking feature ensures display returns to zero reading
  • Hold function freezes the displayed weight, allowing time to elapse without losing the result
  • Rechargeable battery included for operation almost anywhere
  • Battery level is clearly displayed to show the user when the scale needs to be recharged
  • Programmable auto power-off to save energy
  • 3 year warranty
Technical Specifications:
Capacity5,000 lbs / 3,000 kg
Readability1 lb / 0.5 kg
Platform Size47.2 x 47.2" / 1.2 x 1.2 meter
Repeatability (S.D.)2 lbs / 1 kg
Linearity (±)2 lbs / 1 kg
Excitation Voltage5 - 10 VAC / DC
Load Cells4
Weighing Unitsg, kg, lb, lb:oz, oz, N, custom unit
Stabilization Time2 seconds
InterfaceRS-232
DisplayBacklit LCD with 1.6"/ 40mm - high digits
Power Supply12VDC 800mA adapter / Internal rechargeable battery
Operating Temperature32° to 104°F / 0° to 40°C
HousingMild Steel Base, Stainless Steel Indicator Housing
Cable Length10' / 3 meter
Overall Dimensions47.2 x 47.2 x 4.3" / 120 x 120 x 11 cm
Net Weight179.4 lbs / 81.4 kg
