Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

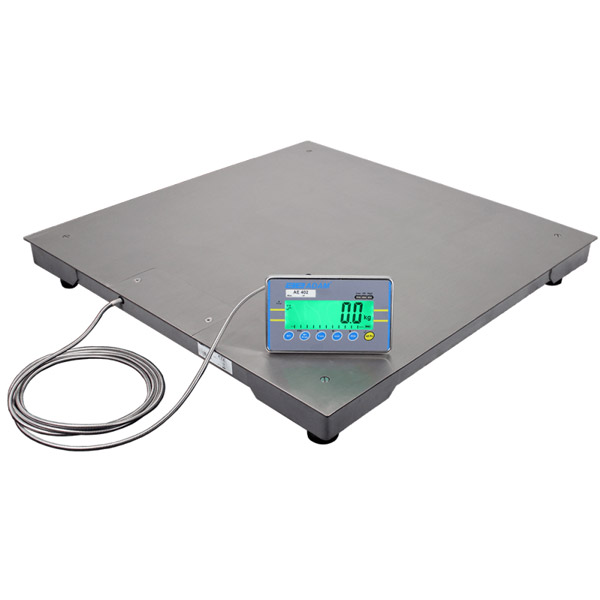

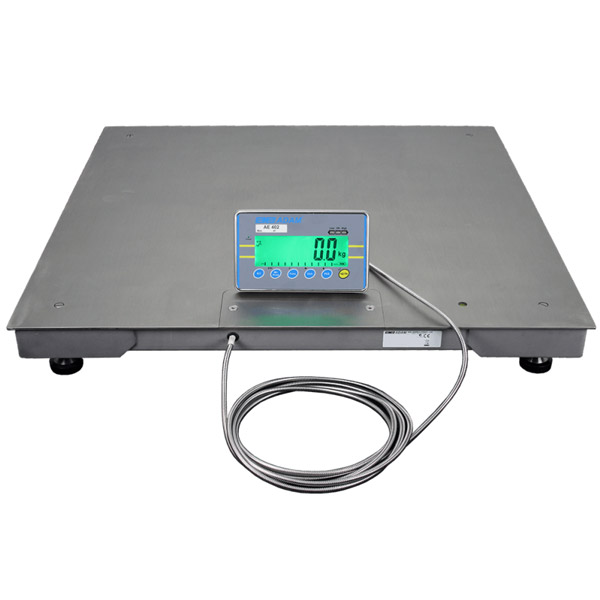

The Adam Equipment PT 315-5S [AE402] 5 x 5' stainless steel floor scale has a capacity of 5,000 lbs with a readability of 1 lb. With rugged construction to endure demanding washdown environments, PTstainless steel platform scales provide the ultimate in durability for a variety of commercial, industrial and mining applications. Ideal for weighing food products, chemicals, pharmaceuticals or mining materials, the PT stainless steel platform features an IP66-rated load cell and stainless steel junction box, sealed for protection against water and dust. Easy to clean, the grade 304 stainless steel plate can tolerate frequent washing, while the sleek brushed surface helps prevent the accumulation of food and dirt particles. The PT stainless steel scale is supported by a reinforced frame beneath the platform, allowing the scale to accommodate substantial loads. Offering solid, dependable stability, PT stainless steel's heavy-duty rubber feet are adjustable to compensate for uneven weighing surfaces. Optional ramps are tailor-made to fit the exact size of each platform. PT stainless steel platforms can be paired with the AE 402 indicator to provide the features and functions needed for any demanding washdown weighing task.

  • Rugged stainless steel construction for ultimate durability
  • Approximately three-meter/10-foot shielded cable
  • Can be used with any Adam indicators
  • Heavy-duty rubber feet ensure stability of unit
  • IP66-rated for protection against water and dust
  • Applications: Weighing, Parts Counting, Checkweighing, Dynamic/animal weighing
Technical Specifications:
Capacity5,000 lbs / 3,000 kg
Readability1 lb / 0.5 kg
Pan Size59.1 x 59.1 inches / 1.5 x 1.5 meter

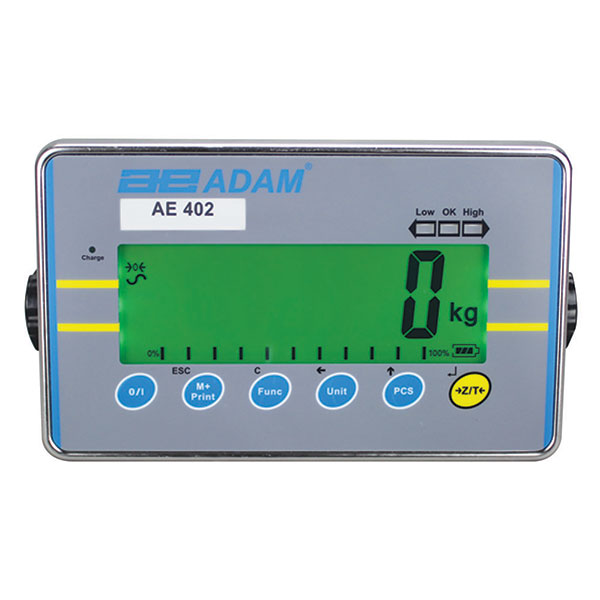

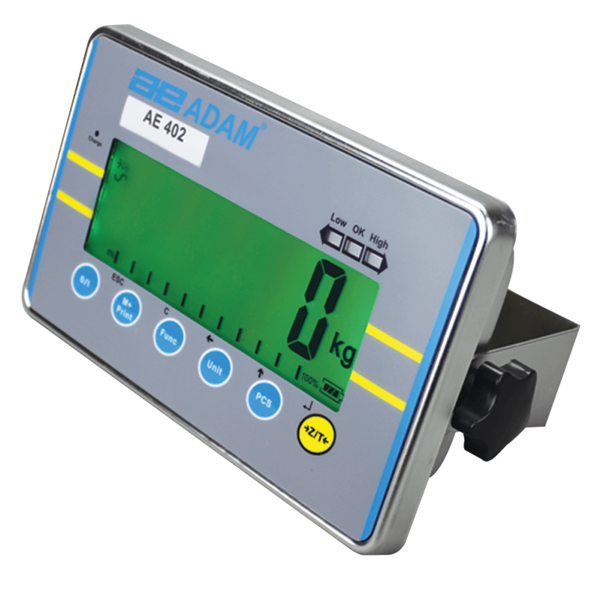

Indicator IncludedAE402
Stabilization Time2 seconds
ApplicationsWeighing, Parts Counting, Checkweighing, Dynamic / Animal Weighing
Operating Temperature14°F to 104°F / -10°C to 40°C
Construction / IP RatingStainless Steel / IP66 base and indicator
Cable Length10 feet
Excitation Voltage5 10 VAC / DC
Net Weight174 lbs / 79 kg
