SKU
GF-203AN
  • $1,380.00
  • $1,725.00 You Save 40.95%

Description

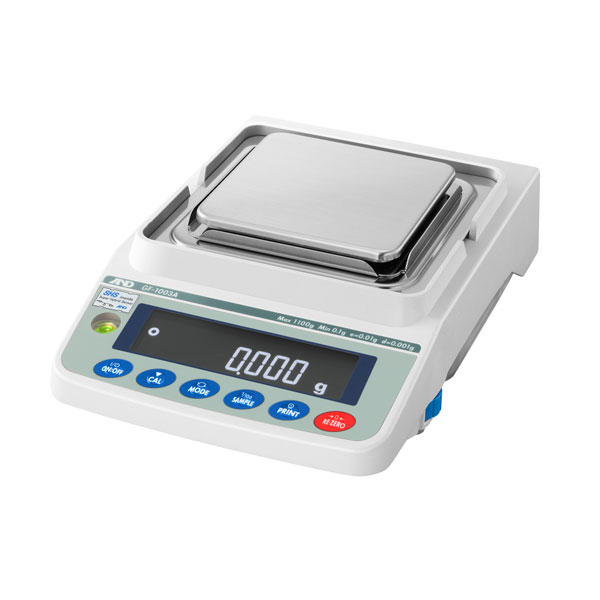

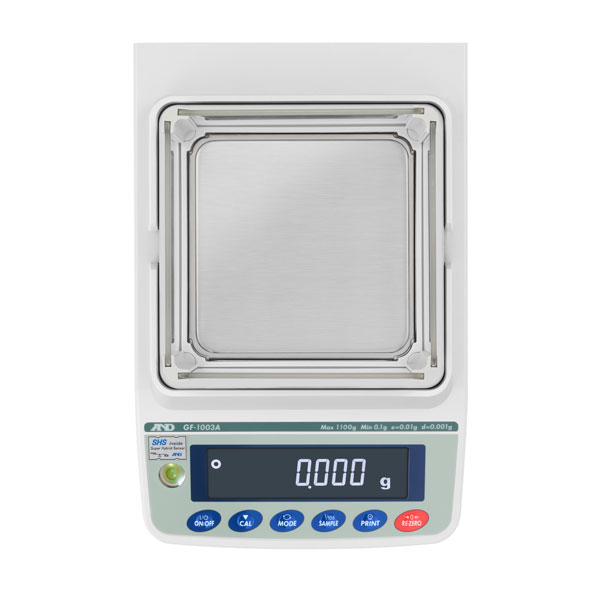

The A&D Apollo GF-203AN NTEP (legal-for-trade) precision balance has a 220 gram capacity with a 0.001 gram (NTEP 0.01 g) readability and has a 5 x 5 inch (128 x 128mm) pan. A&D Apollo Series NTEP (legal-for-trade) precision balances feature blazing fast performance with Smart SHS (super hybrid sensor) technology. These balances are tough, yet precise, instruments suitable for the laboratory, factory floor or retail spaces. NTEP class II and Measurement Canada approved for use in pricing product according to weight and are switchable from e=d to e=10d depending on local regulations.

  • Super fast Smart-SHS sensor (1 second response time in fast mode)
  • NTEP and Measurement Canada approved
  • NTEP e=d or switchable to e=10d
  • Easy-to-read reverse backlit LCD provides clear and wide-angle visibility even in dimly-lit areas.
  • IP65 protection against dust and spills
  • Impact shock detection stores potentially damaging loads placed on the balance
  • High capacity with high resolution
  • Available with either internal (GX) or external (GF) calibration
  • RS-232C and bidirectional USB standard
  • Ethernet and wireless Bluetooth interfaces optional
  • Simple user interface
  • Easy to clean
  • Robust die-cast aluminum housing
  • Flow rate calculation and display available
  • 5 year warranty
Technical Specifications:
Capacity220g
Readability0.001g (0.01 g NTEP class II)
Pan size5 x 5 inches / 128 x 128 mm
Repeatability (std dev)0.001g
Linearity±0.002 g
Accuracy immed.following cal± 0.010 g
Stabilization timeApprox. 1 sec (approx 0.8 sec for 5 g)
Sensitivity drift±2 ppm / °C (10 °C to 30 °C / 50 °F to 86 °F, when automatic self-calibration is OFF)
Calibration wt50g, 100g, 200g
DisplayReverse Backlit LCD (Character height: 17.8 mm)
Display refresh rate5 times / second, 10 times / second or 20 times / second
Unitsg (gram), oz (ounces), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (specific gravity), and a user-programmable unit.
Counting mode, min unit mass0.001g
Counting mode, # of samples5, 10, 25, 50 or 100 pieces
Percent mode, min 100% ref mass0.001g
Percent mode, min 100% display0.01%, 0.1% or 1% (depends on the reference mass stored)
Operating environ ment5 °C to 40 °C / 41 °F to 104 °F, 85% R.H. or less (no condensation)
Power supply / consumptionAC adapter / approx. 30 VA
Communication interfaceRS-232C and USB
Overall Dimensions (WxDxH)212 (W) x 317 (D) x 93 (H) mm / 8.3 (W) x 12.5 (D) x 3.7 (H) in
Net weightApprox. 5 kg / 11 lb
Shipping Weight14.3 lbs / 13 x 17 x 11 inches
