Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

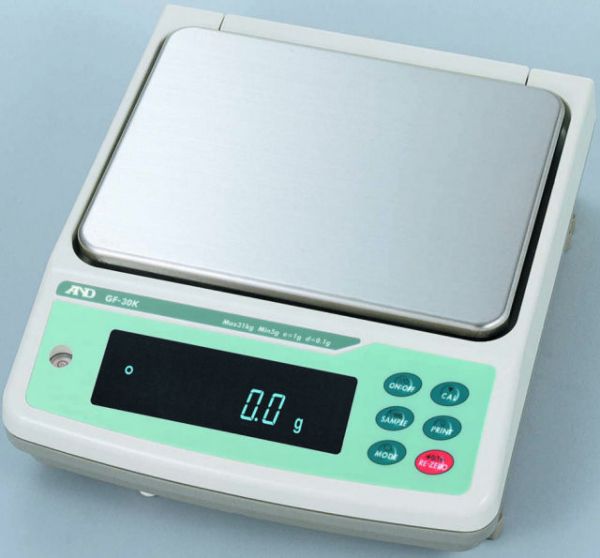

GF-K utilizes A&D's revolutionary Super Hybrid Sensor® (SHS) technology. SHS improves response speed, accuracy and minimizes maintenance costs. SHS combines the best of magnetic force restoration and single point parallelogram load cell technologies. Its unique design provides the fastest response speed in its class - just 1.5 seconds!

  • External Calibration
  • Auto Environmental Compensation ensures the optimal performance of the device at all times
  • IP-65/NEMA4 protection against dust and spills, stainless steel weigh pan
  • Standard RS-232C bi-directional communication
  • GLP/GMP/ISO Compliant to either AD-8121B printer or computer. Transmits date, time, ID number, serial number and calibration data
  • Data Memory Function
  • Multiple Weighing Modes
  • Quick Reference Operation Card
  • Time and date built-in and complies with GLP and Interval Weighing in the Data Memory Function
  • Vacuum Fluorescent Display
  • Standard WinCT Software
  • A&D’s exclusive SHS Technology, maximum response speed & minimal maintenance costs
  • 5 Year Warranty
Technical Specifications:
Capacity10.1kg
Readability0.01g
Pan Size8.3 x 10.6" / 211 x 269mm
Units of measureg, kg, oz, lb, lb-oz, ozt, dwt, ct, mm, GN, pcs, %, custom
Linearity±0.02 g
Repeatability (standard deviation)0.01 g
Sensitivity drift (10°C to 30°C / 50°F-80°F)±2 ppm/°C
Counting mode min. unit mass0.01g
Percentage mode min. 100% reference mass1 g
External calibration mass2, 3, 4, 5, 6, 7, 8 kg
Stabilization timeApprox. 1.5 seconds (typical in FAST mode)
Operating temperature5°C to 40°C / 41°F to 104°F, RH less than 85% (No condensation)
Display refresh5 times per second (stable) / 10 times per second
Counting mode sample size10, 25, 50 or 100 pieces
Percent mode min. 100% display0.01%, 0.1% , 1% (depending on reference mass)
External dimensions (W x D x H)300 x 355 x 111mm / 11.81 x 13.98 x 4.37"
Net weight8.3 kg / 18.3 lbs
Notes
  • GX-04K (Comparator Output) and GX-06K (Analog Output) replace standard RS-232C port. Only one option per balance.
  • Use the GX-07K optional water proof RS-232C cable, in order to use the standard RS-232C Iinterface for water and dust proof (IP65)
