SKU
GF-800
  • $2,040.00
  • $2,720.00 You Save 25.00%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

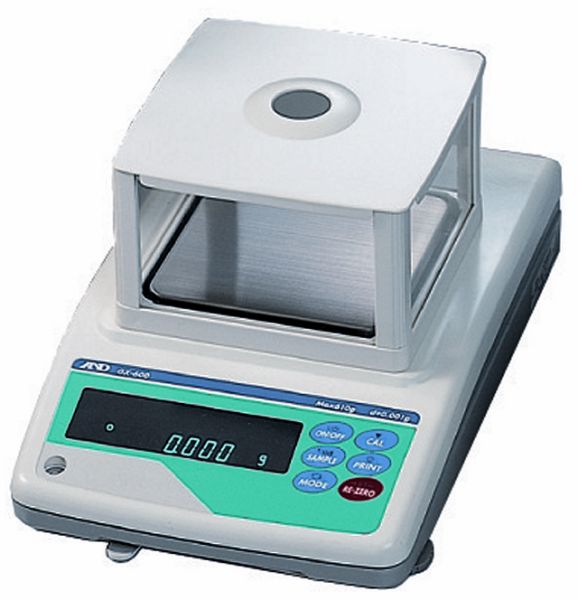

The GF Series incorporates A&D's unique SHS technology and defies comparison with all others. Revolutionary and patented Super Hybrid Sensor (SHS) technology improves response speed and inimizes maintenance costs. Its unique design provides the fastest response speed in its class - an amazing one-second. SHS combines the best of magnetic force restoration and single point parallelogram load sensing technologies.

  • "N" Models are NTEP Class II and meets Pharmacopia Requirements CofC 03-005
  • Fast, new Super Hybrid Sensor (SHS) gives you the ultimate in response speed - Just ONE Second!
  • Large, bright Vacuum Fluorescent Display - see the display even in the dark
  • Percentage, Counting Functions & Comparator functions
  • ACAI Counting Function for highly accurate counting
  • GLP/GMP/ISO Compliance
  • Data Memory Function
  • RS-232C Standard
  • Standard WinCT Software
  • Multiple Weighing Units
  • 5 Year Warranty
Technical Specifications:
Capacity810g
Readability0.001g
Pan Size5.04 x 5.04" / 128 x 128mm
Linearity0.003g
Stabilization time (typical at FAST)Approx. 1.5 second
Sensitivity drift (10°C to 30°C / 50°F-80°F)2ppm/°C (When automatic self calibration is not used)
Operating temperature5°C to 40°C (41°F to 104°F), 85%RH or less (No condensation)
Sensing methodSuper Hybrid Sensor (SHS); SHS: Patent issued and pending
Display typeVacuum Fluorescent Display (VFD)
Display refresh rate5 times/second or 10 times/second
Counting modeMinimum unit mass: 0.001g
Number of samples: 10, 25, 50 or 100 pieces
Percent modeMinimum 100% reference mass: 0.1g
Minimum 100% display: 0.01%, 0.1%, 1% (Depends on reference mass stored)
Standard serial I/FRS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM)
External dimensions (W x D x H)210 x 317 x 86mm / 8.27 x 12.48 x 3.39"
AC adapterConfirm that the adapter type is correct for the local voltage and power receptacle
Power consumptionApprox. 11VA (supplied by AC adapter)
Net weight8.4 lb / 3.8 kg
