DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

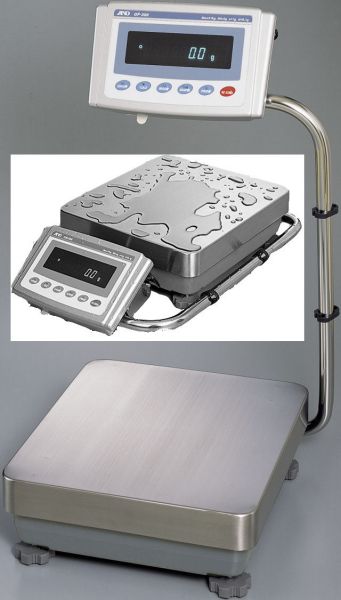

The GP Series incorporates A&D's enhanced weighing sensor, Double Leveraged Super Hybrid Sensor (SHS). This technology brings the most accurate weighing results to high precision balances.
| Capacity | 6kg / 31kg (with swing arm post) |
|---|---|
| Readability | 0.1g / 1g |
| Pan Size | 384 x 344mm / 15.12 x 13.54" |
| Units of measure | kg, kg-g, oz, lb, lb-oz, ozt, dwt, ct, mm, GN, pcs, % |
| Linearity | ±0.5g / ±0.1g |
| Repeatability (standard deviation) | 0.1g |
| Sensitivity drift (10°C to 30°C / 50°F-80°F) | ±5 ppm/°C |
| Counting Mode min. Unit Mass | 1g |
| Percentage Mode min. 100% reference mass | 100g |
| External calibration mass | 10kg, 20kg |
| Stabilization Time | Approx. 1.5 seconds (typical in FAST mode) |
| Operating temperature | 5°C to 40°C / 41°F to 104°F, RH less than 85% (No condensation) |
| Display Refresh | 5 times per second (stable) / 10 times per second (unstable) |
| Counting Mode Sample Size | 10, 25, 50 or 100 pieces |
| Percent Mode min. 100% display | 0.01%, 0.1%, 1% (automatically switches depending on reference mass stored) |
| External Dimensions (W x D x H), column horizontal | 37.2 x 61.5 x 13.0cm / 14.65 x 24.21 x 5.12" |
| Height with column vertical | 65.2cm / 25.67" |
| Net Weight | 17 kg / 37.5 lbs |
