SKU
GX-1000
  • $2,430.00
  • $3,240.00 You Save 25.00%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

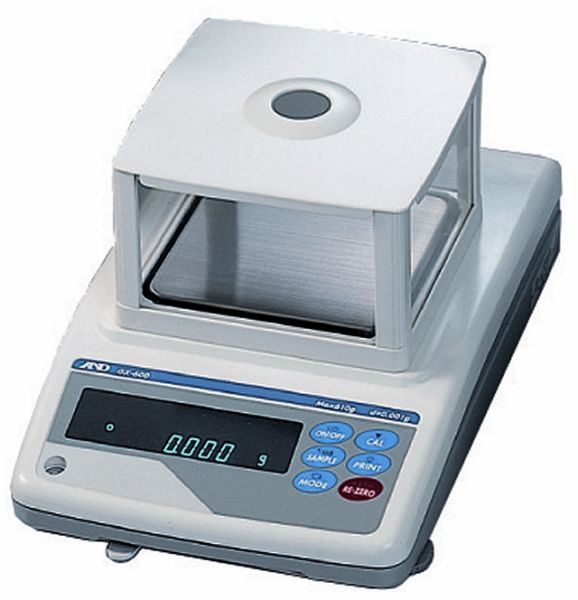

The GX Series is so complete that we call it "The World's Most User Friendly Balance". It has Automatin Calibration standard and is produced as a single-size, low-profile, esthetically pleasing instrument.

  • Fast, Super Hybrid Sensor (SHS) gives you the ultimate in response speed
  • One Second Response Time
  • Percentage, Counting Functions & Comparator functions
  • Large, bright Vacuum Fluorescent Display - see the display even in the dark
  • ACAI Counting Function for highly accurate counting
  • Internal Calibration Weight for quick, convenient calibration
  • Auto Environmental Compensation ensures the optimal performance of the device at all times
  • IP54 Splashproof Operator Keyboard protects against dust and spills, stainless steel weigh pan
  • Standard RS-232C bi-directional communication Windows compatible data collection software
  • GLP/GMP/ISO Compliant to either AD-8121 printer or computer
  • Auto Re-Zero Function after each weighment
  • Windows Compatible Data Collection Software
  • Interval Time Setting for automatic weighments at intervals from 1 second to 10 minutes
  • USB Compatible
  • 5 Year Warranty
Technical Specifications:
Capacity1100g
Readability0.001g
Pan Size5.04 x 5.04" / 128 x 128mm
Repeatability (Standard Deviation)0.001g
Linearity0.002g
Stabilization time (typical at FAST)Approx. 1 second
Sensitivity drift (10°C to 30°C / 50°F-80°F)2ppm/°C (When automatic self calibration is not used)
Operating temperature5°C to 40°C (41°F to 104°F), 85%RH or less (No condensation)
Sensing methodSuper Hybrid Sensor (SHS); SHS: Patent issued and pending
Display typeVacuum Fluorescent Display (VFD)
Display refresh rate5 times/second or 10 times/second
Counting modeMinimum unit mass: 0.001g
Number of samples: 10, 25, 50 or 100 pieces
Percent modeMinimum 100% reference mass: 0.1g
Minimum 100% display: 0.01%, 0.1%, 1% (Depends on reference mass stored)
Standard serial I/FRS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM)
CalibrationMotor-driven Internal Calibration
External dimensions (W x D x H)210 x 317 x 86mm / 8.27 x 12.48 x 3.39"
AC adapterConfirm that the adapter type is correct for the local voltage and power receptacle
Power consumptionApprox. 11VA (supplied by AC adapter)
Net weightApprox. 10.1lb / 4.6kg
