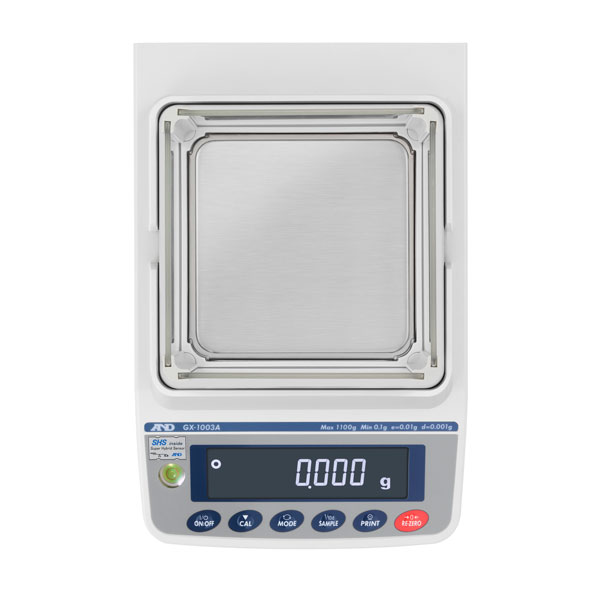

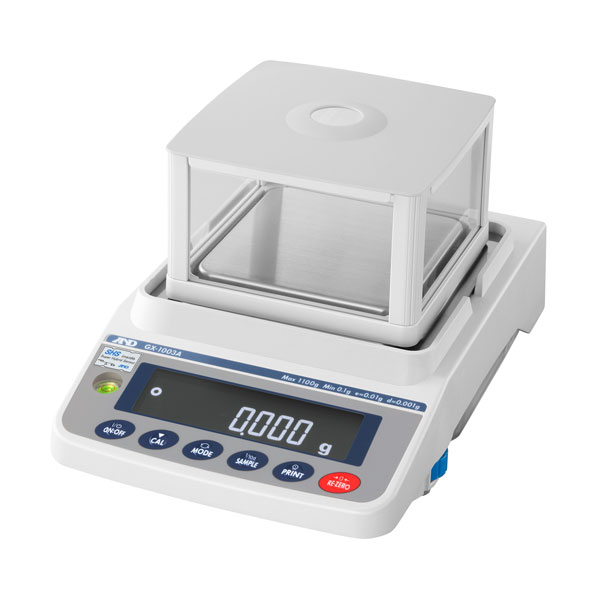

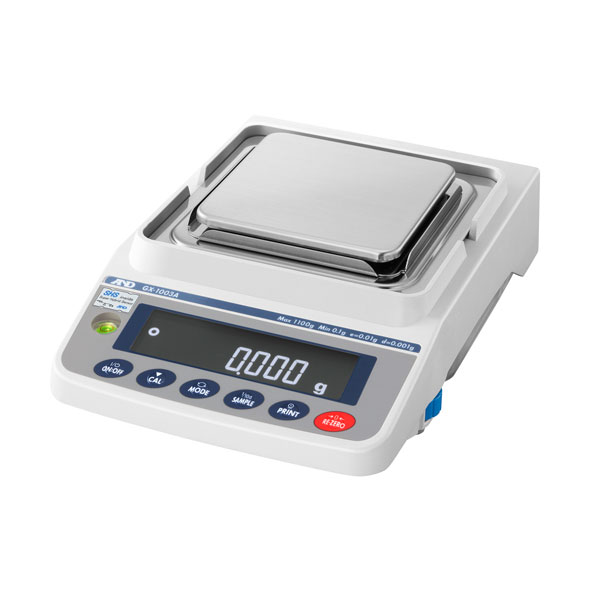

The A&D Apollo GX-603A precision balance with internal calibration has a 620 gram capacity with a 0.001 gram readability and has a 5 x 5 inch (128 x 128mm) pan. Introducing the newest edition to A&D Weighing, the Apollo GX-A/GF-A Series of Precision Balances. This series truly takes Precision and Protection to New Heights with a host of new features that not only streamline your weighing workflows but increase durability and security.
| Capacity | 620g |
|---|---|
| Readability | 0.001g |
| Pan size | 5 x 5 inches / 128 x 128 mm |
| Repeatability (std dev) | 0.001g |
| Linearity | ±0.002 g |
| Accuracy immed.following cal | ± 0.010 g |
| Stabilization time | Approx. 1 sec (approx 0.8 sec for 5 g) |
| Sensitivity drift | ±2 ppm / °C (10 °C to 30 °C / 50 °F to 86 °F, when automatic self-calibration is OFF) |
| Calibration wt | 50g, 100g, (100g interval), 600g (Internal) |
| Display | Reverse Backlit LCD (Character height: 17.8 mm) |
| Display refresh rate | 5 times / second, 10 times / second or 20 times / second |
| Units | g (gram), oz (ounces), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (specific gravity), and a user-programmable unit. |
| Counting mode, min unit mass | 0.001g |
| Counting mode, # of samples | 5, 10, 25, 50 or 100 pieces |
| Percent mode, min 100% ref mass | 0.001g |
| Percent mode, min 100% display | 0.01%, 0.1% or 1% (depends on the reference mass stored) |
| Operating environ ment | 5 °C to 40 °C / 41 °F to 104 °F, 85% R.H. or less (no condensation) |
| Power supply / consumption | AC adapter / approx. 30 VA |
| Communication interface | RS-232C and USB |
| Overall Dimensions (WxDxH) | 212 (W) x 317 (D) x 93 (H) mm / 8.3 (W) x 12.5 (D) x 3.7 (H) in |
| Net weight | Approx. 5 kg / 11 lb |
| Shipping Weight | 14.3 lbs / 13 x 17 x 11 inches |
