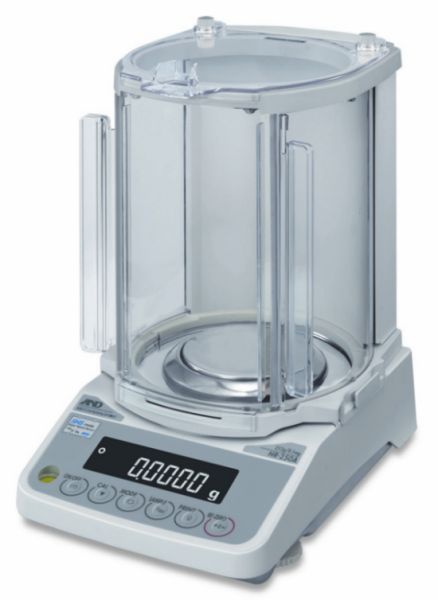

The Veritas HR-100A analytical balance is a precision weighing instrument designed for laboratories, research facilities, and industrial applications requiring highly accurate measurements. With a 102g capacity and 0.1mg readability, this model ensures stability and repeatability in every measurement. The electromagnetic force restoration technology provides exceptional precision, while the automatic internal calibration system maintains accuracy over time. The compact and space-saving design makes it a convenient option for labs with limited bench space. A backlit LCD display ensures easy readability, and an enclosed draft shield minimizes external disturbances. Whether used for scientific research, pharmaceutical formulation, or quality control, this analytical balance delivers reliable performance. Analytical balances like the HR-100A are essential for professionals who demand the highest levels of accuracy.
Capacity | 102g |
---|---|
Readability | 0.1mg |
Pan Size | Ø 90mm / 3.54" |
Minimum weighing value | 0.1 mg |
Repeatability (Standard Deviation) | 0.1 mg |
Linearity | ±0.2 mg |
Stabilization time (when set to FAST under good environment conditions) | Approx. 2 seconds (factory setting is MID, whose stabilization time is approx. 3 seconds) |
Sensitivity drift | ±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
Calibration | External |
Operating environment | 5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
Display refresh rate | 5 times/second or 10 times/second, selectable |
Display mode (units of measure) | g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions |
Capacity vs readability (Other units of measure) | 3.59 oz x 0.00001 oz 3.27 ozt x 0.00001 ozt 510 ct x 0.001 ct 65.5 dwt x 0.0001 dwt 27.2 mom x 0.0001 mom 1574 GN x 0.002 GN |
Counting mode | Minimum unit mass: 0.1 mg Number of samples: 10, 25, 50, or 100 pieces |
Percent mode | Minimum 100% reference mass: 10.0 mg Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored) |
Interface | RS-232C standard (see also options below) |
Applicable calibration weight values (g) | 100, 50 |
External dimensions | 198 (W) x 294 (D) x 315 (H) mm / 8 (W) x 12 (D) x 12.4 (H) in |
Net weight | 3.5 kg / 7.8 lbs |
Power supply | AC adapter |
Power consumption | Approx. 11 VA (supplied by the AC adapter) |
Ideal for:
Frequently Asked Questions:
Q: How does the HR-100A maintain accuracy over time?
A: The automatic internal calibration system adjusts for temperature fluctuations and other environmental factors.
Q: Can this balance connect to external devices for data transfer?
A: Yes, it includes standard connectivity options for easy integration with lab software.
Q: What is the advantage of the draft shield?
A: It minimizes the impact of airflow and static, ensuring stable and repeatable measurements.
