DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

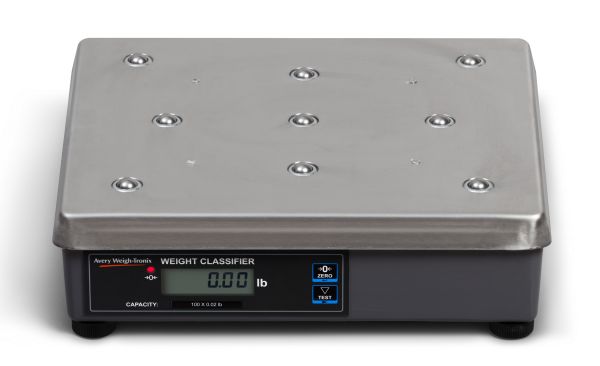

The Avery Weigh-Tronix 7820-100-BT shipping scale has a capacity of 100 pounds with a readability of 0.02 pound and a 12 x 14 inch (Ball-Top) pan and is NTEP legal for trade. The 7820 durable 12” x 14” Bench Scale provides a fast accurate weight reading that fits into any operation as a stand-alone scale, interfaced to a shipping manifest software or receiving station.
Designed with a hard wearing stainless steel weight platter and a rugged aluminum die cast housing and load bridge that offers outstanding protect to the centrally mounted aluminum analog load cell.
Supplied with a built-in, flush-fitting, six digit ½” high LCD display that is mounted in the front face of the base. An optional second remote display can be plugged in to give a customer facing weight reading.
A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party post, mail and shipping software programs or host devices. This will be communicated through either a serial RS232, USB (HID) or USB (VCP) port found on the rear of the base.
| Capacity | 100 lbs |
|---|---|
| Readability | 0.02 lb |
| Pan Size | 12 x 14" (Ball-Top) |
| Connectivity | 1 x RS232 (9 way female D Type connector ) 1 x USB HID (Mini USB) or 1x USB VCP (USB-Type B) 1 x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base |
| Supported Protocols | Standard NCI default with field configurable settings of 8213, 3835, SMA, with Auto Weight Send (2400 – 19.2K baud range) Transmits weight and scale status whenever ASCII “W” <CR> is sent by a remote device. |
| Display Type | Flush fitting six digit, ½" high LCD display Optional 2nd remote Six digit ½” high LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scales base |
| Number of Displays Allowed | 2 (1 standard, 1 remote display optional) |
| Display Bracket Options | Optional 12” high pole mounted display bracket |
| Remote Display Housing Sizes | 8” x 3” x 1.5” |
| Operational Keys | ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scale is fully functional and allows a real-time view of internal settings |
| Units of Measure | lb or kg (lb default) |
| Incremental Selections | Multiples and sub-multiples of 1, 2, 5 |
| Configurable Selections | Capacity, resolution, filters, baud rates, protocols, auto printout, scale or post classifier Default configuration is as postal weight classifier |
| Base Capacity | 100 x 0.02 lbs (50 x 0.01 kg) |
| Base Size | 12” x 14” x 4.5” (305mm x 357mm 114mm) |
| Base Construction | Rugged with powder coated die cast aluminum housing and load bridge, housing a aluminum NTEP approved analog load cell |
| Top Pan Construction | Stainless steel weight platter |
| Ball Top Weight Platter | Stainless steel, using 9 roller balls to simplify handling and transport of all parcels. One piece lift-off design for easy field retrofitting |
| Feet | Lockable adjustable feet, 1” diameter with up to 1” of height adjustment |
| Power | 120 VAC (+10% -15%), 60 Hz, standard 3-wire ground |
| Operating Environment | Temperature: 42°F to 104°F (5°C to 40°C) Relative Humidity: 10 to 95% (non-condensing) |
| Calibration | 2 point calibration process (zero and span capacity) Field calibration can be carried out by using less than full capacity weights Gravity compensation to allow the local gravity to be entered for where the scale is to be used |
| Internal Resolution | 1 part in 120,000 |
| Filtering | Fast or Slow |
| Self-Diagnostics | 2 level diagnostics: front panel display test or full service diagnostics. (Display, RAM, ROM, input/output & high resolution x10 division test) |
| Pole Mount | 12” high pole indicator stand, to allow easy viewing of the remote indicator |
| Certifications | NTEP approved for use in Class III operations, CC 95-070 Canada Weights and Measures approval CC # AM-5076 Rev 4 |
