Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

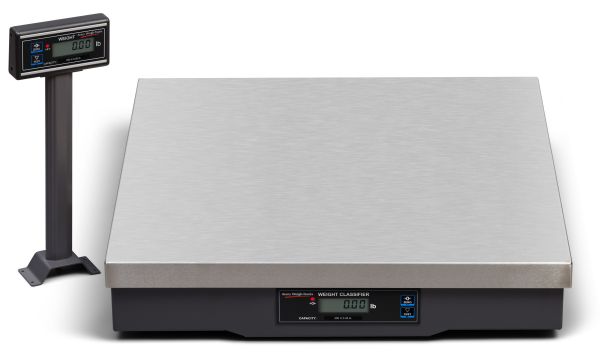

The Avery Weigh-Tronix 7824-250 shipping scale has a capacity of 250 pounds with a readability of 0.05 pound and a 24 x 24 inch pan and is NTEP legal for trade. The 7824 durable 24" x 24" Bench Scale provides a fast, accurate weight reading ideal for accommodating heavy, oversize parcels or containers found in busy post, mail and shipping rooms.
Designed with a hard wearing stainless steel weight platter and a rugged powder coated carbon steel base housing that helps to fully protect the centrally mounted aluminum analog load cell from damage.
Supplied with a built-in, flush-fitting, six digit 1/2" high LCD display that is mounted centrally in the front face of the base.
An optional second remote display can be plugged in to give a customer facing weight reading.
A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party post, mail and shipping software programs or host devices. This will be communicated through either a serial RS232, USB (HID) or USB (VCP) port found on the rear of the base.

  • Large 24 x 24 inch pan
  • Integrates with UPS Worldship and FedEx Ship Manager Software
  • Standard NCI default protocols
  • Pounds (default), Kilograms (factory set)
  • RS232, Mini USB and standard USB (type b) connectivity
  • Optional ball top
  • Optional remote pole display
  • Powder coated carbon steel base
  • NTEP certified legal for trade
  • 2 year warranty
Technical Specifications:
Capacity250 lbs
Readability0.05 lb
Pan Size24 x 24"
Connectivity1 x RS232 (9 way female D Type connector )
1 x USB HID (Mini USB) or 1x USB VCP (USB-Type B)
1 x 2nd Remote display connection (RJ 45)
All are positioned on the rear of the base
Supported ProtocolsStandard NCI default with field configurable settings of 8213, 3835, SMA,
with Auto Weight Send (1200 – 19.2K baud range) Transmits weight and scale
status whenever ASCII “W” <CR> is sent by a remote device.
Display TypeFlush fitting six digit, ½” high LCD display
Optional 2nd remote six digit, ½” high LCD display housed
in an extruded enclosure with a 7 foot cable, connected via RJ 45
connector on the rear of the scales base
Number of Displays Allowed2 (1 standard, 1 remote display optional)
Display Bracket OptionsOptional 12” high pole mounted display bracket
Remote Display Housing Sizes8” x 3” x 1.5”
Operational KeysZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference.
TEST: Runs a diagnostic test to ensure scale is fully functional and allows a real-time view of internal settings
Units of Measurelb or kg (lb default)
Incremental SelectionsMultiples and sub-multiples of 1, 2, 5
Configurable SelectionsCapacity, resolution, lb or kg, filters, baud rates, protocols, auto printout, scale or post classifier
Default configuration is as postal weight classifier
Base Capacity250 x 0.05 lb (100 x 0.02 kg)
Base Size24” x 24” x 4.5” (610mm x 610mm 114mm)
Base ConstructionDurabridge® design with powder coated carbon steel base housing
and aluminum NTEP approved analog load cell
Duarabridge Technology helps reduces overall scale deflection when a full load is applied
Top Pan ConstructionStainless steel weight platter
Optional: Ball top weight platter (48 ball)
Ball Top Weight PlatterStainless steel, using 48 roller balls to simplify handling and transport of all parcels.
One piece lift-off design for easy field retrofitting
FeetLockable adjustable feet, 1” diameter with up to 1” of height adjustment
Power120 VAC (+10% -15%), 60 Hz, standard 3-wire ground
Operating EnvironmentTemperature: 42°F to 104°F (5°C to 40°C)
Relative Humidity: 10 to 95% (non-condensing)
Calibration2 point calibration process (zero and span capacity)
Field calibration can be carried out by using less than full capacity weights
Gravity compensation to allow the local gravity to be entered for where the scale is to be used
Internal Resolution1 part in 120,000
FilteringFast or Slow
Self-Diagnostics2 level diagnostics: front panel display test or full service diagnostics.
(Display, RAM, ROM, input/output & high resolution x10 division test)
Pole MountOptional 12” high pole indicator stand, to allow easy viewing of the remote indicator
CertificationsNTEP approved for use in Class III operations, CC 95-121
Canada Weights and Measures approval CC # AM-5099 Rev 1
