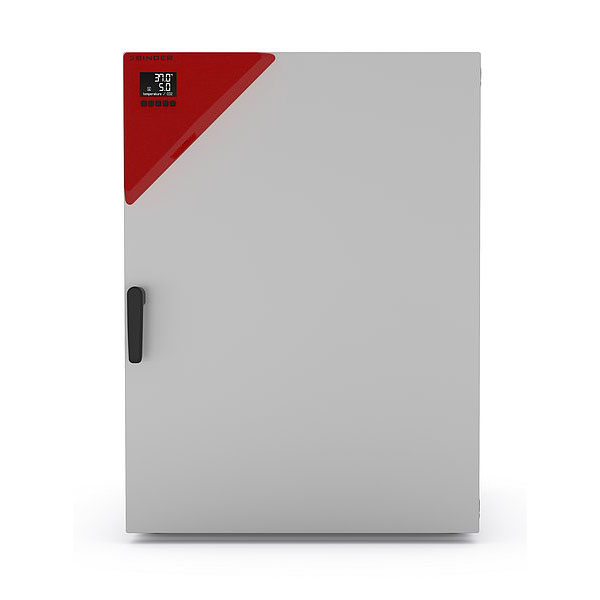

The BINDER CBF260UL-120V-O CO2 incubator has a capacity of 9.4 Cu Ft (267 L) with a temperature range of Ambient +6° to 60°C and a humidity range 0 to 20% and requires 0 to 95% power. The BINDER CBF is the high-end CO2 incubator with humidity control that is suitable for all sensitive incubation applications in GMP environments. It ensures consistent results including in cell-based assays with multiwell plates. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.
Interior Volume | 9.4 Cu Ft (267 L) |
---|---|
Temperature Range | Ambient +6° to 60°C |
Temperature variation at 37 °C [± K] | 0.4°C |
Temperature fluctuation at 37 °C [± K] | 0.1°C |
Recovery time after 30 seconds door open at 37 °C [min] | 6 minutes |
Humidity range [% RH] | 90 to 95% RH |
CO2 range [Vol.-% CO2] | 0 to 20% |
CO2 measurement | IR |
CO2 Recovery time after 30 seconds door open at 5 Vol.-%CO22 [min] | 5 minutes |
O2 Range [Vol-% O2 | 10 - 95 |
O2 Recovery tiem after 30 seconds door open at 10 Vol.-% O2 | 12 minutes |
O2 Recovery tiem after 30 seconds door open at 5 Vol.-% O2 | 22.06 inches |
Chamber Width | 24.43 inches |
Chamber Height | 29.55 inches |
Chamber Depth | 22.65 inches |
Overall Width | 29.16 inches |
Overall Height | 40.2 inches |
Overall Depth | 30.93 inches |
Wall clearance back | 3.94 inches |
Wall clearance sidewise | 1.97 inches |
Inner doors | 6 |
Unit doors | 1 |

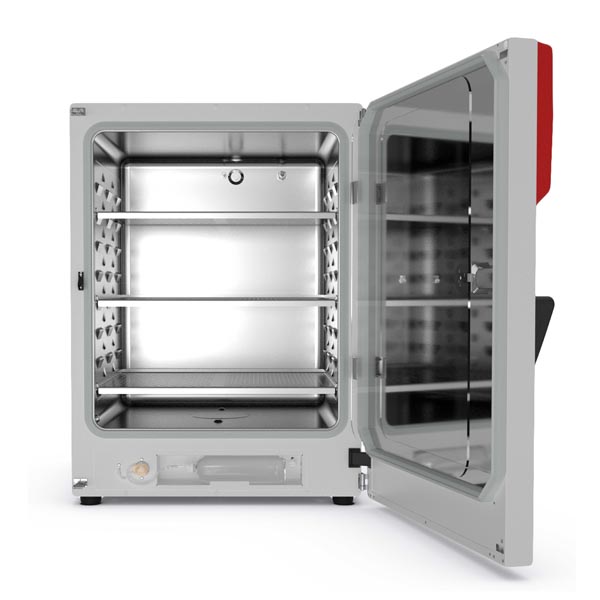

Number of shelves | 3 standard, 6 maximum |
Net weight of the unit (empty) | 276 lbs |
permitted load | 88 lbs |
Load per rack | 22 lbs |
Rated Voltage | 100 - 120V |
Power frequency | 50/60 Hz |
Nominal power | 1.5 kW |
Unit fuse | 16 A |
Phase (Nominal voltage) | 1 phase |
Energy consumption at 37 °C | 55 Wh/h |
Sound-pressure level | 41 |
