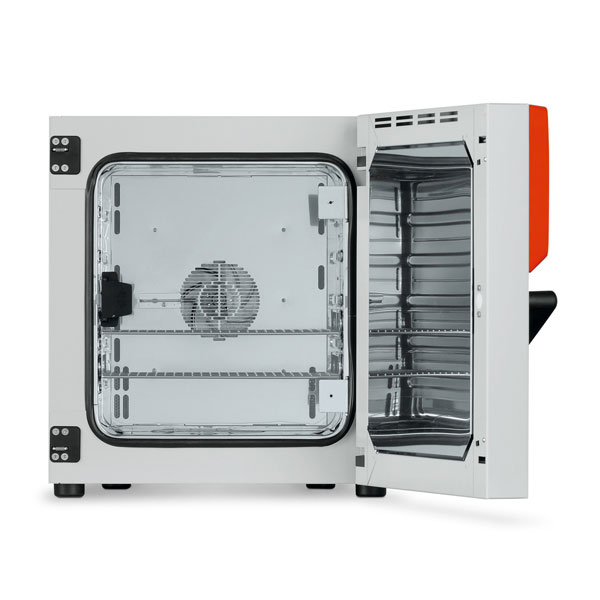

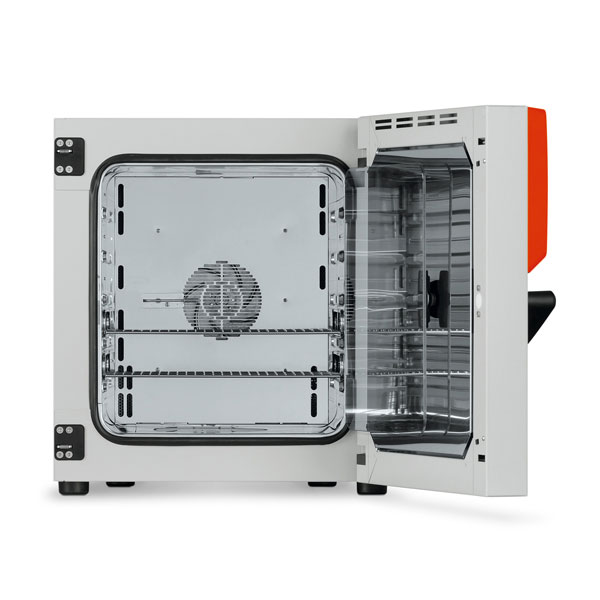

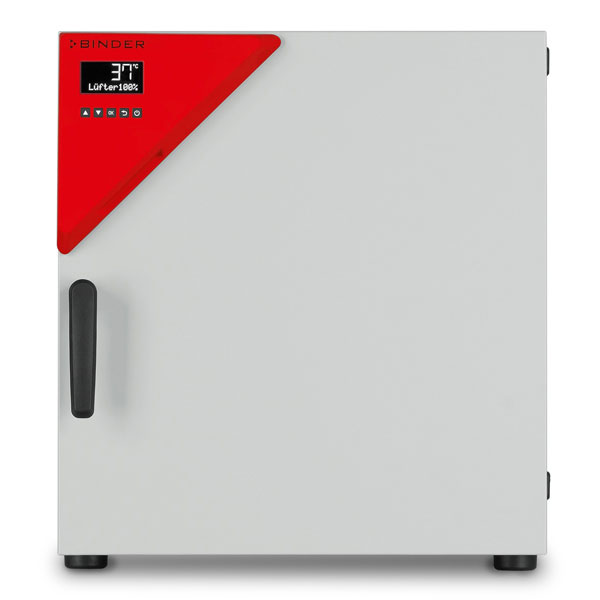

The BINDER BF 56 (version BF056UL-120V), Avantgarde.Line Forced Convection incubator has a capacity of 2.1 Cu Ft (59 L) and a temperature range +7° to 100°C and requires 120V power. The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.
| Temperature range 7 °C above ambient temperature to [°C] | 100 |
|---|---|
| Temperature variation at 37 °C [± K] | 0.2 |
| Temperature fluctuation at 37 °C [± K] | 0.1 |
| Heating-up time to 37 °C [min] | 6 |
| Recovery time after 30 seconds door open at 37 °C [min] | 3 |
| Rated Voltage [V] | 120 |
| Power frequency [Hz] | 60 |
| Nominal power [kW] | 0.4 |
| Unit fuse [A] | 12.5 |
| Phase (Nominal voltage) | 1~ |
| Overall Width [in] | 22.06 |
| Overall Height [in] | 24.63 |
| Overall Depth [in] | 22.26 |
| Wall clearance back [in] | 6.3 |
| Wall clearance sidewise [in] | 3.94 |
| Unit doors | 1 |
| Chamber Width [in] | 15.76 |
| Chamber Height [in] | 17.34 |
| Chamber Depth [in] | 13.4 |
| Interior volume [cu.ft.] | 2.1 |
| Net weight of the unit (empty) [lbs] | 84 |
| permitted load [lbs] | 154 |
| Load per rack [lbs] | 66 |
| Energy consumption at 37 °C [Wh/h] | 55 |
| Sound-pressure level [dB(A)] | 43 |
| Number of shelves (std./max.) | 2/4 |
