SKU
CB220UL-120V-GO
  • $16,218.10
  • $18,535.00 You Save 12.50%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

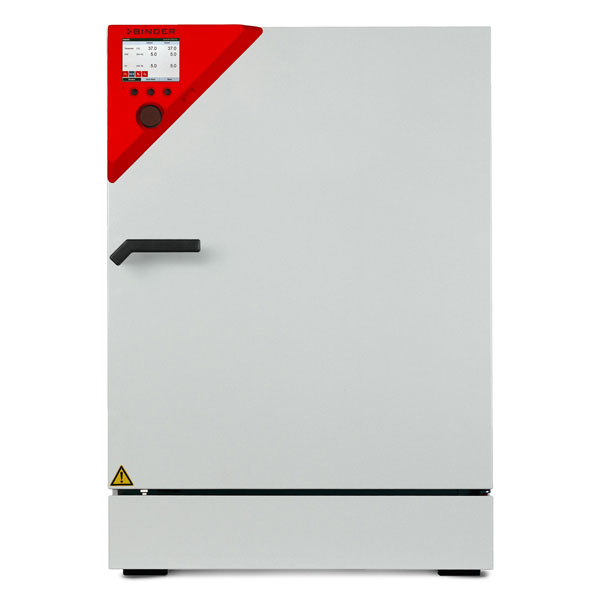

The BINDER CB 220 (version CB220UL-120V-GO), CO2 incubator has a capacity of 7.4 Cu Ft (210 L) and a temperature range +7° to 60°C and requires 120V power. The BINDER CB series CO2 incubator is the premium class among the CO2 incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth. A BINDER CB series CO2 incubator can perform complex cultivation experiments as well as specific environmental conditions.

  • Alternative O2 control ranges: 0.2-20 vol. % O2 or 10-95 vol. % O2 (O, GO versions)
  • Auto-sterilization with hot air at 180 °C
  • Double-pan humidification system with condensation protection
  • CO2 gas-mixing jet with Venturi effect
  • Hot-air sterilizable CO2 sensor with infrared technology
  • Display via color LCD monitor
  • Lockable door handle
  • Tightly-sealed inner door made of tempered safety glass
  • Seamless, deep-drawn inner stainless steel chamber
  • 2/3 perforated stainless steel shelves
  • Units are stackable with stacking adapter
  • Troubleshooting system with visual and audible alarms
  • Computer interface: Ethernet
  • Internal data recording and USB interface
  • Zero-voltage alarm contact
Technical Specifications:
Temperature range 7 °C above ambient temperature to [°C]60
Temperature variation at 37 °C [± K]0.4
Temperature fluctuation at 37 °C [± K]0.1
Recovery time after 30 seconds door open at 37 °C [min]5
Humidity range [% RH]90 - 95
CO2 range [Vol.-% CO2]0 - 20
CO2 measurementIR
Standard O2 control ranges: O2 range [Vol.-% O2]0.2 - 20
Rated Voltage [V]100 - 120
Power frequency [Hz]50/60
Nominal power [kW]1.5
Unit fuse [A]16
Phase (Nominal voltage)1~
Overall Width [in]29.16
Overall Height [in]42.2
Overall Depth [in]28.17
Wall clearance back [in]3.94
Wall clearance sidewise [in]1.97
Inner doors6
Unit doors1
Chamber Width [in]22.06
Chamber Height [in]29.55
Chamber Depth [in]19.7
Interior volume [cu.ft.]7.4
Net weight of the unit (empty) [lbs]291
permitted load [lbs]66
Load per rack [lbs]22
Energy consumption at 37 °C [Wh/h]120
Number of shelves (std./max.)3/3
