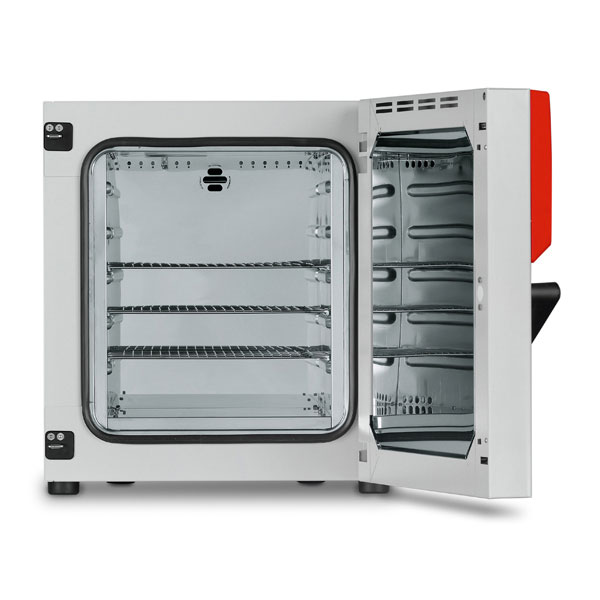

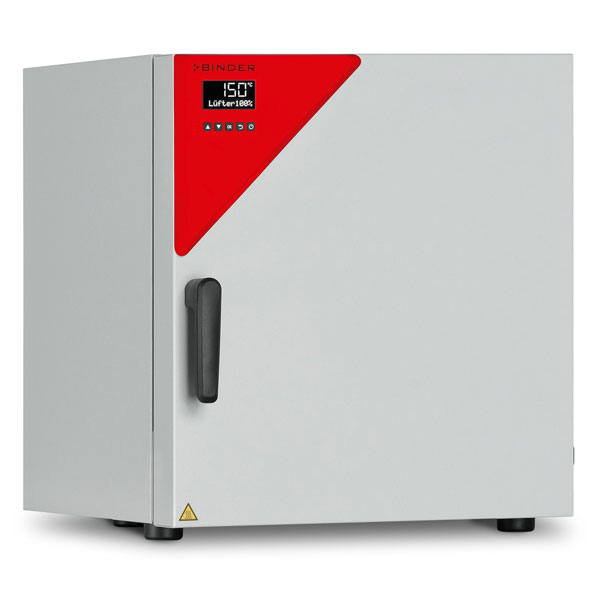

The BINDER ED 56 (version ED056UL-120V), Avantgarde.Line Gravity Convection drying and heating chamber has a capacity of 2 Cu Ft (57 L) and a temperature range ambient +5° to 300°C and requires 120V power. The strengths of a BINDER ED series Avantgarde.Line drying chamber include routine drying and sterilization tasks up to 300°C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
| Temperature range 5 °C above ambient temperature to [°C] | 300 |
|---|---|
| Temperature variation at 150 °C [± K] | 2.3 |
| Temperature fluctuation at 150 °C [± K] | 0.4 |
| Heating-up time to 150 °C [min] | 50 |
| Recovery time after 30 seconds door open at 150 °C [min] | 19 |
| Rated Voltage [V] | 120 |
| Power frequency [Hz] | 60 |
| Nominal power [kW] | 1.15 |
| Unit fuse [A] | 12.5 |
| Phase (Nominal voltage) | 1~ |
| Overall Width [in] | 22.06 |
| Overall Height [in] | 24.63 |
| Overall Depth [in] | 22.26 |
| Wall clearance back [in] | 6.3 |
| Wall clearance sidewise [in] | 3.94 |
| Unit doors | 1 |
| Chamber Width [in] | 14.18 |
| Chamber Height [in] | 16.55 |
| Chamber Depth [in] | 14.97 |
| Interior volume [cu.ft.] | 2 |
| Net weight of the unit (empty) [lbs] | 86 |
| permitted load [lbs] | 154 |
| Load per rack [lbs] | 66 |
| Energy consumption at 150 °C [Wh/h] | 180 |
| Number of shelves (std./max.) | 2/4 |
