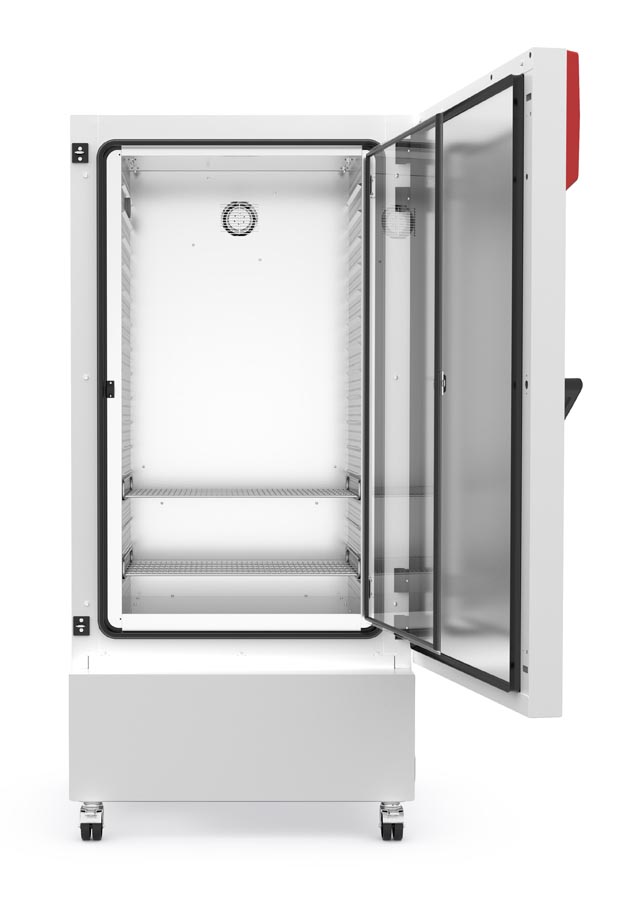

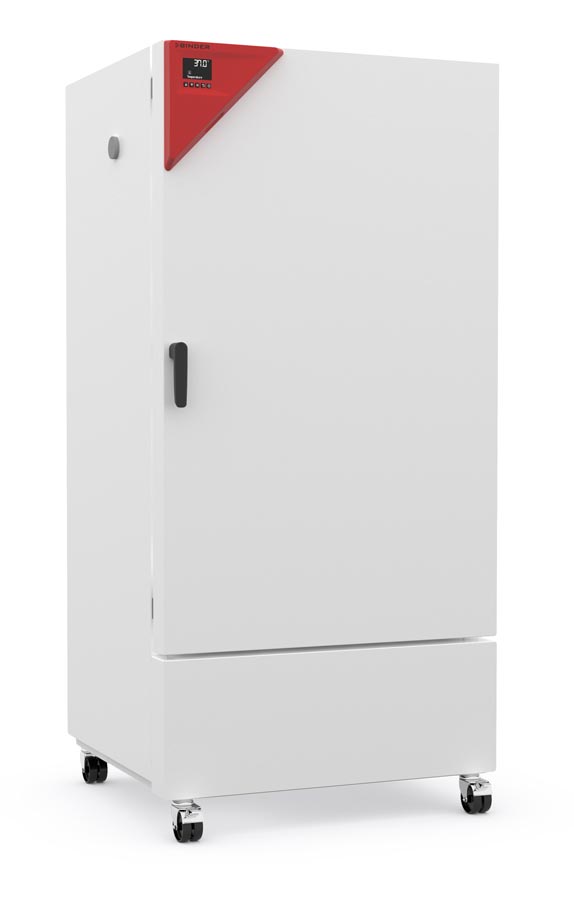

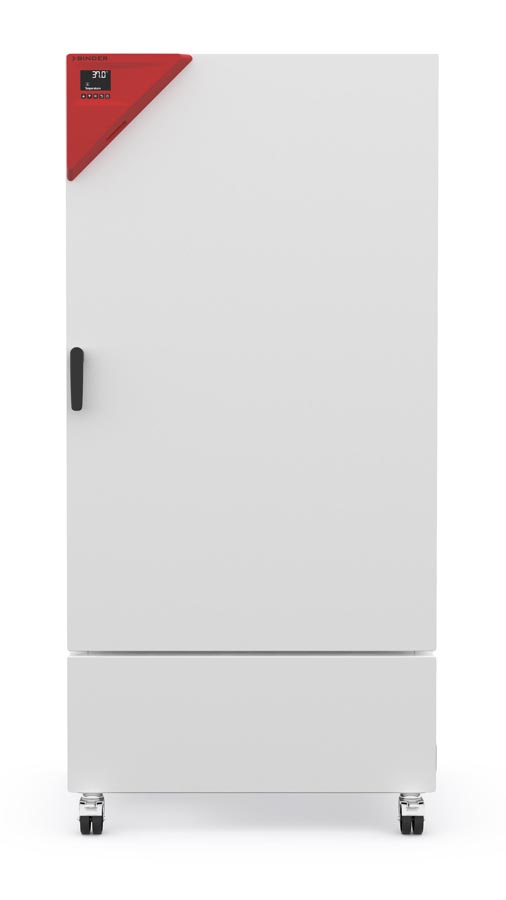

The BINDER KB ECO 400 refrigerated incubator has a capacity of 14.1 Cu Ft (400 liters) with a temperature range of 0° to 70°C and requires 120 Volt power. Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-efficient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.
| Temperature range (max. 28°C under ambient temperature) [°C] | 0 - 70 |
|---|---|
| Temperature variation at 37°C [± K] | 0.1 |
| Temperature fluctuation at 37°C [± K] | 0.1 |
| Max. heat compensation at 40°C [W] | 350 |
| Recovery time after 30 seconds door open at 37°C [min] | 6 |
| Rated Voltage [V] | 100 - 120 |
| Power frequency [Hz] | 50/60 |
| Nominal power [kW] | 1.2 |
| Unit fuse [A] | 16 |
| Phase (Nominal voltage) | 1~ |
| Interior volume [cu ft] | 14.1 |
| Net weight of the unit (empty) [lbs] | 432 |
| Permitted load [lbs] | 265 |
| Load per rack [lbs] | 66 |
| Wall clearance back [in] | 3.94 |
| Wall clearance sidewise [in] | 3.94 |
| Width [in] | 25.61 |
| Height [in] | 50 |
| Depth [in] | 19.11 |
| Inner doors | 1 |
| Unit doors | 1 |
| Width net [in] | 36.45 |
| Height net [in] | 76.7 |
| Depth net [in] | 31.36 |
| Energy consumption at 37°C and 75 % RH [Wh/h] | 70 |
| Sound-pressure level [dB(A)] | 43 |
| Number of shelves (std./max.) | 2/15 |
