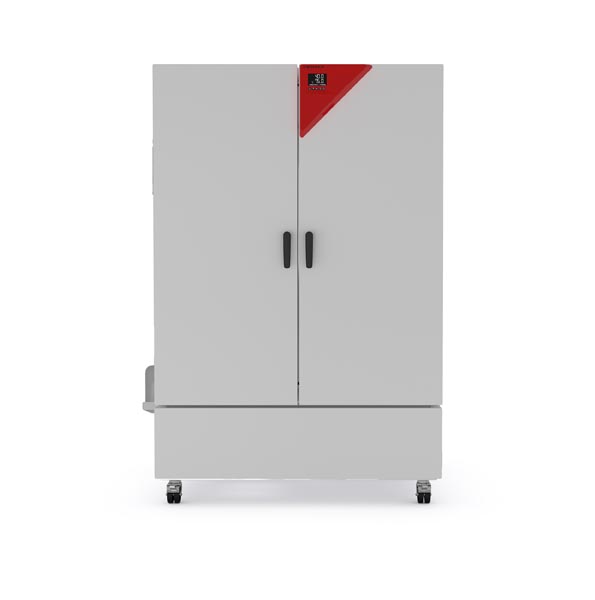

BINDER KBF-S ECO 1020 (KBFSECO1020UL-120V) (9020-0422) Humidity Test Chamber with Peltier Technology, 36 Cu Ft

Request a Quote Email a Friend Add to Favorites
SKU
KBFSECO1020UL-120V
  • $23,109.20
  • $26,802.00 You Save 13.78%

Description

The BINDER KBF-S ECO 1020 (KBFSECO1020UL-120V), humidity test chamber has a capacity of 36 Cu Ft (1020 L) with a temperature range of 0° to 70°C and a humidity range 20% to 80% RH and requires 100 to 120 volt (50/60 Hz) power. Thanks to thermoelectric cooling technology with patented heat dissipation, the new Binder KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
  • Important characteristics
  • Temperature range: 0°C to +70°C (max. 24°C under ambient temperature)
  • Humidity range: 10% to 80% RH
  • APT.line™ preheating chamber technology
  • Independent water supply via tank
  • LCD to display temperature and humidity along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Inner chamber made completely of stainless steel
  • 2 stainless steel racks, including shelf carrier
  • Access port with silicone plug Ø 30 mm, left
Technical Specifications:
Temperature range (max. 24°C unter Umgebungstemperatur) [°C]0 - 70
Temperature variation at 40°C [± K]0.5
Temperature fluctuation at 40°C [± K]0.1
Max. heat compensation at 40°C [W]400
Temperature range (max. 24°C unter Umgebungstemperatur) [°C]5 - 70
Temperature variation at 25°C and 60 % RH [± K]0.1
Temperature variation at 40°C and 75 % RH [± K]0.5
Temperature fluctuation at 25°C and 60 % RH [± K]0.1
Temperature fluctuation at 40°C and 75 % RH [± K]0.1
Humidity range [% RH]10 - 80
Humidity fluctuation at 25°C and 60 % RH0.4 % RH
Humidity fluctuation at 40°C and 75 % RH0.4 % RH
Recovery time after 30 seconds door open at 25°C and 60 % RH [min]5
Recovery time after 30 seconds door open at 40°C and 75 % RH [min]15
Rated Voltage [V]100 - 120
Power frequency [Hz]50/60
Nominal power [kW]1.2
Unit fuse [A]16
Phase (Nominal voltage)1~
Interior volume [cu ft]36
Net weight of the unit (empty) [lbs]710
Permitted load [lbs]331
Load per rack [lbs]99
Wall clearance back [in]3.94
Wall clearance sidewise [in]11.82
Width [in]38.45
Height [in]49.3
Depth [in]32.94
Unit doors2
Width net [in]49.4
Height net [in]75.9
Depth net [in]45.2
Energy consumption at 40°C and 75 % RH [Wh/h]135
Sound-pressure level [dB(A)]49
Number of shelves (std./max.)2/15
