BINDER Vacuum Ovens

Showing 1 - 6 of 6 results
Model #:
CapacityReadabilityPan Size
Price
Quantity

BINDER Series VD Vacuum Drying Chambers for Non-Flammable Solvents

BINDER's VD series vacuum drying chambers while deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also ensures optimal heat transfer. The shelves provide flexible placement and are easy to dry in the interior of the chamber.

  • Fast, gentle drying
  • Optimum heat transfer through large thermal conducting plates
  • Safe work thanks to proven safety concept
  • Also option of modular complete system with vacuum pump and pump chamber
  • Temperature range: ambient temperature +9°C to +220°C
  • Controller with digital display of pressure and temperature
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Internal data logger, measured values can be read out in open format via USB
  • 1 aluminum expansion rack, can be custom-positioned
  • Inert gas connection
  • Shatterproof, spring-mounted safety glass panel
  • Large viewing window with option of interior lighting
  • Computer interface: Ethernet
  • 2 relay outputs, 24 V DC (max. 0.4 A)

SKU:
VolumeTemperature RangeElectrical
Price
Quantity

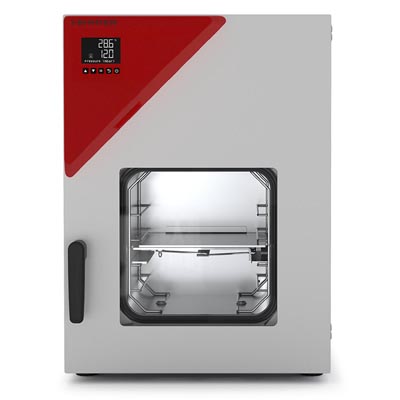

VD023UL-120V 0.8 Cu Ft (23 L)+9° to 220°C120V
Your Price: $6,927.70

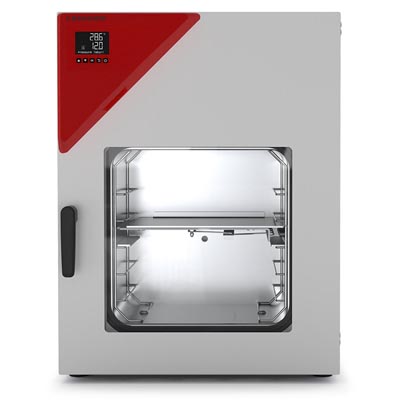

VD056UL-120V 1.9 Cu Ft (55 L)+9° to 220°C120V
Your Price: $8,732.30

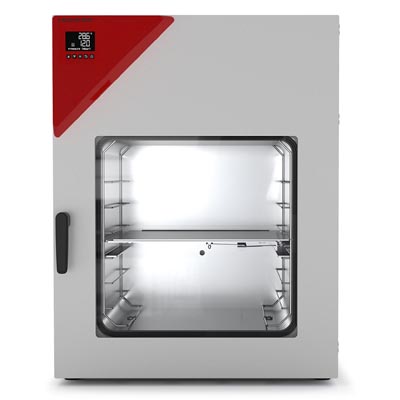

VD115UL-120V 4.1 Cu Ft (115 L)+9° to 220°C120V
Your Price: $10,854.50

BINDER Series VDL Vacuum Drying Chambers for Flammable Solvents

BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.

  • Fast, gentle drying
  • Optimum heat transfer through large thermal conducting plates
  • Safe work thanks to ATEX-compliant safety concept
  • Also option of modular complete system with vacuum pump and pump chamber
  • Temperature range: Ambient temperature +9°C to +110°C
  • ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
  • Intuitive touchscreen controller with graphical pressure and temperature display
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Internal data logger, measured values can be read out in open format via USB
  • Pressure control device for heating activated from < 100 mbar
  • 2 aluminum expansion racks, can be custom-positioned
  • Universal connection for ventilation with ambient air or inert gas
  • DN 16 universal access port with small flange and blind flange, for positioning sensors or supply lines in the chamber
  • Shatterproof, spring-mounted safety glass panel

SKU:
VolumeTemperature RangeElectrical
Price
Quantity

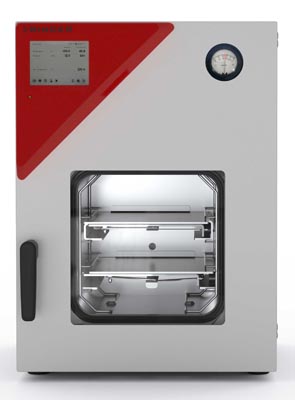

VDL023UL-120V 0.8 Cu Ft (23 L)+9° to 110°C120V
Your Price: $14,275.80

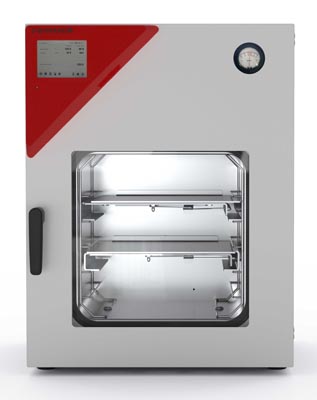

VDL056UL-120V 1.9 Cu Ft (55 L)+9° to 110°C120V
Your Price: $16,374.50

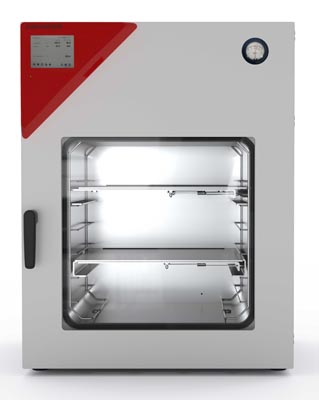

VDL115UL-120V 4.1 Cu Ft (115 L)+9° to 110°C120V
Your Price: $19,919.10
