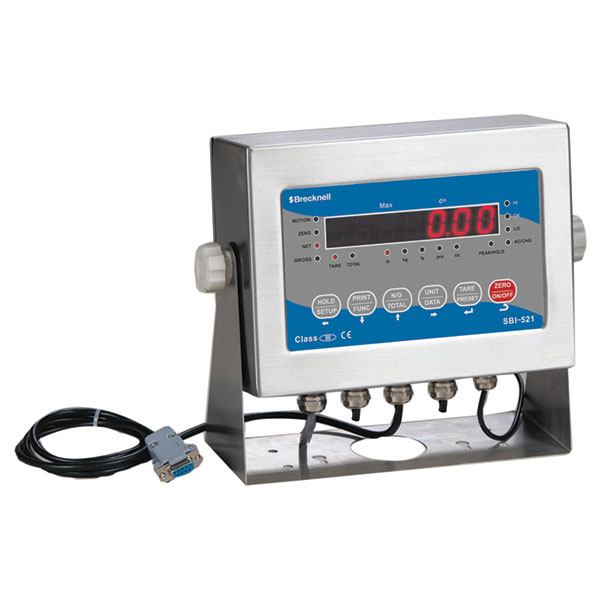

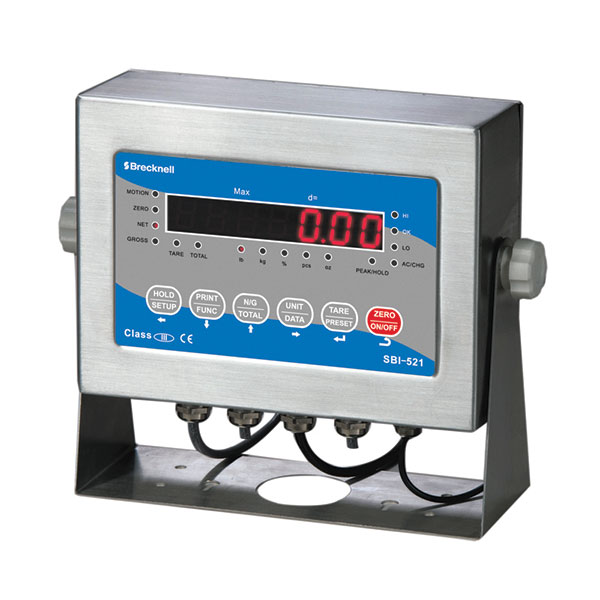

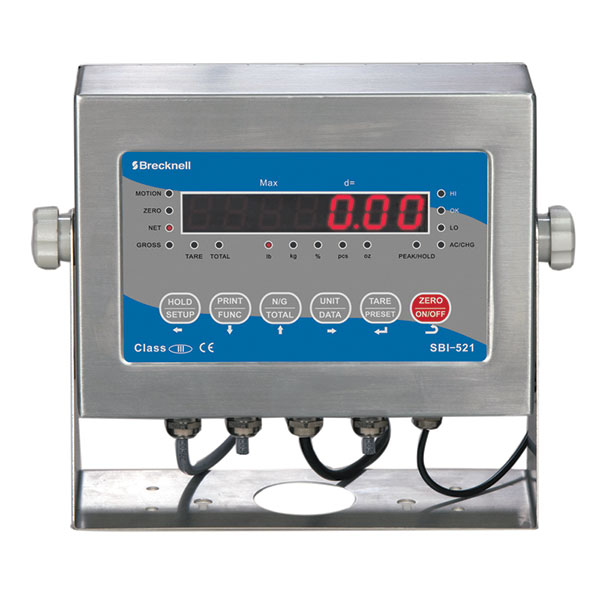

The Brecknell SBI-521 LED digital weight indicator has an LED display with a stainless steel housing and is NTEP approved. The Brecknell SBI-521 digital indicator is housed in a heavy duty stainless steel enclosure rated at IP65 and may be used in a wide variety of applications including bench, floor scale and check weighing.
| Units | lb, kg, lb:oz, PCS, % |
|---|---|
| Display | Seven digit, seven segment, 17mm / 0.7" LED (adjustable) |
| Features | Sealed sub menus, programmable auto-power off time, adjustable LED brightness, battery voltage display and charging indicator, fine tune weight adjustment, adjustable desktop stand for easy viewing angle |
| Calibration | 4 point |
| Functions | Check weighing, parts counting, percentage weighing, programmable hold function with peak and average capabilities |
| Menus | Test menus to test display, comm ports and keyboard Misc menu to display ADC, battery voltage, time and date, firmware version and Com2 interface type |
| Max Display Range | -999,999 to 999,999 |
| Construction | Heavy duty stainless steel IP65 with stainless steel swivel stand |
| Power | Input: 100 - 240 VAC, 50/60Hz internal mounted power supply Output: 12VDC at 2 amps an 4 AH internal battery with built-in battery charging circuit |
| Peak Capture Rate | 80Hz |
| Keypad | 6 push buttons: hold/setup, print/func, n-g/total, unit/data, tare/preset, zero/on-off |
| Load Cell Excitation | Voltage: 5 VDC, Max 120mA max current, can power 8 @ 350 ohm loadcells Max Sensitivity: -3 mv/V to +3mV/V |
| Analog Circuit | 24-bit A/D converter 100-100,000 division range |
| Communication | Serial Port 1: Full-duplex RS-232 Serial Port 2: full-duplex RS-232 or half-duplex RS-485 Baud Rate: Selectable - 1200, 2400, 9600, 19200, 38400, 57600 bps Data Output Format: 8N1, 7O1, 7E1 Protocol: Programmable Print Format: selectable gross weight, tare, net, time/date, scale ID, percent, count, piece weight, total |
| Filters | One hardware low pass filter and 2 programmable digital low pass filters |
| Real Clock | Built-in nonvolatiel real time & date |
| Approximate Battery Life | 30 hrs |
| Operating Temperature | 14°F to 104°F / -10°C to 40°C |
| Dimensions (L x W x H) | 3.5 x 10.5 x 3.5 inches / 89 x 267 x 216 mm |
| Shipping Dimensions (L x W x H) | 11 x 11 x 6.5 inches / 279 x 279 x 165 mm |
| Shipping Weight | 8 lbs (3.7 kg) |
| Certifications | NTEP CC# 11-119 Measurement Canada AM-5923 |
| Includes | Indicator and manual |
