DISCONTINUED, PLEASE CALL FOR ALTERNATIVES

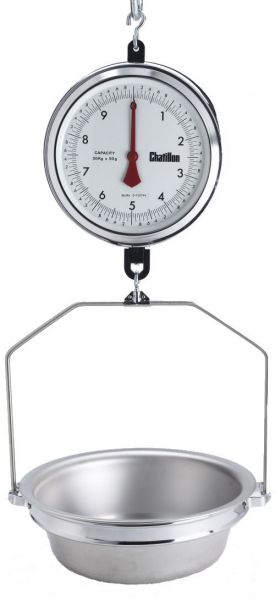

The CHATILLON® 4200 Series hanging scales are constructed of chrome-plated steel with machined stainless steel pinions for optimum durability. Available with single or double dial head, the 4200 Series features a large 9-inch dial in metric graduations. Tare up to 10% of the dial capacity. Capacity reached in 3 pointer revolutions.
| Capacity | 15 kg |
|---|---|
| Readability | 20 g |
| Pan Size | 14-1/2" x 5" |
| Dial | 9" Glass Covered Double Dial |
| Range(s) | 0-1kg/ 2-4kg / 5-8kg / 9-15kg |
| Scale Divisions | 0-50 / 51-200 / 201-400 /401 + |
| Tolerance (Weight) | ±10g / ±20g / ±30g / ±50g |
| Tolerance (Accuracy) | ±0.07% / ±0.13% / = ±0.20% / ±0.33% |
| Maximum Overload | 120% of Rated Capacity |
| Tare Capacity | 10% of Full Scale Capacity |
| Units | kg |
| Weight with AS Pan | 14 lbs (7kg) |
