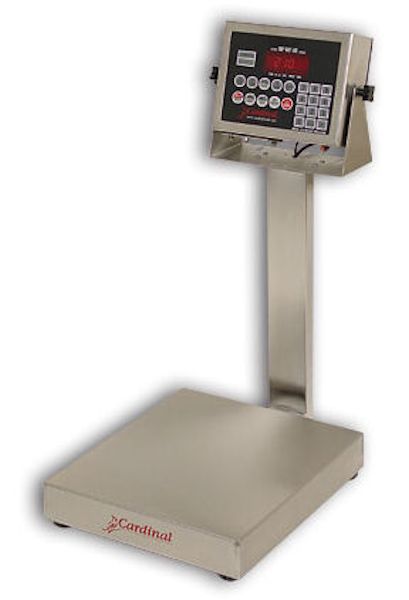

Simplicity of design and rugged construction are the key features of the EB-210 Series which come in a variety of capacities and platform sizes. At home around food and water, the simple frame and bridge design with lift-off platform simplifies cleanup by providing direct access to all of the components.
The LED display of the 210 indicator is perfect for indoor use and it combines all of the features of the 204 and 205 indicators, plus it has a numeric keypad, piece count, and over/under checkweighing. The NEMA 4X/IP66 stainless steel enclosure of the 210 indicator makes this scale useful in washdown situations. Push button tare, auto shutoff, AC or battery power, large LCD display, flexible print formats, pounds/kilograms conversion, RS232 output, and stainless steel construction make this powerful bench scale ready for top performance and long-term accuracy.
| Capacity | 15lbs / 6kg |
|---|---|
| Readability | 0.005lb / 0.005kg |
| Pan Size | 10 x 12" / 250 x 300mm |
| Indicator | Model 210 - 6-digit, 7-segment, 0.6" / 14mm high LED |
| Annunciators | Zero, gross, tare, net, low battery, stable, lb, oz, kg, g, t, T, PWC-1/under, PWC-2/accept, and PWC-3/over |
| Indicator Dimensions | 9 x 7 x 2.75" / 229 x 178 x 70mm |
| Indicator Housing | NEMA 4X/IP66 Stainless steel |
| Cover, Base, and Indicator Mount | Stainless steel |
| Units | Pounds, kilograms, ounces, grams, or pounds/kilograms |
| Indicator Keyboard | 22 keys |
| Power | 90 to 260 VAC, 50 or 60 Hz |
| Sample Rate | 1 - 50 sample per second, selectable |
| Resolution | 1 part in 100,000 displayed 1 part in 1,000,000 internal |
| I/O | 1 bidirectional RS232 (20mA) 1 output only RS232 (20mA) |
| Auto Zero Range | 0.5 or 1 to 9 graduations |
| Operating Temperature | 14° to 104° F / -10° to 40° C |
