Dillon AWT15-500844 Quick-Balance Elevator Cable Tension Meter

Email a Friend Add to Favorites

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

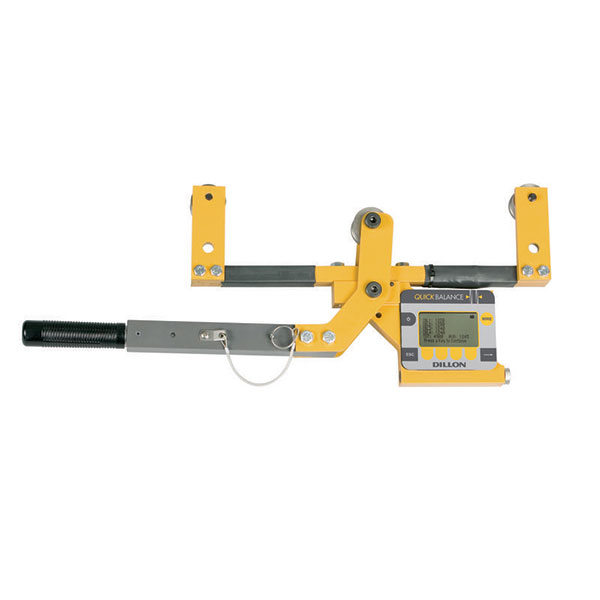

The Dillon Quick Balance tension meter quickly measures tension on elevator traction cables or other cable sets, recording individual readings, averages and total readings. Quick Balance installs, measures and removes in seconds, giving accurate digital readings up to 10,000 lbs. No lookup or correction tables required, and no need to write down readings for comparisons.

Quick Balance can be placed on a cable, measure its tension and removed in seconds! There are no complex lookup tables and no conversion charts. The operator can quickly select from different wire rope sizes and types stored in the Quick Balance memory. Once a set of measurements has been taken the operator can adjust various tensions in the check tensioning mode which displays both current and target setting of individual cables.

Quick Balance can be employed in many industries for the balancing of multiple line installations. Typical applications include elevators, tower and stack guy wire rope and crane rigging sets.

  • Significant labor and time savings
  • Safety improvement in measurement method
  • View and balance up to 16 lines in minutes
  • Measures total force quickly and easily
  • Default of three wire rope sizes (included) with the ability to add 5 more wire ropes

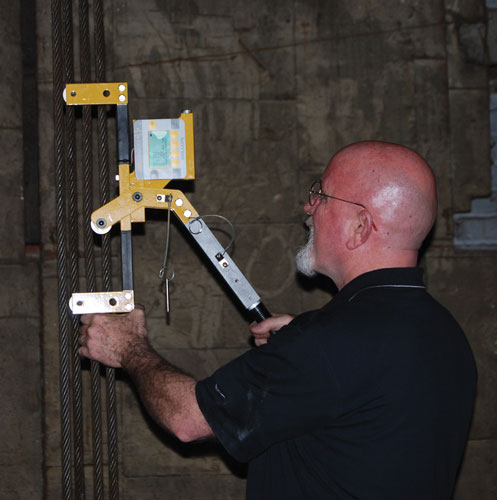

  • Elevator Inspections: Quickly balance wire ropes, measure total weight of car
  • Accommodates a wide range of wire rope sizes and styles
  • Highly visible yellow finish
  • Easy-to-read backlit display with full text prompts
  • Easy to use soft-key interface
  • Uses popular AA batteries and has long life between changes
Technical Specifications:
Tension capacities 10,000 lbf / 45 kN / 4,500 kg
Wire rope sizes and types 3⁄16" to 1" Possible
1⁄2" 8 x 19 Included
9⁄16" 8 x 19 Included
5⁄8" 8 x 19 Included
Accuracy ±3% instrument of full scale. Calibrated to specific wire rope size and type; ±5% with same wire rope diameter as calibrated but different wire rope type.
Number of Calibrations 3 factory installed wire rope sizes:
1⁄2" 8 x 19
9⁄16" 8 x 19
5⁄8" 8 x 19
Up to 5 additional wire rope types can be stored independently.
Loading error Cable elongation of only 0.08 inch (2mm)
Display Dot-graphic LCD display supports full text and 1 inch high digits.

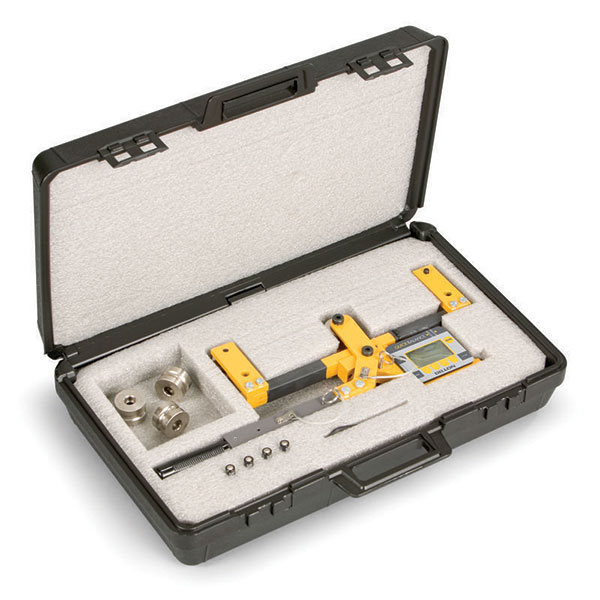

Sheave range Supplied with one set of sheves (¼" to ¾" in range). Other selections may be ordered as necessarry.
Environmental protection Suitable for continued outdoor use.
Operating range -4°F to 140°F (-20°C to 60°C)
Tension units of measure Pound-force, kilogram-force, Newtons
Resolution Configurable low / med / high
Product dimensions 9 x 24 x 3 inch (22 x 61 x 8 cm)
Product weight Approximately 11 lbs (5 kg)
Shipping dimensions 28 x 16 x 8 inch (71 x 41 x 20 cm)
Shipping weight 27 lbs (12 kg)
Recalibration At user discretion. Common calibration period is 24 months but should be more frequent in heavy use applications. Factory calibrations typically completed in 2 to 4 days.
Approvals CE
