Dillon Dynamometers

Dynamometers / load cell / load links are instruments that display the tension force exerted between two attached shackles. They are generally used to determine tension in a line or suspended weight. Dynamometers / load cell / load links are simple to operate with one main operating function, ZERO. Dillon dynamometers / load cell / load links retain their peak measurement. The peak reading is easily reset by the user. Dillon is the most recognized name in dynamometers. The instruments are portable, factory pre-calibrated, and ready to work out of the box. Only Dillon offers both mechanical and electronic versions and has the widest assortment of styles and capacities in each. Includes a calibration certificate.
Showing 1 - 52 of 52 results
Model #:
CapacityReadabilityPan Size
Price
Quantity

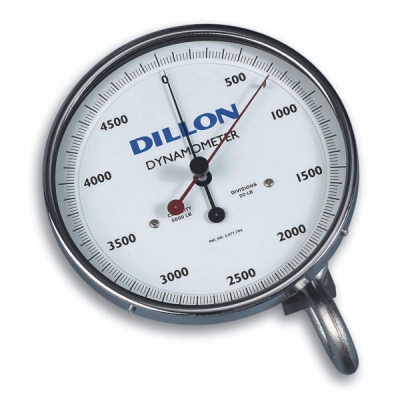

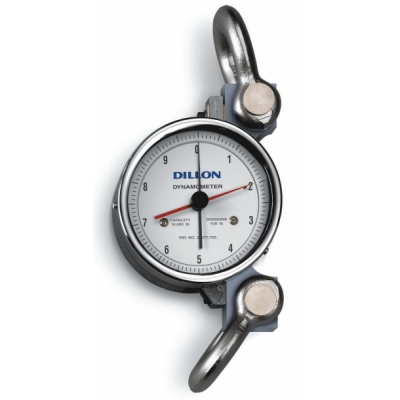

Dillon AP Series Mechanical Dynamometers

Originally designed to measure the tension on telephone wires, the AP Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for such diverse jobs as suspended weighing, mounting cables for bridges, adjusting tension on guy wires, field testing chain and rope as well as wire. Basically anything requiring precision force or tension measurement.

Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.

  • Accuracy of ±0.5 of capacity
  • Broadest range of capacities and resolutions are certain to fit your needs
  • Large safety factor for overload protection and long life
  • No batteries required
  • Dial size choice for the best in portability or visibility
  • Anti-parallax dial and pointer produce accurate readings from any perspective
  • Maximum hand retains peak load point and is easily reset
  • High strength case resists heavy blows
  • Generous shackle openings mate with most hooks and hardware
  • Off set load beam eases tension measurement
  • Durable powder coat paint provides outstanding protection

SKU:
CapacityResolutionDial
Price
Quantity
30006-0019 500 lbs5 lbs5 inch
Your Price: $1,424.00
30006-0027 1,000 lbs10 lbs5 inch
Your Price: $1,348.00
30006-0035 2,000 lbs20 lbs5 inch
Your Price: $1,347.00
30006-0043 4,000 lbs25 lbs5 inch
Your Price: $1,451.00
30006-0050 5,000 lbs50 lbs5 inch
Your Price: $1,425.00
30006-0076 8,000 lbs50 lbs5 inch
Your Price: $1,594.00
30006-0084 10,000 lbs100 lbs5 inch
Your Price: $1,583.00
30006-0092 15,000 lbs100 lbs5 inch
Your Price: $1,817.00
30006-0100 20,000 lbs200 lbs5 inch
Your Price: $1,781.00
30007-0026 1,000 lbs10 lbs10 Inch
Your Price: $1,660.00
30007-0034 2,000 lbs20 lbs10 Inch
Your Price: $1,659.00
30007-0059 5,000 lbs50 lbs10 Inch
Your Price: $1,733.00
30007-0083 10,000 lbs100 lbs10 Inch
Your Price: $1,857.00
30007-0109 20,000 lbs200 lbs10 Inch
Your Price: $2,031.00
30784-0017 30,000 lbs200 lbs10 Inch
Your Price: $7,035.00
30784-0033 50,000 lbs200 lbs10 Inch
Your Price: $6,829.00
30006-0134 500 kg5 kg5 inch
Your Price: $1,400.00
30006-0159 1,000 kg10 kg5 inch
Your Price: $1,424.00
30006-0126 2,000 kg20 kg5 inch
Your Price: $1,468.00
30006-0167 4,000 kg25 kg5 inch
Your Price: $1,592.00
30006-0118 10,000 kg100 kg5 inch
Your Price: $1,811.00
30007-0158 1,000 kg10 kg10 Inch
Your Price: $1,713.00
30007-0125 2,000 kg20 kg10 Inch
Your Price: $1,792.00
30007-0174 5,000 kg20 kg10 Inch
Your Price: $1,951.00
30007-0117 10,000 kg50 kg10 Inch
Your Price: $2,635.00
30784-0058 20,000 kg100 kg10 Inch
Your Price: $7,369.00

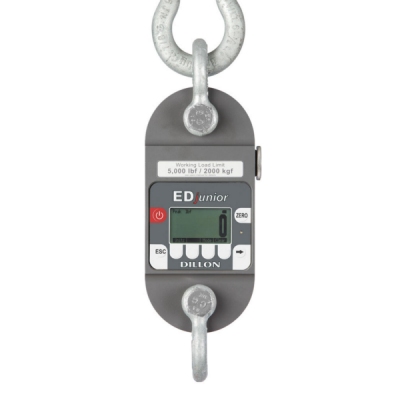

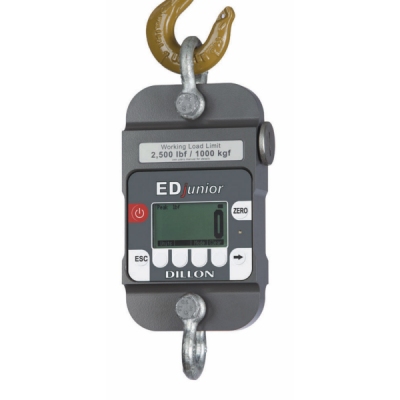

Dillon EDjunior Dynamometers

The EDjunior dynamometer gets straight to the point, apply a load - take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.

The EDjunior draws its strength from the exhaustive engineering that went into the design of the Dillon EDXtreme dynamometer. Both share the same base of research and testing to match material characteristics and load cell technology. The choices made in development have yielded an exceptionally rugged instrument capable of consistently delivering accurate, repeatable measurements.

The EDjunior is even more remarkable when you consider price. If you believe you have to pay more to get more - just compare the Dillon EDjunior to the competition. Nothing else comes close!

The EDjunior is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere in the low price range. With the EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

  • The EDjunior provides peak detection as well as sustained load readings
  • The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2% (full scale)
  • Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required for critical lifting applications
  • The exclusive Dillon SOFTKEY interface provides direct access to setup and display functions without the typical confusing menu structure
  • With the EDjunior's low power consumption, typical battery life is over 425 hours
  • Dillon's distinctive curve-body design further eliminates unnecessary weight and streamlines the unit to help prevent binding
  • Warranty - 2 years parts & labor

SKU:
CapacityResolutionConstruction
Price
Quantity
EDJR-1T 2,500 lbf / 1,000 kgf / 10,000 N2 lbf / 1 kgf / 10 NAluminum
Your Price: $1,678.00
EDJR-2T 5,000 lbf / 2,000 kgf / 20,000 N5 lbf / 2 kgf / 20 NAluminum
Your Price: $1,777.00
EDJR-5T 10,000 lbf / 5,000 kgf / 50,000 N10 lbf / 5 kgf / 50 NAluminum
Your Price: $1,946.00
EDJR-10T 25,000 lbf / 10,000 kgf / 100,000 N20 lbf / 10 kgf / 100 NAlloy Steel
Your Price: $2,805.00

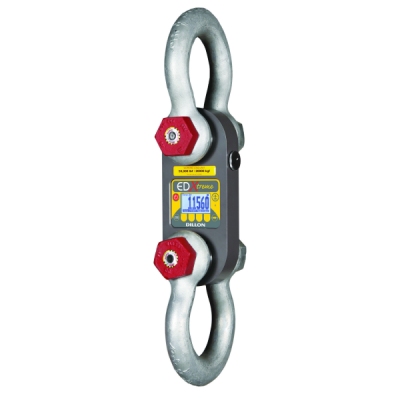

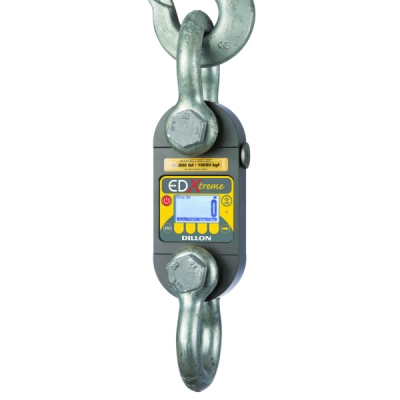

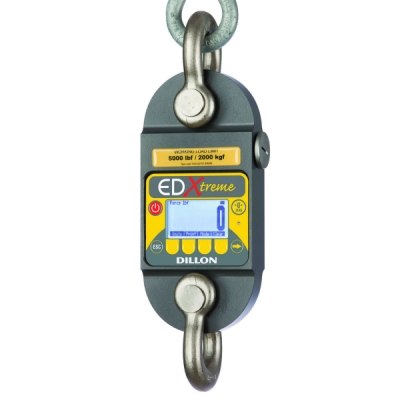

Dillon EDXtreme Dynamometers

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.* While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility. Building a precision instrument that can survive real-world punishment requires masterful engineering.

* Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.

  • High capacity models are constructed of powder coated aircraft-quality alloy steel
  • Lower capacity models are powder coated aircraft-quality aluminum
  • Can communicate with two Communicators via radio
  • Date and time
  • On board storage (accumulation lift and store, push button, and continuous)
  • Allows the use of custom units of measurement along with multiple lines or reeving
  • Programmable functions can correct for gravitational variations
  • Wide-angle, backlit LCD provides improved readability over a wider viewing angle and low light conditions
  • Powered by two easily accessible standard C-cell batteries
  • LED light load alarm
  • CE approval on all capacities excluding 550K

SKU:
CapacityResolutionConstruction
Price
Quantity
EDX-1T 2,500 lbs (no radio)2/0.5 lbsShackles
Your Price: $2,228.00
EDX-1T-R 2,500 lbs2/0.5 lbsRadio/Shackles
Your Price: $3,172.00
EDX-2T 5,000 lbs (no radio)5/1 lbsShackles
Your Price: $2,516.00
EDX-2T-R 5,000 lbs5/1 lbsRadio/Shackles
Your Price: $3,445.00
EDX-5T 10,000 lbs (no radio)10/2 lbsShackles
Your Price: $2,979.00
EDX-5T-R 10,000 lbs10/2 lbsRadio/Shackles
Your Price: $3,443.00
EDX-10T 25,000 lbs20/5 lbsShackles
Your Price: $3,802.00
EDX-10T-R 25,000 lbs (no shackles)20/5 lbsRadio
Your Price: $4,005.10
EDX-10T-RS 25,000 lbs20/5 lbsRadio/Shackles
Your Price: $4,741.00
EDX-25T 55,000 lbs50/10 lbsShackles
Your Price: $4,745.00
EDX-25T-R 55,000 lbs (no shackles)50/10 lbsRadio
Your Price: $4,702.00
EDX-25T-RS 55,000 lbs50/10 lbsRadio/Shackles
Your Price: $5,684.00
EDX-50T 50 Tons (no shackles)100/20 lbsRadio
Your Price: $6,043.50
EDX-50T-S 50 Tons100/20 lbsRadio/Shackles
Your Price: $9,819.00
EDX-75T 75 Tons (no shackles)100/50 lbsRadio
Your Price: $8,151.80
EDX-75T-S 75 Tons100/50 lbsRadio/Shackles
Your Price: $17,947.00
EDX-100T 100 Tons (no shackles)200/50 lbsRadio
Your Price: $11,540.70
EDX-100T-S 100 Tons200/50 lbsRadio/Shackles
Your Price: $24,610.90
EDX-150T 150 Tons (no shackles)200/100 lbsRadio
Your Price: $24,376.00
EDX-150T-S 150 Tons200/100 lbsRadio/Shackles
Your Price: $37,499.40
EDX-250T 250 Tons (no shackles)500/200 lbsRadio
Your Price: $34,514.30
EDX-250T-S 250 Tons500/200 lbsRadio/Shackles
Your Price: $59,998.80
