Mellen NACCI™ 3" Solid Tube Furnaces

Mellen NACCI 3" ™ programmable solid tube furnaces
The Mellen NACCI 3" ™ series of economical tube furnaces feature outstanding performance and control in an integrated standalone package. Maximum temperature of 1250° C in lengths ranging from 3" to 26" are available with a 10' long power cord. The NACCI line from Mellen also offer high efficiency ceramic inslation pack and fast heat up rates. All units come with an integrated programmable controller with 8 ramp/soak programs with 8 segments with a standard RS 485 communications port.,

• 3” heated inner diameter
• Tube Adapters Included for 1” and 2” bores
• Flexible Heated Lengths from 6”- 36”
• 1250°C exposed APM heating element
• High Efficiency Ceramic Fiber Insulation Pack
• Fast Heat Up Rates
• 10 foot power cord with plug for ease of operation
• Integrated Dual Display Controller
• 8 Ramp/Soak/Programs, 8 Segments
• Autotune and Universal Input
• 2 Auxilliary Alarm Outputs
• RS 485 Communications Port

Thermo Scientific Lindberg/Blue M Mini-Mite™ 1100°C Tube Furnaces

Mini-Mite™ 1100°C Tube Furnaces offer a selection of control instrumentation including multiple segment programmable or single setpoint control.
All models feature energy efficient Moldatherm® insulation for quick heat-up and cool-down.Microprocessor-based self-tuning PID control provides optimal thermal processes without overshoot.,

• Includes: 9 ft. / 3m power cord
• Warranty and Service Offering: 12 months

Features

• Compact, portable and lightweight design
• Split-hinge design simplifies loading and unloading
• Main power on/off switch on control panel
• Safety switch disconnects power to heating element when furnace is opened
• Long life type "K" thermocouple

Digital, Single Setpoint Controller

• Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process without overshoot
• Single segment, single setpoint, 1 ramp to setpoint
• Adjustable high limit overtemperature protection
• Simultaneous LED display of actual temperature vs. setpoint
• May be configured to display temperature in either °C or °F

Digital Single Program, Multiple Segment, Programmable Controller

• Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process without overshoot
• Single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
• Adjustable high limit overtemperature protection
• Simultaneous LED display of actual temperature vs. setpoint
• May be configured to display temperature in either °C or °F

Optional RS485 Digital Communications Port

• RS485 Digital communications port available as an option. Allows controller to be connected to a PC for remote monitoring and control of the furnace. Up to 30 units can be connected to one PC

Recommended for:

• Pyrolisis
• Thermal Expansion
• Calibration
• Sintering
• Viscoisty Testing

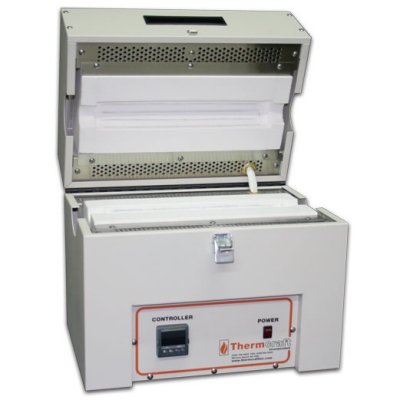

Thermcraft Protege 1100°C Split Tube Furnaces with SmartControl

The Protege XST split tube furnaces have a compact, lightweight, space saving design. This model is an excellent choice to begin thermal processing in a laboratory environment. The hinged body which is split along its length allows for easy process tube changes and simple installation of process tubes with end seals attached. The Protrgr has Fibercraft™ vacuum formed ceramic fiber heating elements with free radiating wire embedded into the body of the heater and tube adapters integrated into the ends. Excellent temperature uniformity and a programmable control system make the Protege a valuable addition to any lab.

• 1100°C maximum operating temperature
• Vacuum formed ceramic fiber heating elements ensure rapid heat up, excellent temperature uniformity and quick cool down
• Compact, lightweight design
• Safety switch disconnects power toheating elements when opened
• Choice of Integrated Eurotherm 3216CP (8 segments) or 2416CP (24 segments) PID control systems
• Long life Inconel sheathed Type K thermocouple
• Accepts process tube outer diameters up to 1.25" (31mm)
• Heated length 12" (304mm)
• Furnace and controller ship fully assembled and ready for connection to incoming power supply
• Can be used in horizontal or vertical orientation

Mellen Microtherm™ Split Tube Furnaces

Mellen Microtherm™ Series Split Tube Furnaces with Integrated Controller
The MELLEN Microtherm™ split hinged round tubular furnace is capable of operating up to 1250°C in air. The furnace features exposed APM windings for long lasting element life. The furnace is supplied from the factory in the horizontal orientation but can be used vertically. An option Vertical Bench Stand is available.,

• 31 program, 126 segment controller
• Type ‘S’ Thermocouple
• Fast Ramp Rates: 25-35°C per minute
• Compact Inline Design for Tight Spaces & Lab Settings
• Available with Optional Independent Over-Temperature Alarm

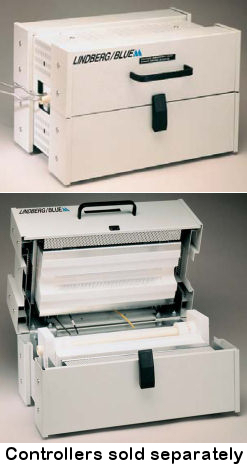

Thermo Scientific Lindberg/Blue M 1200°C Split-Hinge Tube Furnaces

Thermo Scientific Lindberg/Blue M 1200°C Split-Hinge Tube Furnaces offer ease of observation and operation.
These Thermo Scientific Lindberg/Blue M 1 split-hinge tube furnaces are configurable for horizontal or vertical use. Furnaces use independent digital temperature control modules (ordered separately) which are available in standard or programmable options.,

• Includes: One set of two tube adapters
• Required Accessories: Independent digital temperature control module
• Warranty and Service Offering: 12 months

Features

• Patented Moldatherm LGO heating element modules for superior radial and linear temperature uniformity and fast heatup and cooldown
• Long-life, energy-efficient elements require little or no maintenance
• Unique cabinet design achieves lower exterior surface temperature
• Heat-reflecting element support assembly creates two highly effective insulating air spaces
• Compact cabinet with high temperature-resistant painted finish
• Accepts interchangeable Moldatherm tube adapters
• Long-life Platinel II thermocouple(s) with 10 ft. compensated lead wire and polarized plug

Three Zone Models

• Three independent power circuits (zones) with independent thermocouples for control references
• Full adjustment of each zone over entire operating range to 1200°C
• Center zone uniformity achieved and operating length maximized through adjustable profiling of end zones by independent controller
• Temperature uniformity achieved with independent setpoint of end zones higher or lower than center

Mellen NACCI™ 6" Solid Tube Furnaces

Mellen NACCI 6" ™ programmable solid tube furnaces
The Mellen NACCI 6" ™ series of economical tube furnaces feature outstanding performance and control in an integrated standalone package. Maximum temperature of 1250° C in lengths ranging from 6" to 36" are available with a 10' long power cord. The NACCI line from Mellen also offer high efficiency ceramic inslation packe and fast heat up rates. All units come with an integrated programmable controller with 8 ramp/soak programs with 8 segments with a standard RS 485 communications port.,

• 6” heated inner diameter
• Flexible Heated Lengths from 6”- 36”
• 1250°C exposed APM heating element
• High Efficiency Ceramic Fiber Insulation Pack
• Fast Heat Up Rates
• Integrated Dual Display Controller
• 8 Ramp/Soak/Programs, 8 Segments
• Autotune and Universal Input
• 1 Auxilliary Alarm Outputs
• RS 485 Communications Port

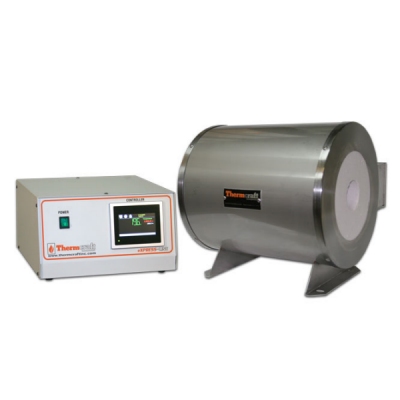

Thermcraft, Inc. 1200°C Solid Tube Furnaces

These XSL solid tube furnaces will accept a process tube up to 2.75" (70 mm) and have a maximum operating temperature of 1200°C (2192°F). They have an interconnected control system and the furnace can be operated horizontally or vertically. The XSL solid tube furnaces have a continuous solid body design. Process tubes can be inserted through the furnace chamber before attaching end seals. These furnaces use ceramic refractory heating elements with embedded resistance wire. The tube adapters can be changed by removing the end caps so that multiple process tube sizes can be used with one furnace. Temperature uniformity is excellent due to the heavy ceramic refractory heating elements and continuous solid tube heated chamber. These furnaces ship two weeks after receipt of order.

• 1200°C maximum operating temperature
• Ceramic refractory with embedded wire heating elements ensure excellent temperature uniformity
• Thermcraft SmartControl touch screen PID control system
• Accepts process tube outer diameters up to 2.75" (69mm)
• Heated lengths up to 24" (609mm)
• Includes 1 set of tube adapters sized to desired internal diameter
• 10' (3m) interconnecting and power cables
• Furnace and controller ship fully assembled and ready for connection to incoming power supply
• Can be used in horizontal or vertical orientation

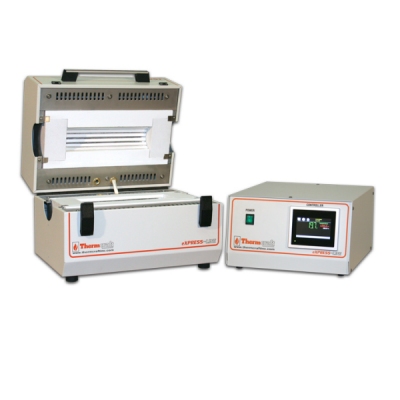

Thermcraft, Inc. 1200°C Split Tube Furnaces

These XST split tube furnaces will accept process tubes up to 6" (152 mm) and have a maximum operating temperature of 1200°C (2192°F). They have an interconnected control system and the furnace can be operated horizontally or vertically. The XST split tube furnaces have a hinged body which is split along its length. This design allows for easy process tube changes and simple installation of process tubes with end seals attached. These furnaces use Fibercraft™ vacuum formed ceramic fiber heating elements with free radiating wire embedded into the body of the heater. The tube adapters are removable and interchangeable so that multiple process tube sizes can be used with one furnace. Single zone models have excellent temperature uniformity and the three zone models can extend the uniform flat zone by independently controlling the end zones.

SmartControl Standard Controller

The SmartControl System combines all of the features of typical PID controllers, video/chart recorders and data logging systems into a single, intuitive device. The SmartControl provides a 4.3" color touch screen interface with standard, user configurable, runtime features for 1-3 zone control applications. All loop configuration and runtime user access is configurable at the device with no PC software required. SmartControl supports 1-3 control zones, offering up to 4 control outputs per zone, powerful profiling capabilities including up to three event outputs and more.

Integrated LAN features include e-mail, SMS (text messaging) on alarm, FTP (file transfer protocol for automated file transfer/data backup), remote access (web and VNC embedded servers) and national timeserver time synchronization are standard. The web and VNC servers allow remote access using a PC, tablet or other smart phone devices.

If you can use a "smart device" (iPhone, Android, etc.), you can use SmartControl!
User configurable with "slide nav" finger navigation similar to "smart devices" or with a traditional drop down menu system, SmartControl is intuitive to operate and use. With one touch language configuration for all icons, menus and help screens, SmartControl provides ease of use in any one of 28 languages.

• 1200°C maximum operating temperature
• Vacuum formed ceramic fiber heating elements ensure rapid heat up, excellent temperature uniformity and quick cool down
• Thermcraft SmartControl touch screen PID control system
• Accepts process tube outer diameters up to 6" (152mm)
• Heated lengths up to 36" (609mm)
• Includes 1 set of tube adapters sized to desired internal diameter
• 10' (3m) interconnecting and power cables
• Furnace and controller ship fully assembled and ready for connection to incoming power supply
• Can be used in horizontal or vertical orientation (vertical mounting brackets included)

Thermo Scientific Lindberg/Blue M 1100°C Tube Furnaces

Thermo Scientific Lindberg/Blue M Tube Furnaces are designed for use with a variety of process tubes including alumina, mullite, quartz and metallic.
Design techniques such as double-shell construction and variable density insulation combine to enhance performance over conventional furnaces. Durable, high-strength hardware and a variety of control systems offer both convenience and versatility over a range of sophistication.

These three-zone 1100°C tube furnaces, with Moldatherm* ceramic fiber insulation, feature excellent temperature uniformity, fast heatup and cooldown, and quick recovery with optimum power consumption. The furnace comes with three independent, programmable controllers, one for each zone.,

• Includes: One set of two tube adapters
• Required Accessories: Power cord and hardwiring
• Warranty and Service Offering: 12 months

Performance Features

• Three zones, three programmable controllers (one for each zone)
• Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process without overshoot
• Single program with multiple segments for ramp (up/down) and dwell (timed hold) temperature control
• Adjustable high-limit overtemperature protection
• Simultaneous LED display of temperature and setpoint in °C or °F

Design Features

• Flexible design-can be used for a variety of applications
• Innovative use of venting and insulating air spaces create lower exterior surface temperatures
• Moldatherm insulation for quick heatup and cooldown
• Long-life Type K thermocouple
• Accepts an array of tube adapters; one set of (2) tube adapters included
• RS485 digital communications port available as an option; allows controller to be connected to a PC for remote monitoring and control

Recommended for:

• Annealing
• Crystallizing
• Calibration
• Heat Treating

Thermo Scientific Lindberg/Blue M 1500°C Heavy Duty Tube Furnaces

Thermo Scientific Lindberg/Blue M Heavy-Duty Solid-Tube Furnaces are designed for high-temperature metallurgical, ceramic, chemical, and electronic research.
Thermo Scientific Lindberg/Blue M solid-tube furnaces ensure precise temperature uniformity. Temperature controllers offer a range of sophistication, including microprocessor-based single and multi-setpoint programmable controls.,

• Required Accessories: Independent digital temperature control module, available separately. Required power cord, hardwiring and interconnecting wiring are not included.
• Warranty and Service Offering: 12 months
• Can only be used horizontally

Features

• Double-end silicon carbide heating elements mounted above and below the chamber
• Heating elements with unique right-angle bend, sidewall mounting and compressed spacing at ends deliver fast heat-up and recovery, and offset heat loss from end of process tube
• Removable side panels for easy installation and electrical connection, simplified heating element replacement and adjustment
• High temperature insulation with insulated end vestibules for better uniformity and energy efficiency
• Long life, fast response type "R" thermocouples with 10 ft. compensated lead wire and polarized plug

Thermo Scientific Lindberg/Blue M 1700°C High Temperature Tube Furnaces

High temperature tube furnaces achieve excellent temperature uniformity at 1700°C with rapid heat-up, recovery and cool-down.
Moldatherm® graduated density insulation adds to safety and performance by forming enhanced insulation protection between the high temperature chamber and exterior cabinet surface. Moldatherm graduated density insulation, combined with molybdenum disilicide heating elements, provide superior radial and linear temperature uniformity with resistance to thermal shock. The independent digital temperature control (ordered separately) has multiple programmable segments useful for a wide range of applications.,

• Includes: One 3" vestibule set and sleeves included; other size vestibule sets and sleeves may be ordered separately.
• Required Accessories: Independent digital temperature control module, available separately. Required power cord, hardwiring and interconnecting wiring are not included.
• Warranty and Service Offering: 12 months
• Can only be used horizontally

Features

• Heating elements tolerate rapid cycling over extended periods; elements are easily replaceable without the need to match resistance values
• Heating elements are sidewall mounted to protect integrity of chamber roof; roof penetrations are avoided
• Type "B" thermocouples assure accurate temperature measurement and long thermocouple life; 10' compensated lead wire with polarized plug included
• Moldatherm end vestibules accept 3" O.D. process tube (customer supplied)
• Optional Moldatherm vestibules permit operation with 1", 2" and 3" O.D. process tubes for increased versatility
• Double shell construction and convection cooling design reduces exterior surface temperature
• Removable louvered panels provide easier access to heating elements and thermocouple
