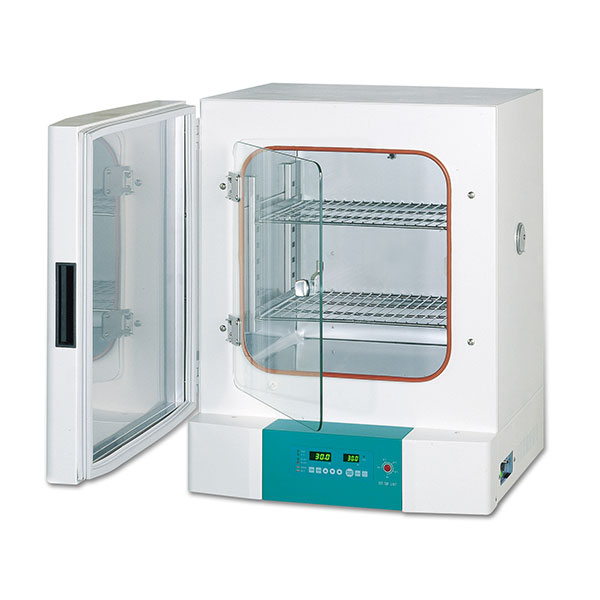

IB-G series are the most useful incubators for general purpose which manufactured equipped air-jacketed convection style for excellent uniformity without outside air disturbances.
Operating Features
- 5°C above room temperature to 70°C
- Microprocess PID control / Auto-tuning / Calibration
- Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF
- Over-temperature limiter / Door opening alarm
- 3 different temperature values memorable without auto-tuning
- Digital LED display (0.1°C resolution) with touch-sensitive keypads
- RS-232 interface available
Constructional Features
- Fully insulated dual-wall door with rubber magnetic seal gasket keep setting temperature
- Stackable 2 steps up with exclusive stacking kits (optional)
- Optimized sample inspection through a tempered inner glass door without affecting chamber temperature
- Separable shelves and rounded inner chamber corners for easy cleaning
- Highly durable incoloy heaters with fins guarantee better radiation
- Connectable other electric instruments to the inside of a chamber through a side cable port
- Adjustable port to control the amount of airflow in the chamber
- 2 Year Manufacturer's Warranty
Technical Specifications: | Max Temperature | 70°C (158°F) |
| Volume | 5.3 cu ft (151 L) |
| Outside Dimensions (WxHxD) | 32.0 x 35.0 x 26.0" (80.5 x 88.5 x 65.5 cm) |
| Chamber Dimensions (WxHxD) | 24.0 x 21.3 x 18.0" (61.0 x 54.0 x 46.0 cm) |
| Power | 230V / 3.1A / 710W |
| Temperature Fluctuation at 39°C | ±0.2°C / ±0.36°F |
| Net Weight | 62 kg / 136 lbs |
| Temperature Variation at 39°C | ±0.6°C / ±1.8°F |
