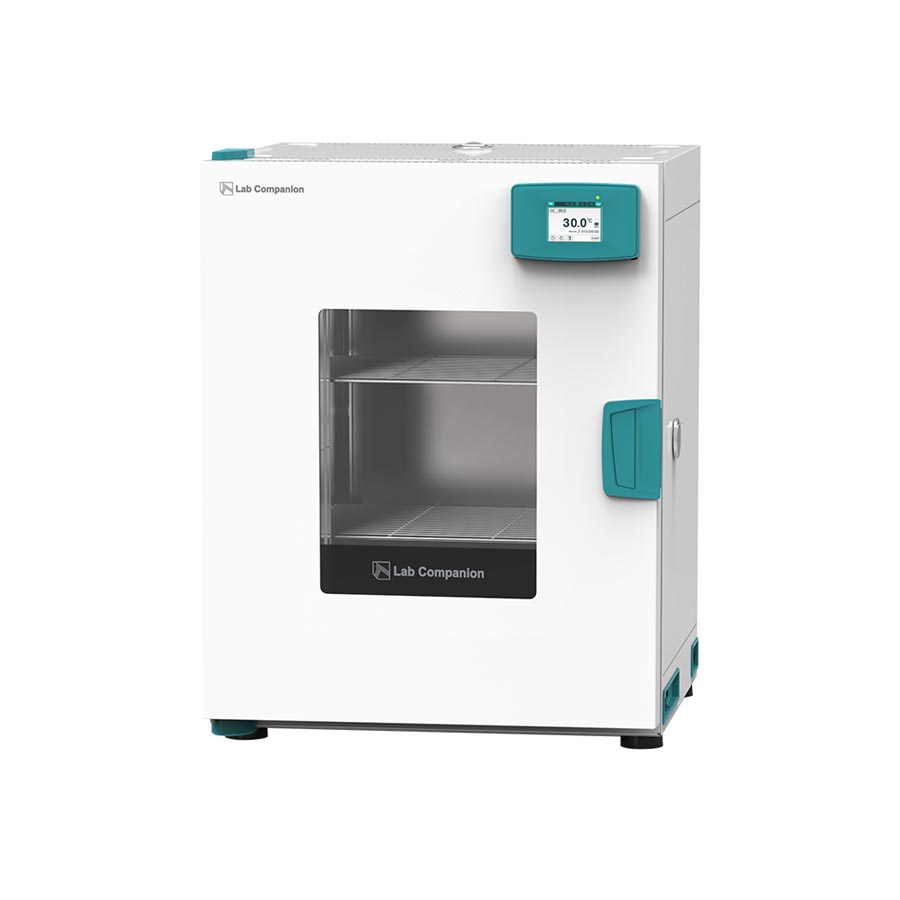

Lab Companion ON4-05SW Standard Natural Convection Oven with Window

The Lab Companion by Jeio Tech ON4to05SW standard natural convection oven has a 58 liter volume with an ambient +15 to 250°C temperature range and comes with a viewing window. Lab Companion by Jeio Tech ON4-S standard natural (gravity) convection ovens have uniform and stable temperature distribution with multi-path airflow for improved reliability. The standar 3.5-inch wide color touchscreen controller has a wait on / wait off timer function and supports RS-232/USB ports and software for data transfer and control from a PC (otion). You can also monitor and control anywhere via mobile devices with the optional LC GreenBox mobile monitoring system. Another option is support for BMS (building management system) to monitor temperature and to respond to abnormalities. Also you can integrate with 21 CFR Part 11 compliant LC DataKeeper suitable for GMP audits (option).

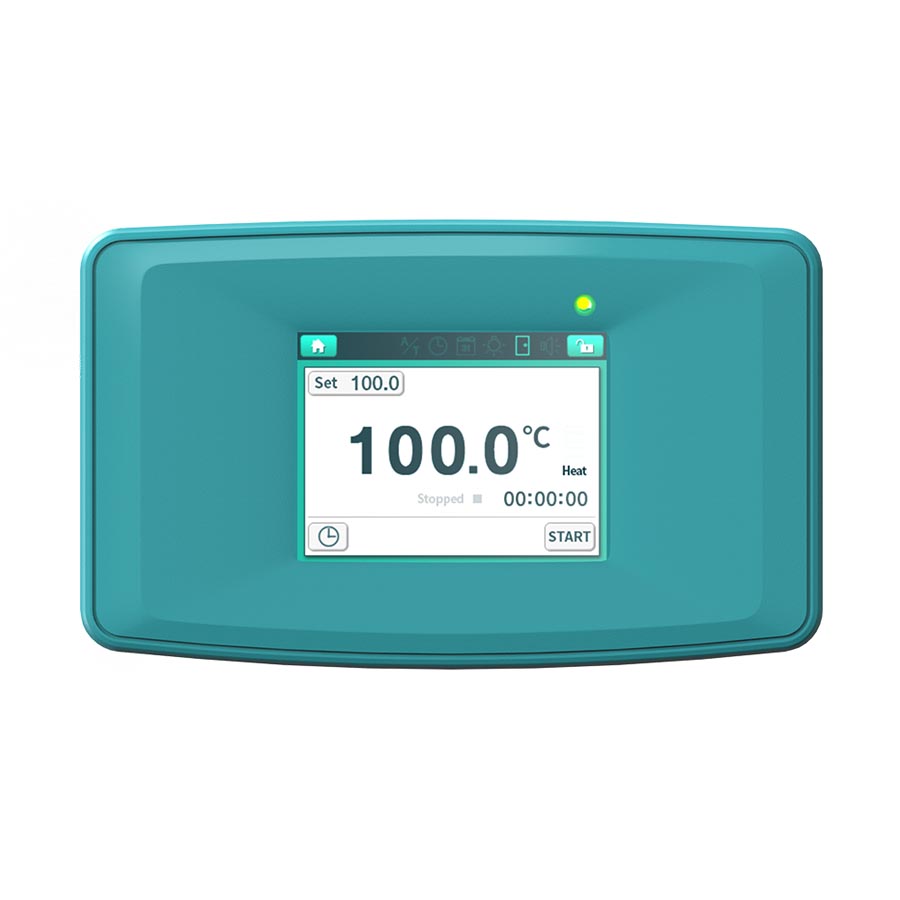

• Intuitive interface with 5-inch display.
• Wait on / Wait off timer function.
• Wide temperature range of up to 250°C.
• Temperature accuracy for wide range by 3-point calibration.
• The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.

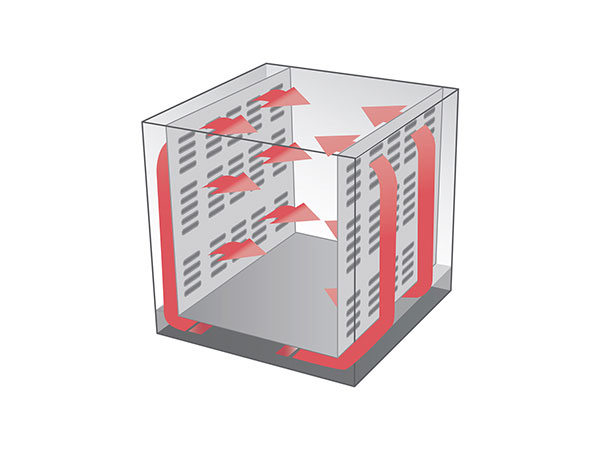

• Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±3.6°C at 100°C)
• Support RS-232/USB port and software making easy operation and data management from PC. (option)
• Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
• Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
• Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
• Effectively removes fumes from the inside of the chamber via the top vent hole. (ON4-03)
• Safe surface even when operating at max temperatures. (less than 70°C at 250°C)
• Implemented with the top-rated overheating prevention system. (Patent 10-0397583)
• Over Temperature Limiter.
• Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.
• Logs the last 12 events, including run times, stops, and errors.
• Double stackable with stacking set (option) maximizes space utilization.
• Hands-free™ door allows both hands free while holding samples.
• 2 year warranty
