Mellen Tube Furnaces

Showing 1 - 31 of 31 results
Model #:
CapacityReadabilityPan Size
Price
Quantity

Mellen NACCI™ 3" Solid Tube Furnaces

Mellen NACCI 3" ™ programmable solid tube furnaces
The Mellen NACCI 3" ™ series of economical tube furnaces feature outstanding performance and control in an integrated standalone package. Maximum temperature of 1250° C in lengths ranging from 3" to 26" are available with a 10' long power cord. The NACCI line from Mellen also offer high efficiency ceramic inslation pack and fast heat up rates. All units come with an integrated programmable controller with 8 ramp/soak programs with 8 segments with a standard RS 485 communications port.,

  • 3” heated inner diameter
  • Tube Adapters Included for 1” and 2” bores
  • Flexible Heated Lengths from 6”- 36”
  • 1250°C exposed APM heating element
  • High Efficiency Ceramic Fiber Insulation Pack
  • Fast Heat Up Rates
  • 10 foot power cord with plug for ease of operation
  • Integrated Dual Display Controller
  • 8 Ramp/Soak/Programs, 8 Segments
  • Autotune and Universal Input
  • 2 Auxilliary Alarm Outputs
  • RS 485 Communications Port

SKU:
Chamber / VolumeMax TemperatureController Type
Price
Quantity
NV12.5-3X6-IC-120V-1Z-IOT Ø 3" x 6"1,250°C
1 Zone		120V
Your Price: $3,639.58
NV12.5-3X12-IC-120V-1Z-IOT Ø 3" x 12"1,250°C
1 Zone		120V
Your Price: $4,082.83
NV12.5-3X30-IC-208/240V-1Z-IOT Ø 3" x 30"1,250°C
1 Zone		208/240V
Your Price: $5,560.33
NV12.5-3X36-IC-208/240V-1Z-IOT Ø 3" x 36"1,250°C
1 Zone		208/240V
Your Price: $6,151.33

Mellen Microtherm™ Split Tube Furnaces

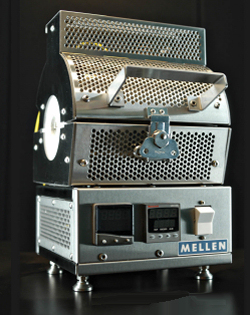

Mellen Microtherm™ Series Split Tube Furnaces with Integrated Controller
The MELLEN Microtherm™ split hinged round tubular furnace is capable of operating up to 1250°C in air. The furnace features exposed APM windings for long lasting element life. The furnace is supplied from the factory in the horizontal orientation but can be used vertically. An option Vertical Bench Stand is available.,

  • 31 program, 126 segment controller
  • Type ‘S’ Thermocouple
  • Fast Ramp Rates: 25-35°C per minute
  • Compact Inline Design for Tight Spaces & Lab Settings
  • Available with Optional Independent Over-Temperature Alarm

SKU:
Chamber / VolumeMax TemperatureController Type
Price
Quantity
MTSC12.5R-0.75X6-1Z-IOT Ø0.75" x 6"1,250°C
1 Zone		31 program, 126 segment
Your Price: $2,913.00
MTSC12.5R-0.75X8-1Z-IOT Ø0.75" x 8"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,242.00
MTSC12.5R-0.75X12-1Z-IOT Ø0.75" x 12"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,901.00
MTSC12.5R-0.75X18-1Z-IOT Ø0.75" x 18"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,984.00
MTSC12.5R-1.25X6-1Z-IOT Ø1.25" x 6"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,054.00
MTSC12.5R-1.25X8-1Z-IOT Ø1.25" x 8"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,384.00
MTSC12.5R-1.25X12-1Z-IOT Ø1.25" x 12"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,136.00
MTSC12.5R-1.25X18-1Z-IOT Ø1.25" x 18"1,250°C
1 Zone		31 program, 126 segment
Your Price: $5,078.00
MTSC12.5R-1.625X6-1Z-IOT Ø1.625" x 6"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,148.00
MTSC12.5R-1.625X8-1Z-IOT Ø1.625" x 8"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,478.00
MTSC12.5R-1.625X12-1Z-IOT Ø1.625" x 12"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,231.00
MTSC12.5R-1.625X18-1Z-IOT Ø1.625" x 18"1,250°C
1 Zone		31 program, 126 segment
Your Price: $5,219.00
MTSC12.5R-2.375X6-1Z-IOT Ø2.375" x 6"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,713.00
MTSC12.5R-2.375X8-1Z-IOT Ø2.375" x 8"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,995.00
MTSC12.5R-2.375X12-1Z-IOT Ø2.375" x 12"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,654.00
MTSC12.5R-2.375X18-1Z-IOT Ø2.375" x 18"1,250°C
1 Zone		31 program, 126 segment
Your Price: $5,642.00
MTSC12.5R-3X6-1Z-IOT Ø3" x 6"1,250°C
1 Zone		31 program, 126 segment
Your Price: $3,807.00
MTSC12.5R-3X8-1Z-IOT Ø3" x 8"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,136.00
MTSC12.5R-3X12-1Z-IOT Ø3" x 12"1,250°C
1 Zone		31 program, 126 segment
Your Price: $4,795.00
MTSC12.5R-3X18-1Z-IOT Ø3" x 18"1,250°C
1 Zone		31 program, 126 segment
Your Price: $5,736.00

Mellen NACCI™ 6" Solid Tube Furnaces

Mellen NACCI 6" ™ programmable solid tube furnaces
The Mellen NACCI 6" ™ series of economical tube furnaces feature outstanding performance and control in an integrated standalone package. Maximum temperature of 1250° C in lengths ranging from 6" to 36" are available with a 10' long power cord. The NACCI line from Mellen also offer high efficiency ceramic inslation packe and fast heat up rates. All units come with an integrated programmable controller with 8 ramp/soak programs with 8 segments with a standard RS 485 communications port.,

  • 6” heated inner diameter
  • Flexible Heated Lengths from 6”- 36”
  • 1250°C exposed APM heating element
  • High Efficiency Ceramic Fiber Insulation Pack
  • Fast Heat Up Rates
  • Integrated Dual Display Controller
  • 8 Ramp/Soak/Programs, 8 Segments
  • Autotune and Universal Input
  • 1 Auxilliary Alarm Outputs
  • RS 485 Communications Port

SKU:
Chamber / VolumeMax TemperatureController Type
Price
Quantity
NV12.5-6X6-IC-208V-1Z-IOT Ø 6" x 6"1,250°C
1 Zone		208V
Your Price: $4,560.00
NV12.5-6X12-IC-208V-1Z-IOT Ø 6" x 12"1,250°C
1 Zone		208V
Your Price: $5,219.00
NV12.5-6X18-IC-208V-1Z-IOT Ø 6" x 18"1,250°C
1 Zone		208V
Your Price: $6,725.00
NV12.5-6X24-IC-208V-1Z-IOT Ø 6" x 24"1,250°C
1 Zone		208V
Your Price: $7,478.00
NV12.5-6X24-IC-208V-3Z-IOT Ø 6" x 24"1,250°C
3 Zone		208V
Your Price: $7,964.10
NV12.5-6X30-IC-208V-3Z-IOT Ø 6" x 30"1,250°C
3 Zone		208V
Your Price: $9,219.00
NV12.5-6X36-IC-208V-3Z-IOT Ø 6" x 36"1,250°C
3 Zone		208V
Your Price: $9,878.00
