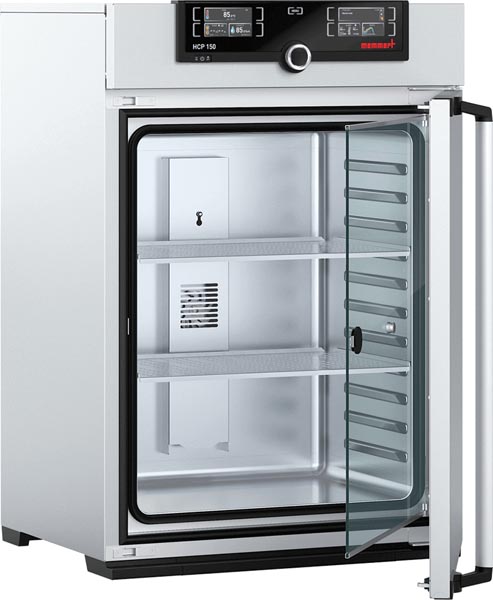

The Memmert HCP150 humidity chamber has a capacity of 5.5 Cu Ft (156 L) with a temperature range of 6° to 90°C and comes with dual digital display controllers with programmaning. This climate chamber offers the full range of comfort, reliability, and safety. It has active humidity control set from 20% to 95% rh and an unsurpassed homogeneity of temperature and humidity over the entire interior. It is suited for environmental testing, environmental simulation, accelerated service life tests, and 85/85 tests according to IEC 60068-2-67 and IEC 60068-2-78.
| Volume approx. | 5.5 Cu Ft (156 L) |
|---|---|
| Temperature range | +7°C above ambient temperature to +90°C |
| Setting temperature range | +18°C to +90°C |
| Setting accuracy °C | 0.1°C |
| Humidity control | Active microprocessor control for humidifying and dehumidifying (20 - 95 % rh), incl. digital indication and auto-diagnostic system ensures even more rapid reaching of set humidity and very short recovery times. Humidity supply with water (only for demineralised water with a conductivity of 5 to 10 µS/cm and a pH value between 5 and 7; from an external tank) by a selfpriming pump; integral bacteria block by generating hot steam, dehumidifying via sterile filter |
| Humidity setting range active humidity control (with option K7) | 20% to 95% and rh-Off |
| Humidity setting accuracy | 0.5% |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, heated inner glass door, fully insulated stainless steel door |
| Interior | Stainless steel, material 1.4301 (ASTM 304), deep-drawn, seamlessly welded |
| Alarm | Door-open-recognition, shuts down fan |
| Entry port | Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by silicone stopper, at the back, centre left |
| Chamber Dimensions (W x H x D) | 22 x 27.6 x 15.7 inches (560 x 700 x 400 mm) |
| Maximum number of grids/shelves | 10 (2 included) |
| Maximum loading per grid/shelf | 33.1 lbs (15 kg) |
| Maximum loading of chamber | 264.6 lbs (120 kg) |
| Exterior Dimensions (W x H x D) | 28.3 x 42.1 x 23.3 inches (719 x 1070 x 591 mm) |
| Standard works calibration certificate (measuring point chamber center) | +60°C with 75% rh |
| Electrical | 115 V, 50/60 Hz, 1,800 Watts (230 V available) |
| Net weight approx. | 198.4 lbs (90 kg) |
| Gross weight (packed in carton) approx. | 255.7 lbs (116 kg) |
| Shipping Dimensions (W x H x D) | 31.5 x 49.2 x 31.5 inches (800 x 1250 x 800 mm) |
