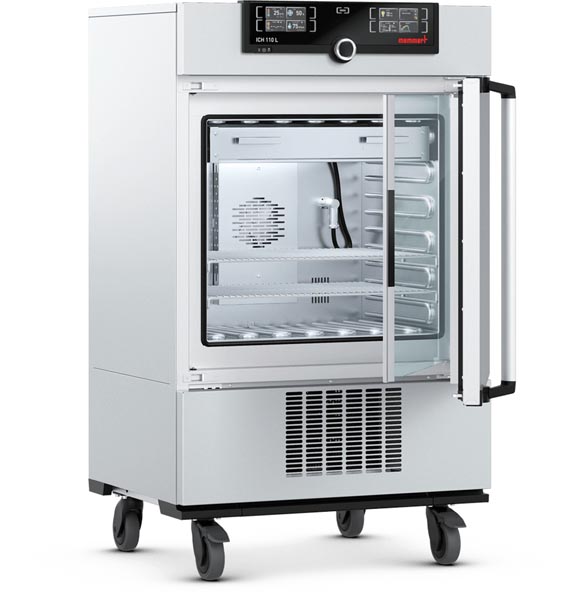

The Memmert ICH110LECO climate chamber has a capacity of 3.8 Cu Ft (108 L) with a temperature range of 0° to 60°C and comes with dual digital display controllers with programmaning. These environmentally friendly stability testing chambers operate with climate-friendly CO2 (R744) refrigerant. Powerful and climate-friendly at the same time, they are especially designed for testing pharmaceuticals according to ICH, Q1A and Q1B (option 2) as well as for testing the stability of cosmetics and foodstuffs. Temperature and humidity are distributed homogeneously and stable throughout the interior.
| Volume approx. | 3.8 Cu Ft (108 L) |
|---|---|
| Temperature range | +10°C to +60°C (with humidity) 0°C to +60°C |
| Setting temperature range | 0°C to +60°C |
| Setting accuracy °C | 0.1°C |
| Humidity setting range | 10 to 80% rh |
| Humidity setting accuracy | 0.5% rh |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, inside glass door, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs |
| Door | Outside stainless steel, fully insulated, inside glass door |
| Convection | Forced ventilation by fan |
| Includes | Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by silicone stopper, standard position at the back Water tank including connection hose |
| Chamber Dimensions (W x H x D) | 22 x 18.9 x 15.7 inches (560 x 480 x 400 mm) |
| Maximum number of grids/shelves | 5 (2 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 331 lbs (150 kg) |
| Maximum loading per slide-in drip tray | 6.6 lbs (3 kg) |
| Maximum loading per bottom drip tray | 6.6 lbs (3 kg) |
| Exterior Dimensions (W x H x D) | 29.3 x 34 x 21.9 inches (745 x 864 x 555 mm) |
| Standard works calibration certificate (measuring point chamber center) | +10°C, +37°C and 30°C/60% rh |
| Electrical | 115 V, 50/60 Hz, 320 Watts (230 V available) |
| Net weight approx. | 251.3 lbs (114 kg) |
| Gross weight (packed in carton) approx. | 313.1 lbs (142 kg) |
| Shipping Dimensions (W x H x D) | 34.6 x 55.5 x 31.9 inches (880 x 1410 x 810 mm) |
