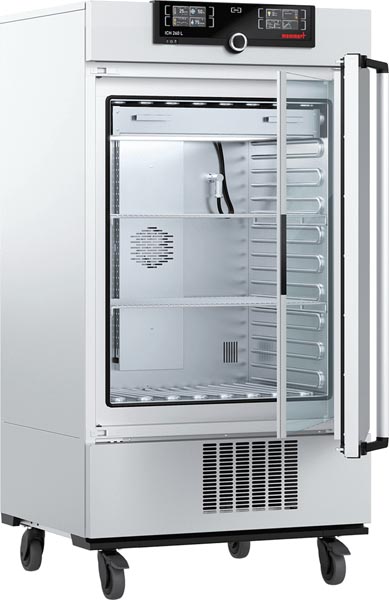

The Memmert ICH260L climate chamber with a light has a capacity of 9 Cu Ft (256 L) with Light with a temperature range of 0° to 60°C and comes with dual digital display controllers with programmaning. Memmert ICH climate chambers are environmentally friendly stability testing chambers. Temperature and humidity are distributed homogeneously and stable throughout the chamber.
| Volume approx. | 9 Cu Ft (256 L) |
|---|---|
| Temperature range | +10°C to +60°C (with humidity) 0°C to +60°C |
| Setting temperature range | 0°C to +60°C |
| Setting accuracy °C | 0.1°C |
| Humidity setting range | 10 to 80% rh |
| Humidity setting accuracy | 0.5% rh |
| Light | Illumination unit (only ICH L) acc. ICH Q1B, option 2; separately switchable via controller, one box; Number of fluorescent lights with cold white light (size 110: 3, size 260/750: 4), light colour 865 6,500 K; Number of fluorescent lights with UV lamps (all sizes: 2), spectral range from 320 to 400 nm; (daylight and UV light comply with standard illuminant D65) |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, inside glass door, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn |
| Door | Outside stainless steel, fully insulated, inside glass door |
| Convection | Forced ventilation by fan |
| Includes | Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by silicone stopper, standard position at the back Water tank including connection hose |
| Chamber Dimensions (W x H x D) | 25.2 x 31.5 x 19.7 inches (640 x 800 x 500 mm) |
| Maximum number of grids/shelves | 9 (2 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 441 lbs (200 kg) |
| Maximum loading per slide-in drip tray | 8.8 lbs (4 kg) |
| Maximum loading per bottom drip tray | 8.8 lbs (4 kg) |
| Exterior Dimensions (W x H x D) | 32.4 x 61.1 x 26.9 inches (824 x 1552 x 684 mm) with castors |
| Standard works calibration certificate (measuring point chamber center) | +10°C, +37°C and 30°C/60% rh |
| Electrical | 115 V, 50/60 Hz, 1,450 Watts (230 V available) |
| Net weight approx. | 352.7 lbs (160 kg) |
| Gross weight (packed in carton) approx. | 478.4 lbs (217 kg) |
| Shipping Dimensions (W x H x D) | 36.6 x 69.3 x 36.6 inches (930 x 1760 x 930 mm) |
