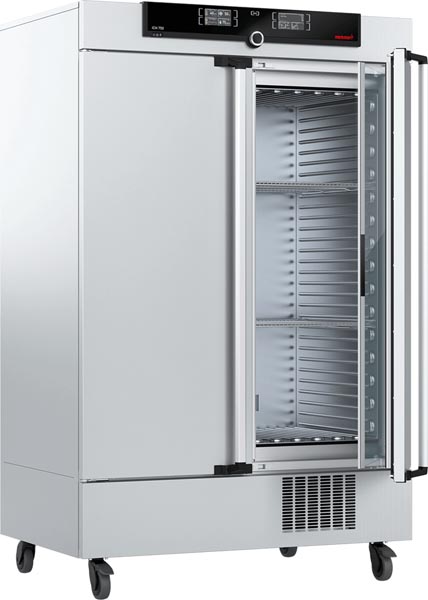

The Memmert ICH750 climate chamber has a capacity of 26.4 Cu Ft (749 L) with a temperature range of -12° to 60°C and comes with dual digital display controllers with programmaning. Memmert ICH climate chambers are environmentally friendly stability testing chambers. Temperature and humidity are distributed homogeneously and stable throughout the chamber.
Volume approx. | 26.4 Cu Ft (749 L) |
---|---|
Temperature range | +10°C to +60°C (with humidity) -10°C to +60°C (without humidity) (not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over.) |
Setting temperature range | -10°C to +60°C |
Setting accuracy °C | 0.1°C |
Humidity setting range | 10 to 80% rh |
Humidity setting accuracy | 0.5% rh |
Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
Interfaces | Ethernet and USB |
Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, inside glass door, fully insulated stainless steel door |
Interior | Stainless steel (ASTM 304) with all-round deep-drawn |
Door | Outside stainless steel, fully insulated, inside glass doors |
Convection | Forced ventilation by fan |
Includes | Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by silicone stopper, standard position at the back Water tank including connection hose |
Chamber Dimensions (W x H x D) | 40.9 x 47.2 x 23.6 inches (1040 x 1200 x 600 mm) |
Maximum number of grids/shelves | 14 (2 included) |
Maximum loading per grid/shelf | 66 lbs (30 kg) |
Maximum loading of chamber | 441 lbs (200 kg) |
Maximum loading per slide-in drip tray | 17.6 lbs (8 kg) |
Maximum loading per bottom drip tray | 17.6 lbs (8 kg) |
Exterior Dimensions (W x H x D) | 48.2 x 67.7 x 29.7 inches (1224 x 1720 x 755 mm) |
Standard works calibration certificate (measuring point chamber center) | +10°C, +37°C and 30°C/60% rh |
Electrical | 115 V, 50/60 Hz, 1,550 Watts (230 V available) |
Net weight approx. | 549 lbs (249 kg) |
Gross weight (packed in carton) approx. | 703.3 lbs (319 kg) |
Shipping Dimensions (W x H x D) | 52.4 x 84.6 x 41.3 inches (1330 x 2150 x 1050 mm) |
