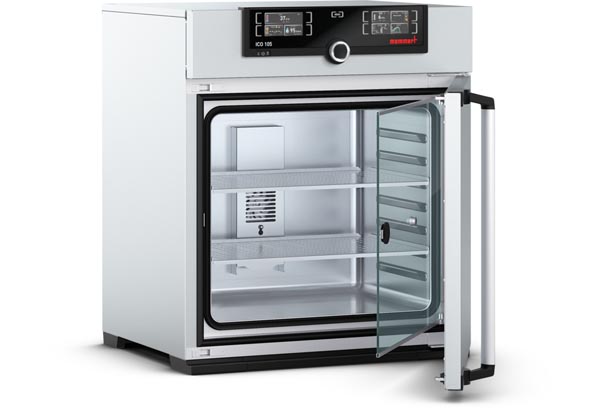

The Memmert ICO105 CO2 incubator has a capacity of 3.8 Cu Ft (108 L) with a temperature range of Ambient +5° to 50°C and comes with dual digital display controllers with programmaning. The control system of the Memmert CO2 incubator ICO is so finely tuned that the appliance reaches the setpoint temperature very quickly and without temperature overshoots. Alarm notifications to your mobile phone guarantee the safety of the chamber load, and the battery-buffered ControlCOCKPIT ensures continuous CO2 control even when there is a power failure. Ideal hygiene is a given too: rounded edges enable easy and thorough cleaning, the interior can be sterilised within 60 minutes at 180°C.
| Volume approx. | 3.8 Cu Ft (107 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +50°C |
| Setting temperature range | +18°C to +50°C |
| Setting accuracy °C | 0.1°C |
| Temperature fluctuations with time at +37°C | ±0.1°C |
| Temperature variation in chamber at +37°C | ±0.3°C |
| Humidity control | Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93% rh ±2.5% |
| Humidity setting range active humidity control (with option K7) | 40% to 90% and rh-Off |
| Humidity setting accuracy | 0.5% |
| CO2/O2 Control | Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation |
| CO2 Range | 0% to 20% |
| CO2 variation in time | ±0.2% |
| CO2 setting accuracy | 0.1% |
| O2 range | 1% to 20% |
| O2 setting accuracy | 0.1% |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, heated inner glass door, fully insulated stainless steel door |
| Interior | Stainless steel, material 1.4301 (ASTM 304), deep-drawn, seamlessly welded |
| Automatic sterilisation | Humidity and CO2 sensor sterilised inside the incubator |
| Chamber Dimensions (W x H x D) | 22 x 18.9 x 15.7 inches (560 x 480 x 400 mm) |
| Maximum number of grids/shelves | 6 (2 included) |
| Maximum loading per grid/shelf | 33.1 lbs (15 kg) |
| Maximum loading of chamber | 198.4 lbs (90 kg) |
| Exterior Dimensions (W x H x D) | 28.3 x 33.5 x 23.3 inches (719 x 850 x 591 mm) |
| Standard works calibration certificate (measuring point chamber center) | +37°C, 5% CO2 |
| Sterilisation program | 60 minutes at 180°C |
| Electrical | 115 V, 50/60 Hz, 1,300 Watts (230 V available) |
| Net weight approx. | 165.3 lbs (75 kg) |
| Gross weight (packed in carton) approx. | 220.5 lbs (100 kg) |
| Shipping Dimensions (W x H x D) | 31.5 x 40.6 x 31.5 inches (800 x 1030 x 800 mm) |
