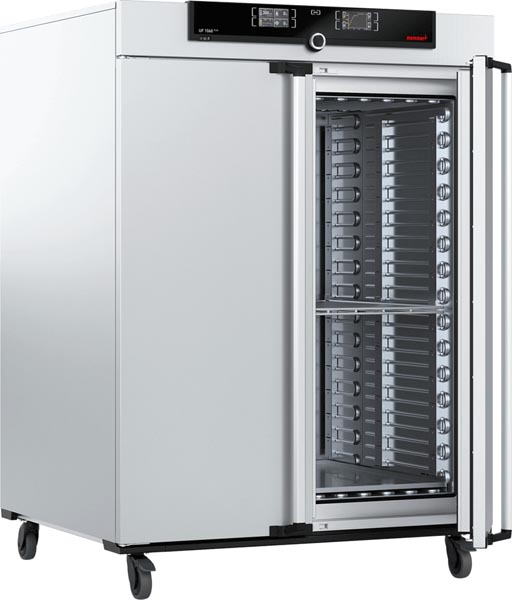

The Memmert UF1060PLUS forced convection lab oven has a capacity of 37.4 Cu Ft (1,060 L) with a temperature range of Ambient +10° to 300°C and comes with dual digital display controllers with programmaning. Memmert UFplus series forced convection heating and drying ovens offer 300°C maximum temperatures with digital control and dual TwinDISPLAY. These ovens have universal applicability to heating and drying applications in industry, science and research institutes and combine top precision and safety with optimal operating comfort.
Volume approx. | 37.4 Cu Ft (1,060 L) |
---|---|
Temperature range | +10°C above ambient temperature to +300°C |
Setting temperature range | +20° to +300°C |
Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
Interfaces | Ethernet and USB |
Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath |
Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
Chamber Dimensions (W x H x D) | 40.9 x 47.2 x 33.5 inches (1040 x 1200 x 850 mm) |
Maximum number of grids/shelves | 14 (2 included) |
Maximum loading per grid/shelf | 44 lbs (20 kg) |
Maximum loading of chamber | 661 lbs (300 kg) |
Maximum loading per slide-in drip tray | 17.6 lbs (8 kg) |
Maximum loading per bottom drip tray | 17.6 lbs (8 kg) |
Exterior Dimensions (W x H x D) | 48.2 x 67.7 x 40.7 inches (1224 x 1720 x 1035 mm) |
Standard works calibration certificate (measuring point chamber center) | °C +160 |
Electrical | 208 V, 50/60 Hz, 5700 Watts, 15.9 amps |
Net weight approx. | 555.6 lbs (252 kg) |
Gross weight (packed in carton) approx. | 917.1 lbs (416 kg) |
Shipping Dimensions (W x H x D) | 53.9 x 77.6 x 51.2 inches (1370 x 1970 x 1300 mm) |
