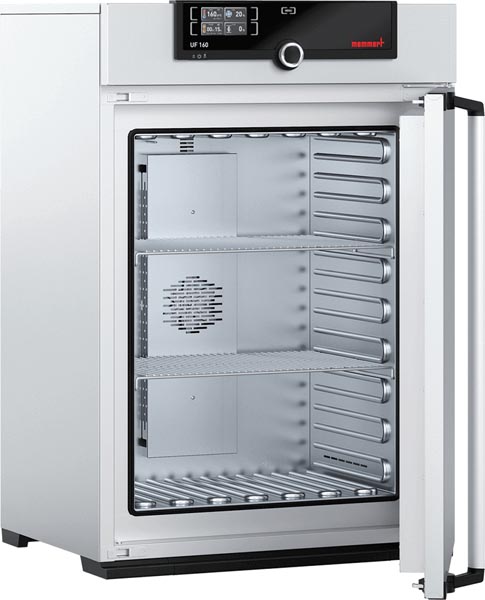

The Memmert UF160 forced convection lab oven has a capacity of 5.9 Cu Ft (161 L) with a temperature range of Ambient +10° to 300°C and comes with single digital display controller. Memmert UF series forced convection heating and drying ovens offer 300°C maximum temperatures with digital control. These ovens have universal applicability to heating and drying applications in industry, science and research institutes and combine top precision and safety with optimal operating comfort.
| Volume approx. | 5.9 Cu Ft (161 L) |
|---|---|
| Temperature range | +10°C above ambient temperature to +300°C |
| Setting temperature range | +20° to +300°C |
| Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
| Contoller | SingleDISPLAY: TFT color touchscreen, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed |
| Interfaces | Ethernet |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath |
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Chamber Dimensions (W x H x D) | 22 x 28.3 x 15.7 inches (560 x 720 x 400 mm) |
| Maximum number of grids/shelves | 8 (2 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 463 lbs (210 kg) |
| Maximum loading per slide-in drip tray | 6.6 lbs (3 kg) |
| Maximum loading per bottom drip tray | 6.6 lbs (3 kg) |
| Exterior Dimensions (W x H x D) | 29.3 x 43.5 x 23 inches (745 x 1104 x 584 mm) |
| Standard works calibration certificate (measuring point chamber center) | °C +160 |
| Electrical | 115 V, 50/60 Hz, 1800 Watts (230 V available) |
| Net weight approx. | 211.6 lbs (96 kg) |
| Gross weight (packed in carton) approx. | 269 lbs (122 kg) |
| Shipping Dimensions (W x H x D) | 32.7 x 51.2 x 31.5 inches (830 x 1300 x 800 mm) |
