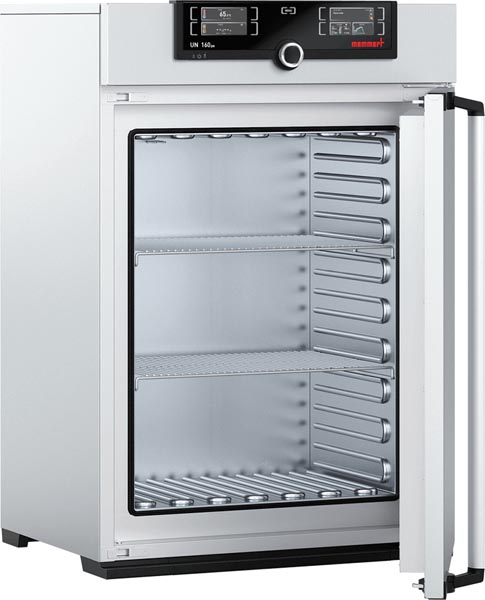

The Memmert UN160PA natural convection paraffin oven has a capacity of 5.9 Cu Ft (161 L) with a temperature range of Ambient +5° to 80°C and comes with dual digital display controllers with programmaning. Memmert UNpa paraffin ovens feature high-precision temperature control of the embedding medium paraffin in science and research. The range of functions and thermal safety of paraffin ovens UNpa are designed specifically for absolutely reliable sample preparation in the laboratory. The benefits for the user are an optimal cos/benefit ratio for an appliance that guarantees, for many years, precise and even temperature control for embedding media without any loss in quality whatsoever.
| Volume approx. | 5.9 Cu Ft (161 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +80°C |
| Setting temperature range | +20° to +80°C |
| Setting accuracy °C | 0.1°C |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath, nearly gastight |
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Chamber Dimensions (W x H x D) | 22 x 28.3 x 15.7 inches (560 x 720 x 400 mm) |
| Maximum number of grids/shelves | 8 (2 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 463 lbs (210 kg) |
| Maximum loading per slide-in drip tray | 6.6 lbs (3 kg) |
| Maximum loading per bottom drip tray | 6.6 lbs (3 kg) |
| Exterior Dimensions (W x H x D) | 29.3 x 43.5 x 23 inches (745 x 1104 x 584 mm) |
| Standard works calibration certificate (measuring point chamber center) | °C +80 |
| Electrical | 115 V, 50/60 Hz, 1800 Watts (230 V available) |
| Net weight approx. | 211.6 lbs (96 kg) |
| Gross weight (packed in carton) approx. | 269 lbs (122 kg) |
| Shipping Dimensions (W x H x D) | 32.7 x 51.2 x 31.5 inches (830 x 1300 x 800 mm) |
