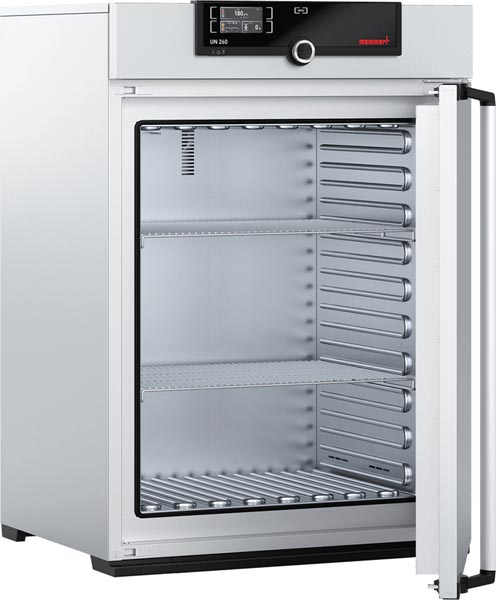

The Memmert UN260 natural convection lab oven has a capacity of 9 Cu Ft (256 L) with a temperature range of Ambient +5° to 300°C and comes with a single digital display controller. Memmert UN series natural convection heating and drying ovens offer 300°C maximum temperatures with digital control. These ovens have universal applicability to heating and drying applications in industry, science and research institutes and combine top precision and safety with optimal operating comfort.
Volume approx. | 9 Cu Ft (256 L) |
---|---|
Temperature range | +5°C above ambient temperature to +300°C |
Setting temperature range | +20° to +300°C |
Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
Contoller | SingleDISPLAY: TFT color touchscreen, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed |
Interfaces | Ethernet |
Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath |
Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
Chamber Dimensions (W x H x D) | 25.2 x 31.5 x 19.7 inches (640 x 800 x 500 mm) |
Maximum number of grids/shelves | 9 (2 included) |
Maximum loading per grid/shelf | 44 lbs (20 kg) |
Maximum loading of chamber | 661 lbs (300 kg) |
Maximum loading per slide-in drip tray | 8.8 lbs (4 kg) |
Maximum loading per bottom drip tray | 8.8 lbs (4 kg) |
Exterior Dimensions (W x H x D) | 32.4 x 46.6 x 26.9 inches (824 x 1183 x 684 mm) |
Standard works calibration certificate (measuring point chamber center) | °C +160 |
Electrical | 115 V, 50/60 Hz, 1800 Watts (230 V available) |
Net weight approx. | 242.5 lbs (110 kg) |
Gross weight (packed in carton) approx. | 354.9 lbs (161 kg) |
Shipping Dimensions (W x H x D) | 36.6 x 54.3 x 36.6 inches (930 x 1380 x 930 mm) |
