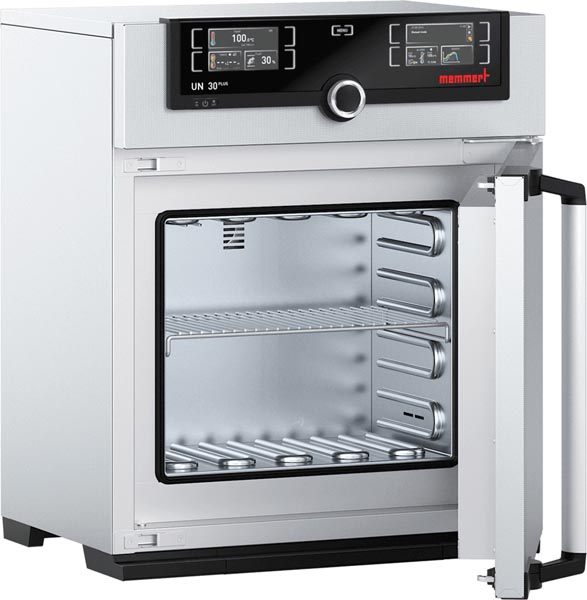

The Memmert UN30PLUS natural convection lab oven has a capacity of 1.1 Cu Ft (32 L) with a temperature range of Ambient +5° to 300°C and comes with dual digital display controllers with programmaning. Memmert UNplus series natural convection heating and drying ovens offer 300°C maximum temperatures with digital control and dual TwinDISPLAY. These ovens have universal applicability to heating and drying applications in industry, science and research institutes and combine top precision and safety with optimal operating comfort.
| Volume approx. | 1.1 Cu Ft (32 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +300°C |
| Setting temperature range | +20° to +300°C |
| Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath |
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Chamber Dimensions (W x H x D) | 15.7 x 12.6 x 9.8 inches (400 x 320 x 250 mm) |
| Maximum number of grids/shelves | 3 (1 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 132 lbs (60 kg) |
| Maximum loading per slide-in drip tray | 3.3 lbs (1.5 kg) |
| Maximum loading per bottom drip tray | 3.3 lbs (1.5 kg) |
| Exterior Dimensions (W x H x D) | 23 x 27.7 x 17.1 inches (585 x 704 x 434 mm) |
| Standard works calibration certificate (measuring point chamber center) | °C +160 |
| Electrical | 115 V, 50/60 Hz, 1600 Watts (230 V available) |
| Net weight approx. | 99.2 lbs (45 kg) |
| Gross weight (packed in carton) approx. | 134.5 lbs (61 kg) |
| Shipping Dimensions (W x H x D) | 26 x 35 x 25.6 inches (660 x 890 x 650 mm) |
