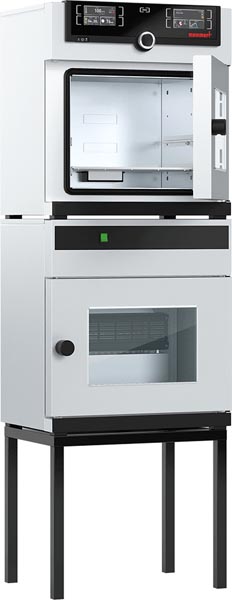

The Memmert VO29 vacuum oven has a capacity of 1 Cu Ft (29 L) with a temperature range of Ambient +5° to 200°C and comes with dual digital display controllers with programmaning. Memmert VO vacuum ovens features the high-performance turbo dryer which impresses with its many intelligent features for gentle drying and precise, rapid temperature control, digital pressure control, directly heated and individually controllable thermoshelves, and simple programming via ControlCOCKPIT or AtmoCONTROL software. Combined together, the speed-controlled vacuum pump and the vacuum oven VO are an unbeatable energy-efficient pairing. The pump fits neatly inside the matching lower chamber.
| Volume approx. | 1 Cu Ft (29 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +200°C |
| Setting temperature range | +20° to +200°C |
| Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
| Temperature variation in Time (aluminum thermoshelf) | ≤±0.3 K |
| Temperature uniformity (surface) at +160°C / 20 mbar (aluminum thermoshelf) | ≤±2.5 K |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Control technology | Digital over and undertemperature monitor, temperature monitoring band automatically linked to the setpoint (ASF), monitor relay for reliable heating cut-off in case of default, mechanical temperature limiter (TB), multi-level-overtemperature (MLOP) for each thermoshelf |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, safety glass door with inner bullet-proof glass and external anti-splinter screen |
| Interior | Stainless steel interior, material 1.4404 (ASTM 316L), hermetically welded, with removable mountings at the sides for cleaning, including thermoshelf guide bars, as well as mounting on top to avoid turbulences |
| Vacuum connection | Small flange DN16, and gas inlet with fresh air supply |
| Vacuum control | Digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Adjustable from 5 mbar up to 1100 mbar. Programmable, digitally controlled inlet for air |
| Pump control | Optimised rinsing procedures for the pump membranes as well as signal output for pump ON/OFF |
| Air intake | Rapide aire intake for door opening without alteration of selected vacuum setpoint |
| Permitted final vacuum | 0.01 mbar |
| Maximum leakage rate | 0.01 bar/h |
| Chamber Dimensions (W x H x D) | 15.2 x 12 x 9.8 inches (385 x 305 x 250 mm) |
| Distance between thermoshelves | 3 inches (75 mm) |
| Maximum load per oven | 88.2 lbs (40 kg) |
| Maximum number of thermoshelves | 1 |
| Maximum number of thermoshelves (with premium module) | 2 |
| Maximum loading per thermoshelf | 44 lbs (20 kg) |
| Exterior Dimensions (W x H x D) | 21.7 x 23.9 x 15.7 inches (550 x 607 x 400 mm) (door handle adds 38 mm) |
| Safety glass door | Textured stainless steel frame with spring-loaded safety glass on inside and anti-splinter screen ESG on outside of door |
| Door seal | Endless silicone profile seal |
| Thermoshelves | aluminium eloxadised , mat. 3.3547 (ASTM B209) - with integrated large-area heating including local temperature sensing (Pt100, 4-wire-circuit); individual overtemp. protection for each shelf. Further data see stainless steel number inner working chamber |
| Standard works calibration certificate | +160°C at 20 mbar pressure measured in the middle point of the shelf. A separate certificate is provided for each thermoshelf ordered and shipped together with the vacuum oven |
| Electrical | 230 V, 50/60 Hz, 820 Watts |
| Net weight approx. | 121 lbs (55 kg) |
| Gross weight (packed in carton) approx. | 168 lbs (76 kg) |
| Shipping Dimensions (W x H x D) | 26 x 34.3 x 23.2 inches (660 x 870 x 590 mm) |
