Description

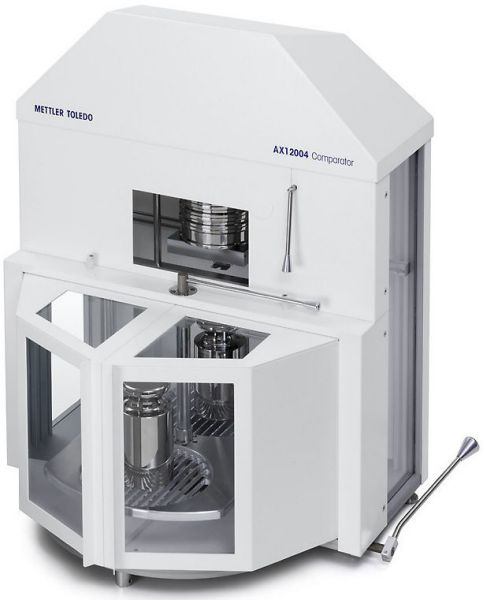

The AX 12004 comparator balance is equipped with an unique 2-position manual weight handler, which meets the highest requirements for accuracy and reliability in the determination of weight pieces up to 12 kg. It is designed to meet requirements of National Institute of Metrology, national and industrial calibration laboratories, weights and measures offices and verification offices for legal metrology weights.

  • 2-position manual turntable
  • Large draft shield – enhanced stability of measurement
  • Manual dial weight – large weighing range
  • WeighCom application – userfriendly menu-guided mass comparison process
Technical Specifications:
Capacity12,111 g (12 kg)
Readability0.1 mg
Pan Size2 positions, manual weight handler
Electrical weighing range0?Ǫ111 g
Repeatability (standard deviation of 10 comparison weighings ABA after elimination of drift)0.25 mg
Typical repeatability0.15 mg
Dial weights5 kg, 3 kg, 2 kg, 1 kg, 1 kg
Linearity0.3 mg
Typical stabilization time20?Ǫ40 sec
AdjustmentWith built-in 100 g weight
Adjustment with external weight100 g
Sensitivity drift±1.5 x10-6
Weight handler2 positions, manual
Maximum weight diameter34 - 220 mm
Maximum weight height230 mm
Backlit graphics display with touch-screen operationStandard
"WeighCom" application for guided mass comparison applicationStandard
Temperature (°C) (±1 °C)17?Ǫ27 °C
Max. temperature change (°/24h)0.2
Relative air humidity (%) (±2%)45 - 60
Comparator with weight handler800 x 620 x 950 mm; 60 kg
Display unit224 x 366 x 94 mm; 2.5 kg
AC adapter115 x 140 x 53 mm; 1.2 kg
