SKU
AX2005

Description

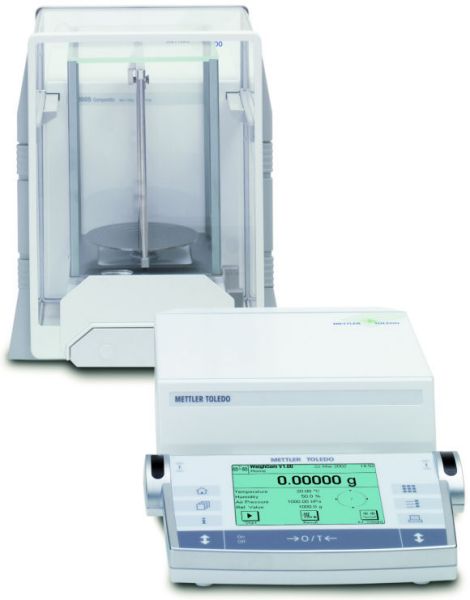

The AX2005 is a comparator balance for mass comparison or comparison weighing of weight pieces and other objects from 998 g up to 2,109 g with 0.01 mg (10 µg) readability. It has a suspended weighing pan to eliminate eccentric load errors virtually completely and to increase accuracy effectively.

  • Suspended weighing pan to eliminate eccentric load errors virtually completely and to increase accuracy effectively
  • Graphic display with touch screen operation
  • WeighCom application for guided mass comparison
  • Download software from the Internet
  • SmartSens for hands-off operation
  • Below-the-balance weighings (e.g. density determinations)
Technical Specifications:
Capacity2,109 g
Readability0.01 mg
Pan SizeHanging 100 mm Ø
Repeatability0.04 mg
Settling time (typical)10...20 s
Adjustment with internal weightsat a keystroke
Electrical weighing range0...109 g
Linearity± 0.12 mg
Dialing weights500. 300. 100. 100 g
Adjustment with external weights100 g
Temperature (°C)(+/- 1°C)10...30 °C
Max. temperature change (°C/24h)0.5
Relative air humidity (%) (+/-2%)40 - 70 %
Display unit224 x 366 x 94 mm
AC adapter115 x 140 x 53 mm
Klimet A30optional
Sensitivity drift± 1. 5 ppm / °C
External draft shieldoptional
Front glass (coated)standard
Weighing pan diameterhanging 100 mm
Free space for weighing pan135 mm
Weights included in delivery2 kg E2-OIML
Feedthrough for below-the-balance weighingstandard
Balances241 x 433 x 289 mm
MCLink softwareoptional
GA42 printeroptional
Additional internal draft shieldstandard
