SKU
R5
  • $16,598.80
  • $17,740.00 You Save 6.43%

Description

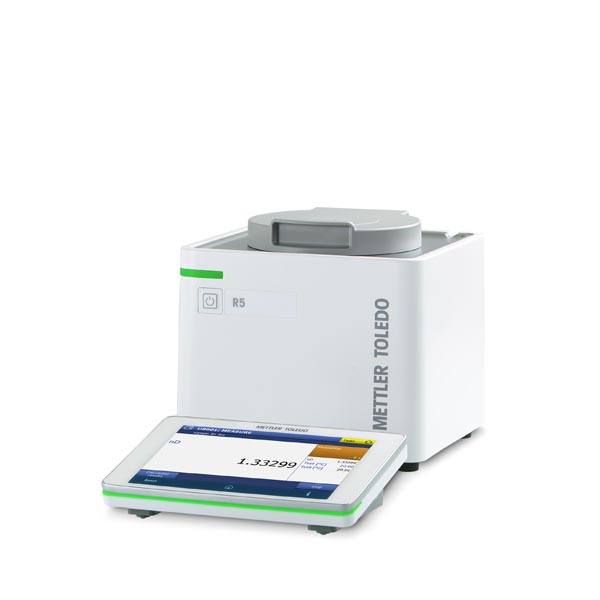

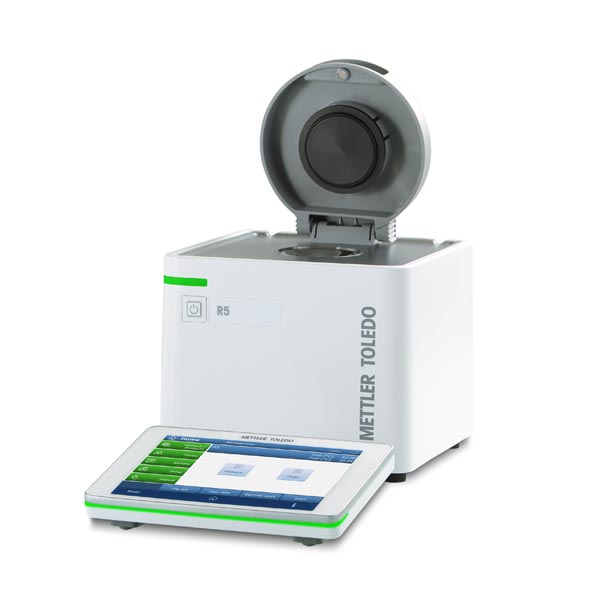

The Mettler Toledo R5 Excellence Series refractometer has a measurement range of 1.32 to 1.58 refractive index (nD) and 0 to 100 Brix. Developed for a broad range of industries, METTLER TOLEDO's Excellence Refractometers can measure almost any sample with a very high accuracy. With measurements of up to five decimal places, intuitive operation, and a modular workflow, you can easily terminate inaccuracy and generate repeatable, accurate results. Excellence benchtop refractometers: The perfect solution today, a valuable foundation tomorrow. Excellence Refractive Index cells can be added to a multiparameter system that combines refractive index measurements with density, pH, color, titration, and more to prevent the alteration of samples between individual analyses. Increase throughput and automate your workflow while ensuring that all steps are performed the same way each time.

  • Accurate and reliable results
    Brix, refractive index and more: Our refractometers master measurements of a wide variety of challenging samples with high repeatability and an accuracy of up to 5 decimal places.
  • One Click operation

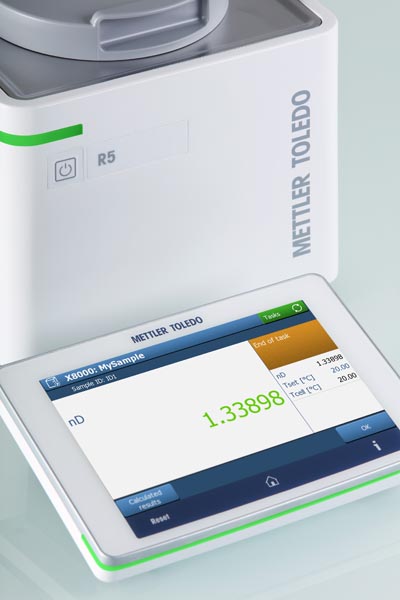

    The large touchscreen terminal with the intuitive One Click user interface minimizes training and operator influence. Simply press on the pre-programmed shortcut to run your analysis. The instrument status light will show you if it is ready, busy, or waiting for operator interaction.
  • Immediate QC results
    Set up a range of acceptable limits for your samples: Results that fall within this range are color-coded, enabling instant identification of accepted and rejected samples.
  • Seamless modulartity
    Refractive index and density are frequently determined for the same sample. Our space-saving system enables you to combine a density meter with a refractive index cell to measure both parameters in one go.
  • 1 year warranty
Technical Specifications:
Measuring Range1.32 - 1.58 Refractive Index (nD)
0 - 100 Brix (% w/w)
Accuracy±0.00002 around adjustment point (±0.00004 entire range) (nD)
±0.014 Brix (% w/w)
Repeatability±0.00001 (nD)
±0.01 Brix (% w/w)
Resolution0.00001 (nD)
Temperature Range5 - 75°C (41 - 167°F)
Temperature Accuracy±0.03°C (from 15 - 50°C)
±0.05 (from 5 to 75°C)
Measurement ScalesIntegrated concentration tables and functions:
nD
Zeis (14.45)
Zeiss (15.00)
acid/base scales
salt
chemicals
freezing point scales
Sugar:
Brix
HFCS 42/55
Inverst Sugar
Oechsle
Up to 30 user-defined concentration tables (can be entered as tables or formulas)
Internal Results StorageMaximum number of results: 200
Color-coded Results IdentificationYes
User ManagementYes
Password ProtectionYes
LanguagesEnglish, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Polish
Display / User Interface7 inch display with color touchscreen
Connectivity3 x USB host (printer, memory stick, barcode reader, hub, keyboard, mouse)
USB client (PC Software)
Ethernet (Network and PC Software)
RS232 (Automation units)
CAN (Multiple LevelSens)
HDMI (Terminal)
PC SoftwareLabX® PC Software
Dimensions (W x H x D)208 x 226 x 192.5 mm (8.2 x 8.9 x 7.6 inches)
Weight4.8 kg (10.6 lbs)
