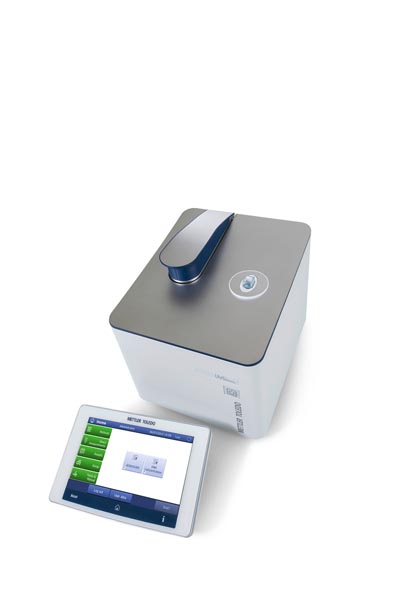

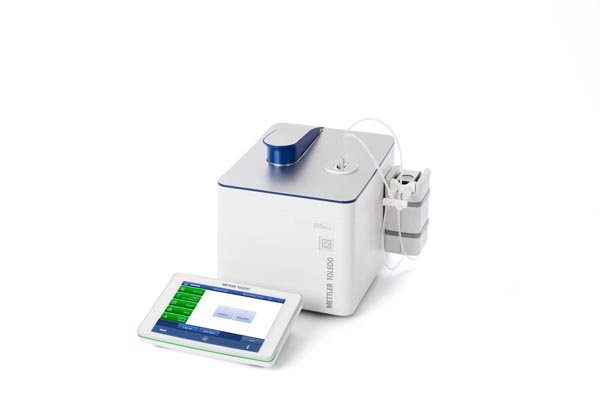

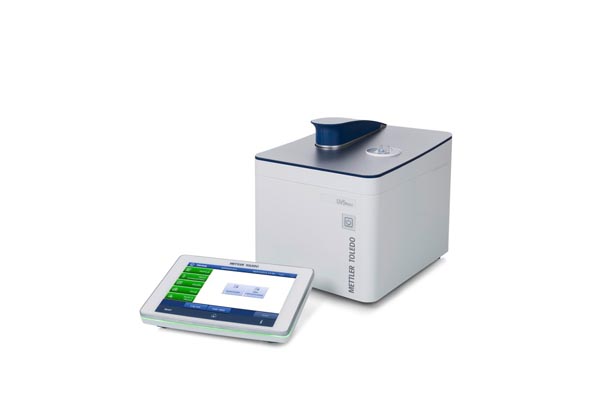

Mettler Toledo UV5NANO Excellence Spectrophotometer

The Mettler Toledo UV5Nano Excellence spectrophotometer optimizes spectroscopic workflows in life sciences - FastTrack™ technology enables speedy and reliable measurements, with One Click™ touchscreen operation becomes intuitive and efficient and LockPath™ technology ensures accurate micro-volume measurements. The UV5Nano combines micro-volume and cuvette measurements.

• Accurate micro-volume measurements
• Wide concentration measuring range
• Powerful compactness
• Direct Bio measurements and specific methods
• Support of the most widely used color maps and numbers

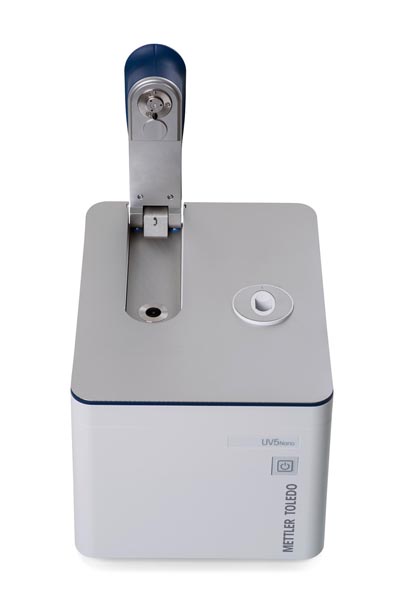

• Measure directly on the integrated optical cell thanks to ingenious light deflection off the mirror in the arm.
• Repeatable and exact automatic pathlength adjustment at 0.1 and 1 mm
• Exclusion of pathlength drift thanks to the rugged, patented design - expensive recalibration and downtime are excluded
• Secure locking of the arm during the measurement at the selected pathlength

Technical Specifications:

Optical Performance	Wavelength range [nm] 190 - 1100 nm Resolution (toluene in hexane) > 1.7 Wavelength accuracy (measured with NIST2034 holmium oxide) [nm] ±0.9 Photometric accuracy (measured with NIST935 potassium dichromate) [A] ±0.006 (≤ 1A) Photometric repeatability (measured with NIST935 potassium dichromate) [A] < 0.003 Stray light at 198 nm (measured with KCl) > 1.7 A (< 1.0% T) Stray light at 220 nm (measured with KI) > 3.4 A or < 0.03% T Stray light at 340 nm (measured with NaNO2) > 3.7 A or < 0.02% T Noise [A] < 0.003 Baseline flatness [A] < 0.003 Minimal scan time full range [s] 1
On Click™ UV/VIS Spectroscpy	24 shortcuts per user
Applications & Methods	4 direct measurements 21 pre-defined METTLER TOLEDO methods Method editor 50 maximum number of methods Pre-defined bio applications: Protein, nucleic acids, protein (dye), nucleic acids (dye), protein assay, OD600 Pre-defiend shortcuts for bio applications: dsDNA, RNA, Protein 280, Bradford, Lowry, OD600
Results	50 results stored in instrument Result storage on USB stick Result transfer via TCP on remote PC
PC Software	LabX® UV/VIS software
Languages	English, German, French, Spanish, Italian, Chinese, Russian, Portuguese, Japanese
Connectivity	USB devices (memory stick for results storage, bar code reader, printer) Interfaces: Ethernet (PC, network printer), RS232-C

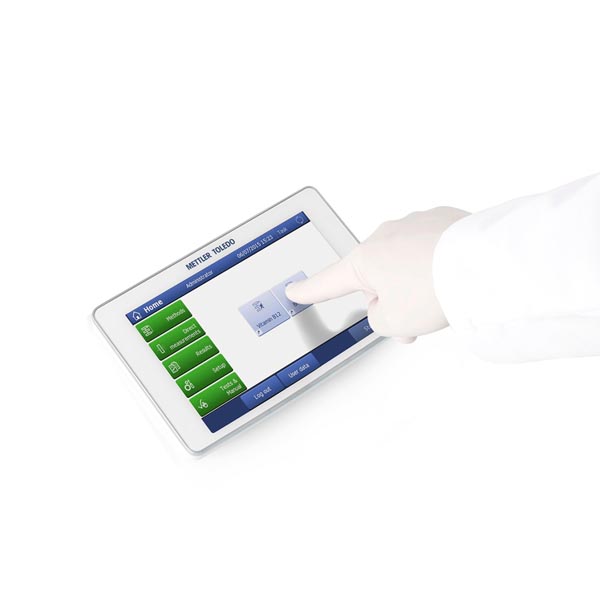

Terminal	7 inch QVGA Color TFT 800 x 480 resolution touch sensitive screen
Instrument Dimensions	208 x 255 x 217 mm (WxDxH) (without terminal)
Weight	15.9 lbs / 7.2 kg (including terminal)
