SKU
SG23-ELK
  • $1,654.20
  • $1,985.00 You Save 16.66%

Description

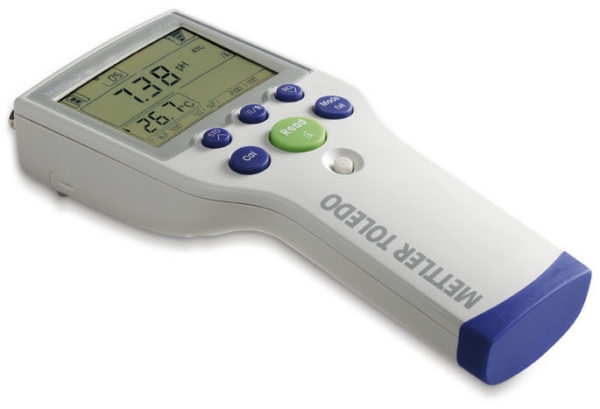

SevenGo Duo™ combines user-friendliness, quality and reliable measurements. The meter is designed so that a single keystroke triggers a calibration or measurement or allows accessing stored results or system settings. The kit versions are also well suited for outdoor use or use in the production area because both the meter and the sensors are watertight (IP67).

The revolutionary intelligent sensor management system (ISM®) offers the user an even greater level of security. The calibration data is stored on the chip in the sensor and is used automatically when the sensor is connected to the meter. This ensures that the meter always uses the latest calibration data.

  • Portable dual-channel meter for the determination of pH, mV, conductivity, TDS (total dissolved solids), salinity and specific resistance
  • 3-point pH calibration with selection from 4 predefined and one user-defined buffer groups
  • Data memory for 99 GLP data records
  • Intelligent sensor management (ISM®)
  • Outstanding operation due to high-contrast display with large figures
  • Reproducible results due to automatic end point detection, automatic buffer detection and temperature compensation
  • Rugged watertight housing (IP67)
  • SG23-ELK Electrode Kit includes: meter, InLab® Expert Pro-ISM and InLab® 738-ISM (both IP67, 2 m cable) and 2-electrode clip
  • ORPedox application requires separate ORPedox Electrode, not included with meters & kits
Technical Specifications:
pH-range0.00 ... 14.00
pH-resolution0.01
pH-relative accuracy±0.01
mV-range-1999 ... 1999
mV-resolution1
mV-relative accuracy±1
Temperature range °CpH/mV: -5.0 ... 105/LF: -5.0 ... 105.0
Temperature resolution °CpH/mV: 0.1/LF: 0.1
Temperature accuracy °CpH/mV: ±0.5/LF: ±0.2
CalibrationMax. 3 points, 4 predefined buffer groups
Free disk space99 data records
DisplayLCD
Power supply4 AA batteries 1.5 V or NiMH accumulator 1.3 V
Operating environment0 ... 40°C; 5 ... 85% relative humidity (no cond.)
Conductivity range0.10 µS/cm ... 500 mS/cm
Cond. accuracy± 0.5% maximum value in subrange
Cond. resolution0.01 ... 1
TDS range0.1 mg/L ... 300 g/L
Salinity range0.00 ... 80.00 ppt
TDS resolution0.01 ... 1
TDS accuracy±0.5% maximum value in subrange
Resistivity range0.00 ... 100.00 MOhm*cm
Electrode SuppliedInLab®Expert Pro-ISM and InLab®738-ISM
