Description

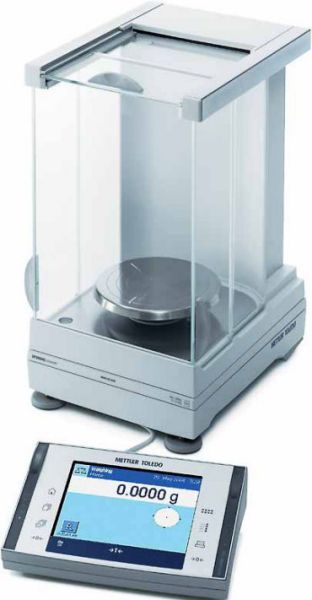

Designed for optimal performance in ISO/GLP areas. The XP Comparators meets all requirements of quality management areas. The XP Comparators are delivered with state-of-the art technology: -"touch screen" operation and color display- intelligent user guidance for mass determination process: The WeighCom application, - The self-centering device: Levelmatic, - The draftshield with patented sliding doors: pro Draftshield and - download from the Internet for future software releases.

  • Performance – high-precision mass comparator
  • SmartScreen – easy-to-use touch screen
  • LevelMatic – for reduced cornerload error
  • Draft shield – for enhanced measurement stability
  • WeighCom application – for user-friendly menu-guided mass-comparison processes
  • Connectivity – for fast and easy data handling
Technical Specifications:
Capacity2,300 g
Readability1 mg
Pan Size125 x 125 mm
Repeatability (standard deviation of 10 comparison weighing ABA after elimination of drift)1 mg
Typical repeatability0.8 mg + 9x10-8?ÇóR_gr
Linearity5 mg
Typical stabilization time2?Ǫ10 s
AdjustmentproFACT
Adjustment with external weight>=500 g
Sensitivity drift±10-6
Levelmatic weighing panOptional
Free space above weighing pan235 mm
Feedthrough for below-the-balance weighingStandard
Backlit color graphics display with touch screen operationStandard
WeighCom application for guided mass comparison applicationStandard
Temperature (°C)10?Ǫ30 °C
Max. temperature change (°/24 h)0.5
Relative air humidity (%) (±2%)40-70
Dimensions (WxDxH) / Net weight214 x 257 x 363 mm / 7.1. kg
Display unit194 x 133 x 58 mm / 1.2 kg
AC adapter108 x 67 x 37 mm / 0.3 kg
