Description

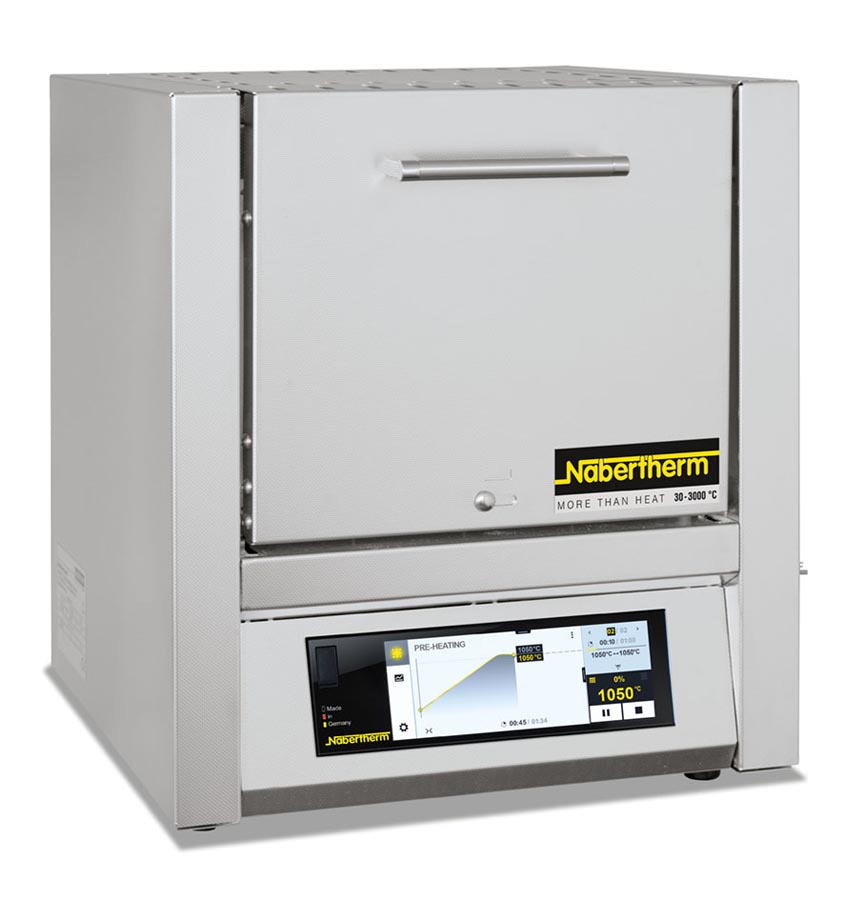

The Nabertherm L5/14/C550 Muffle Furnace is a compact, high-performance solution for laboratories requiring ultra-high temperatures. With a 5-liter chamber and a maximum temperature of 1400°C, this muffle furnace is ideal for advanced sintering, annealing, and material testing. Its high-quality fiber insulation ensures rapid heat-up and energy efficiency, while the C550 controller offers programmable multi-segment profiles for tailored thermal cycles. The stainless-steel housing resists corrosion, ensuring durability. Safety features include an over-temperature limiter and door safety switch, making this furnace a reliable choice for precision-driven labs.

  • Tmax 1400°C
  • Heating from two sides
  • Heating elements on support tubes ensure free heat radiation and a long service life

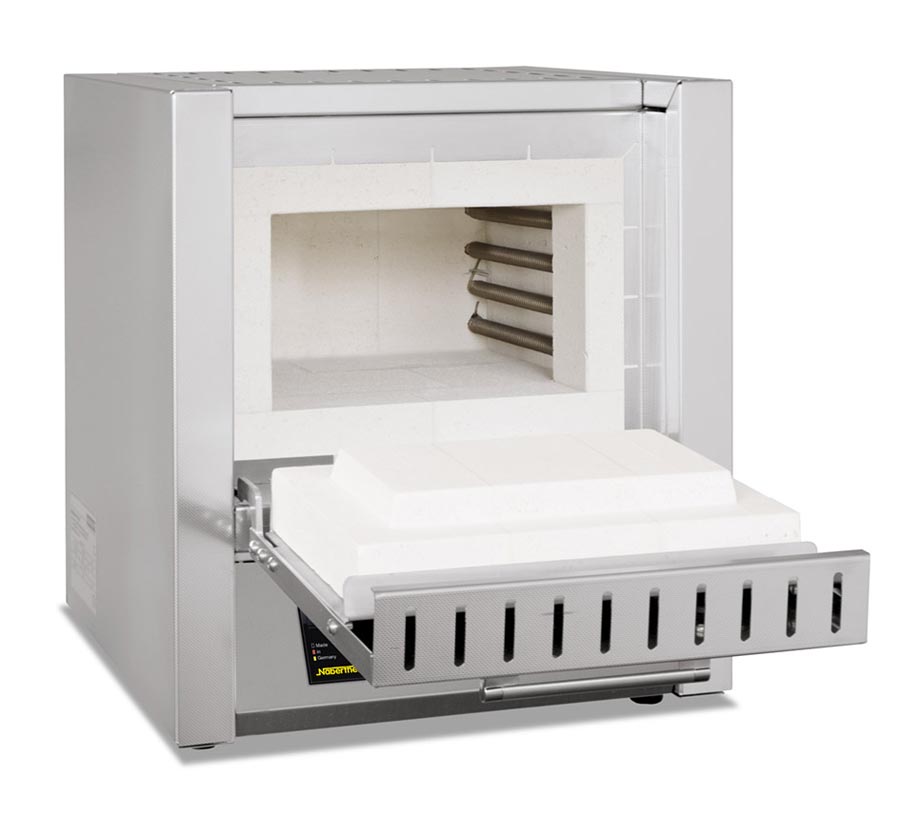

  • Flap door (L) which can be used as work platform or lift door
  • Adjustable air inlet in the furnace door
  • Exhaust air outlet in rear wall of furnace
  • Controller C550 (10 programs of 20 steps)
  • 1 year warranty
Technical Specifications:
Maximum Temperature1,400°C
Volume5 Liter (0.18 cu ft)
Chamber Dimensions (W x D x H)200 x 170 x 130 mm
7.9 x 6.7 x 5.1 inches
Outer Dimensions (W x D x H)490 x 450 x 580 mm
15.2 x 15.4 x 18.1 inches
Temperature Uniformity of ± 5K in the empty workspace (W x D x H)170 mm x 100 mm x 80 mm
Max. connected Load in kW2.4 kW
Electrical Connection240 Volt, 50/60 Hz, 1-phase
Weight42 kg (92.6 lbs)
Heating time50 minutes
Door TypeFlip down shelf
ControllerC550 10 programs of 20 segments

Ideal for:

  • Advanced Material Labs
  • Pharmaceutical R&D
  • University Research Labs
  • Ceramics Production
  • Quality Control Facilities

Frequently Asked Questions:

Q. What is the chamber capacity of the L5/14/C550?
A. It has a 5-liter chamber, ideal for small to medium samples.

Q. Can it reach temperatures above 1300°C?
A. Yes, it achieves up to 1400°C for advanced thermal processes.

Q. Is it energy-efficient?
A. High-quality fiber insulation reduces heat loss, lowering energy costs.

Q. What safety features are included?
A. It includes an over-temperature limiter and door safety switch.
