SKU
LE 14/11 208V
  • $5,694.00
  • $6,570.00 You Save 13.33%

Description

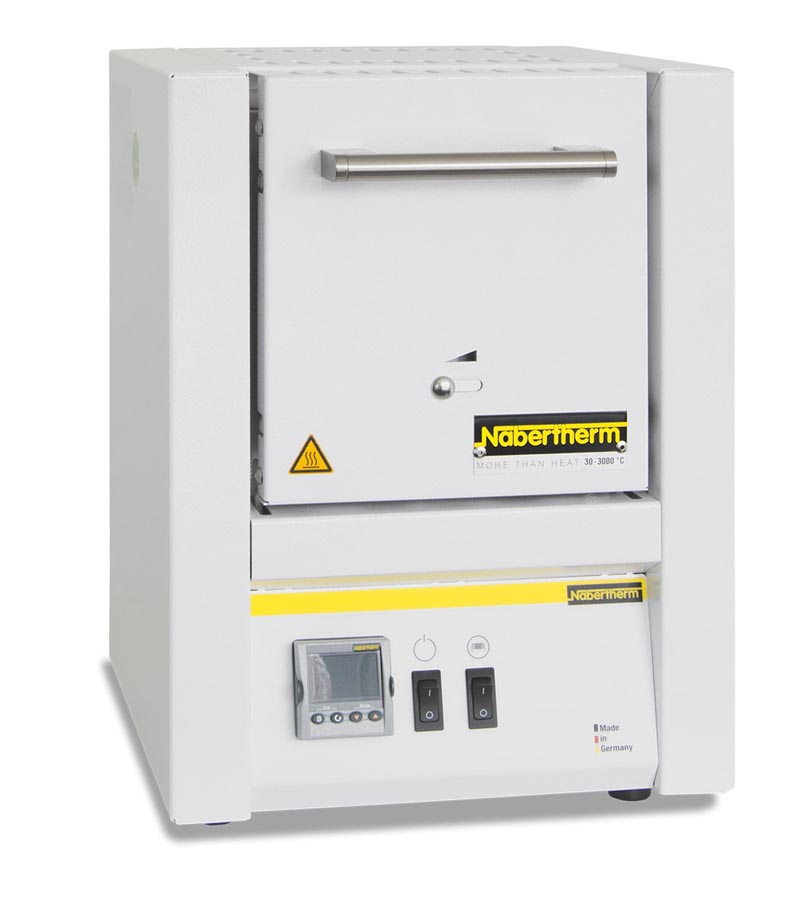

The Nabertherm LE/14/11 208V Economy Muffle Furnace is a cost-effective solution for labs needing reliable thermal processing up to 1,100°C. With a 14-liter capacity, this furnace is ideal for ashing, sintering, and quantitative analysis. Its simple controller ensures straightforward operation, while the ceramic muffle delivers durability for daily use. The flap door design enhances accessibility, and the furnace's insulation maintains consistent heat distribution. This muffle furnace combines affordability with performance, making it a practical choice for budget-conscious laboratories seeking quality and reliability.

  • Tmax 1,100°C
  • Heating from two sides from heating elements protected in quartz glass tubes
  • Fast heating times
  • Maintenance-friendly replacement of heating elements and insulation
  • Housing coated in RAL 9003
  • Solid state relays provide for lownoise operation
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)

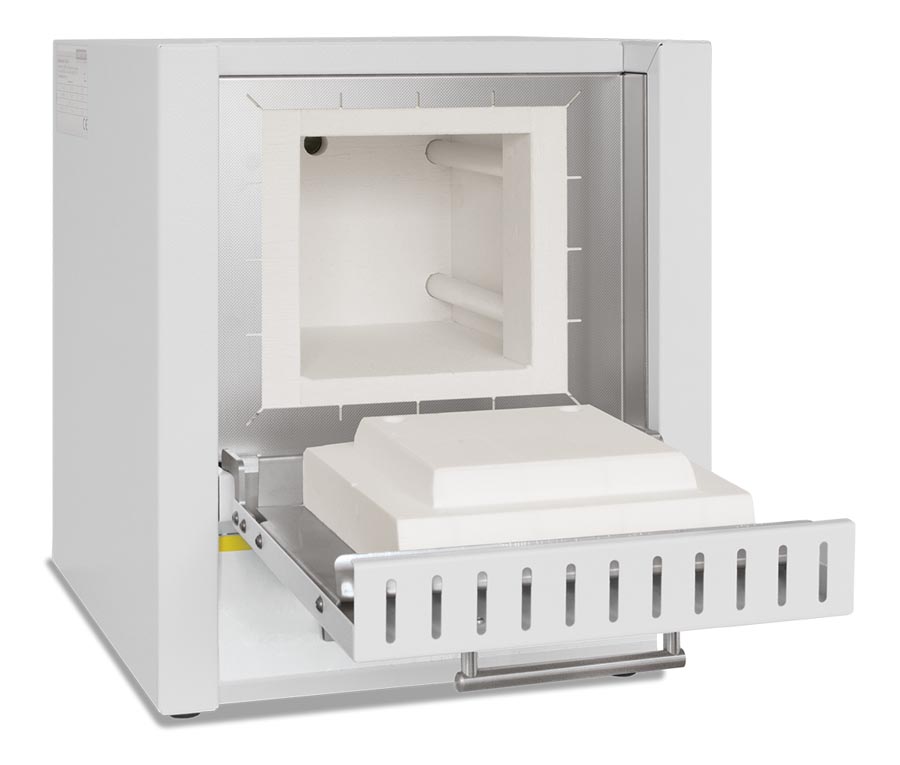

  • Flap door which can also be used as a work platform
  • Exhaust air outlet in rear wall
  • Compact dimensions and light weight
  • Controller mounted under the door to save space
  • Controller R7
  • Defined application within the constraints of the operating instructions
  • 1 year warranty
Technical Specifications:
Maximum Temperature1,100°C
Volume14 Liter (0.5 cu ft)
Chamber Dimensions (W x D x H)220 x 300 x 220 mm
8.7 x 11.8 x 8.7 inches
Outer Dimensions (W x D x H)440 x 540 x 520 mm
17.3 x 21.3 x 20.5 inches
Temperature Uniformity of ± 5K empty
Connected Load in kW3.2 kW
Electrical Connection1-phase
Weight30 kg (66 lbs)
Heating time35 minutes

Ideal for:

  • Small academic labs
  • Community colleges
  • Quality control facilities
  • Environmental testing labs
  • Chemical analysis centers

Frequently Asked Questions:

Q. What is the furnace's capacity?
A. It has a 14-liter chamber for medium-sized samples.

Q. Is it suitable for basic lab tasks?
A. Yes, it's ideal for ashing, sintering, and quantitative analysis.

Q. How user-friendly is the controller?
A. The simple controller ensures easy operation for all users.
