SKU
LE 2/11 120V
  • $3,997.00
  • $4,610.00 You Save 13.30%

Description

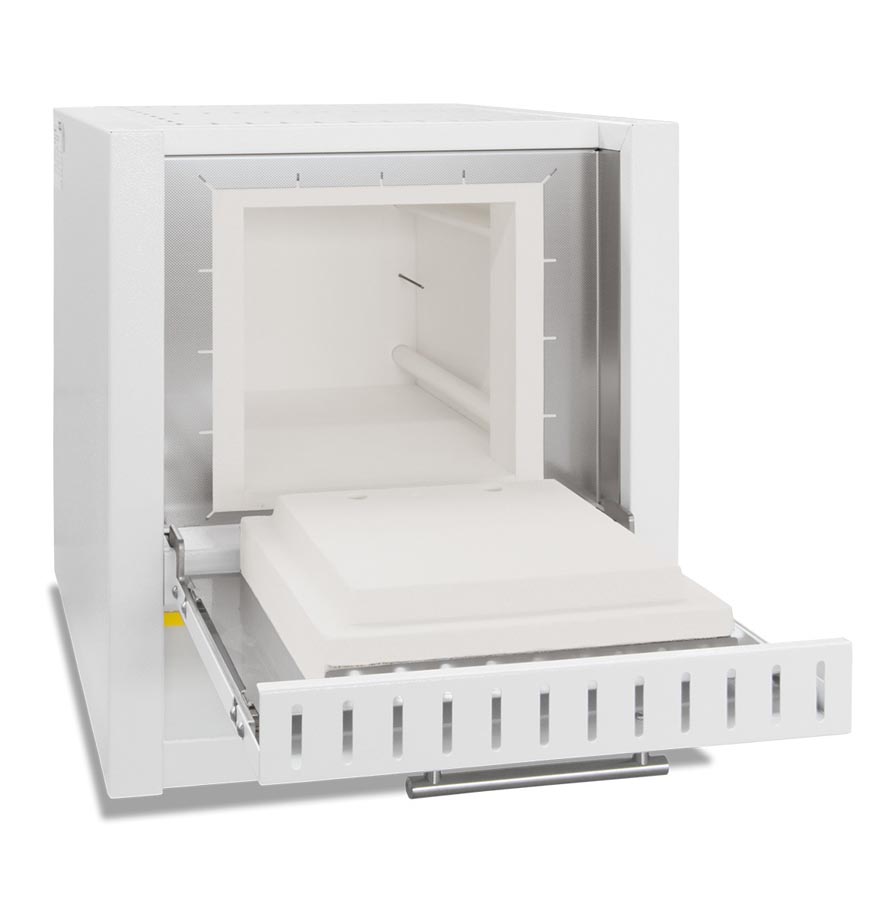

The Nabertherm LE/2/ Eleventh 120V Economy Muffle Furnace is a cost-effective solution for small laboratories, offering a 2-liter capacity and temperatures up to 1,100°C. Ideal for ashing, sintering, and quantitative analysis, its simple controller ensures straightforward operation. The flap door design enhances accessibility, while the ceramic muffle provides durability for daily use. With efficient insulation, this muffle furnace maintains consistent heat distribution, making it a practical choice for budget-conscious labs seeking reliable thermal processing.

  • Tmax 1,100°C
  • Heating from two sides from heating elements protected in quartz glass tubes
  • Fast heating times
  • Maintenance-friendly replacement of heating elements and insulation
  • Housing coated in RAL 9003
  • Solid state relays provide for lownoise operation
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
  • Flap door which can also be used as a work platform
  • Exhaust air outlet in rear wall
  • Compact dimensions and light weight
  • Controller mounted under the door to save space
  • Controller R7
  • Defined application within the constraints of the operating instructions
  • 1 year warranty
Technical Specifications:
Maximum Temperature1,100°C
Volume2 Liter (0.07 cu ft)
Chamber Dimensions (W x D x H)110 x 180 x 110 mm
4.3 x 7 x 4.3 inches
Outer Dimensions (W x D x H)330 x 390 x 410 mm
13 x 15.4 x 16.1 inches
Temperature Uniformity of ± 5K empty
Connected Load in kW1.9 kW
Electrical Connection1-phase
Weight20 kg (44 lbs)
Heating time15 minutes

Ideal for:

  • Small academic labs
  • Community colleges
  • Quality control facilities
  • Environmental testing labs
  • Chemical analysis centers

Frequently Asked Questions:

Q. What is the furnace's capacity?
A. It has a 2-liter chamber, ideal for small samples.

Q. Is it suitable for basic lab tasks?
A. Yes, it's perfect for ashing, sintering, and quantitative analysis.

Q. How user-friendly is the controller?
A. The simple controller ensures easy operation for all users.
