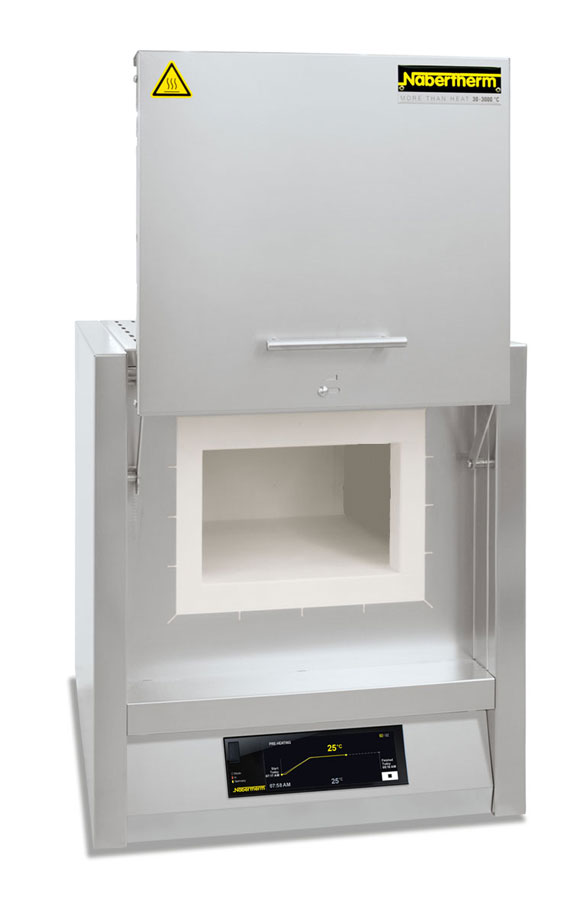

The Nabertherm LT9/11/SKM B510 Muffle Furnace is engineered for laboratories requiring specialized thermal processing. Featuring a 9-liter chamber and a maximum temperature of 1100°C, this muffle furnace is perfect for ashing, sintering, and testing chemically aggressive materials. Its ceramic muffle (SKM) ensures superior resistance to corrosive samples, while advanced fiber insulation delivers rapid heat-up and energy savings. The B510 controller provides programmable settings for precise thermal control. The top-loading design enhances workflow efficiency, and safety features like an over-temperature limiter make this furnace a reliable solution for demanding lab applications.
| Maximum Temperature | 1,100°C |
|---|---|
| Volume | 9 Liter (0.32 cu ft) |
| Chamber Dimensions (W x D x H) | 230 x 240 x 170 mm 9 x 9.4 x 6.7 inches |
| Outer Dimensions (W x D x H) | 490 x 505 x 580 mm 19.3 x 19.9 x 22.8 inches |
| Max. connected Load in kW | 3.4 kW |
| Electrical Connection | 240 Volt, 50/60 Hz, 1-phase |
| Weight | 50 kg (110 lbs) |
| Heating time | 75 minutes |
| Door Type | Vertical lifting door |
| Controller | B510 5 programs of 4 segments |
Ideal for:
Frequently Asked Questions:
Q. What is the maximum temperature of the LT9/11/SKM B510?
A. It reaches up to 1100°C, suitable for ashing and sintering.
Q. How does the ceramic muffle benefit users?
A. It provides resistance to chemically aggressive samples, extending furnace life.
Q. Is the controller programmable?
A. The B510 controller supports programmable settings.
Q. What safety features are included?
A. It offers an over-temperature limiter for secure operation.
