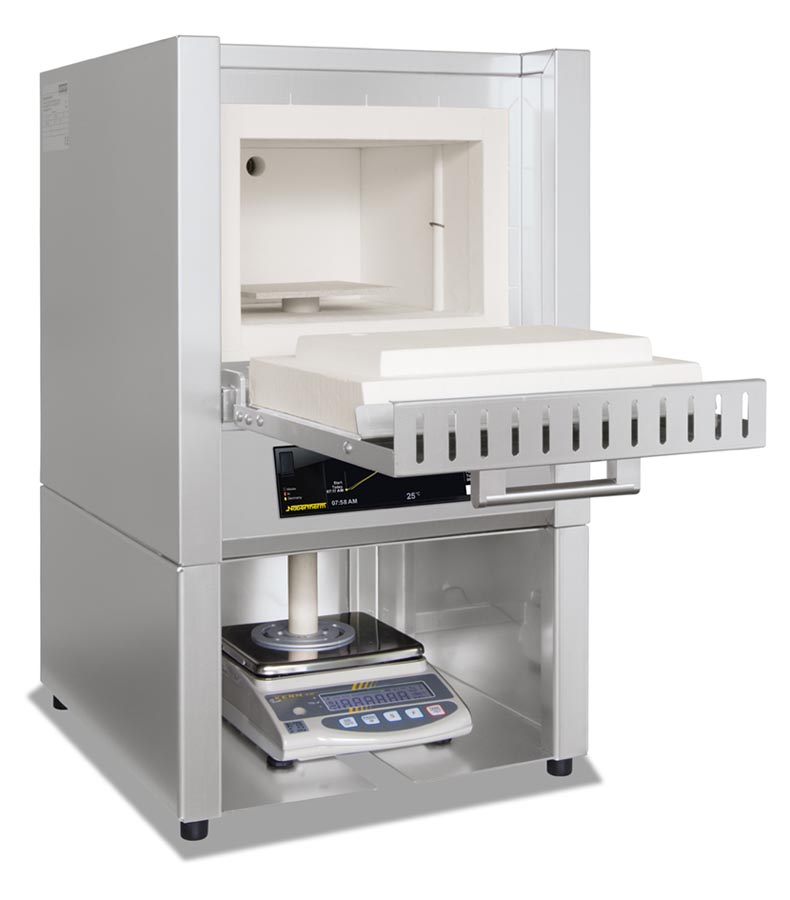

Nabertherm LT9/11/SW C550 208V Combustion Loss Muffle Furnace, 1,100°C, C550 Controller

The Nabertherm LT9/11/SW C550 208V combustion loss muffle furnace has a 1,100°C maximum temperature with a 9 liter capacity and comes with the C550 (10 programs, 20 steps) controller and a flap opening door. This weighing furnace with integrated precision scale and software, was designed especially for combustion loss determination in the laboratory. The determination of combustion loss is necessary, for instance, when analyzing sludges and household garbage, and is also used in a variety of other processes for the evaluation of results. The difference between the charged total mass and the combustion residue is the combustion loss. During the process, the software included records both the temperature and the weight loss.

• Tmax 1100°C
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/? 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800?°C
• Thermocouple type N (1100°C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• Lift door (LT) with hot surface facing away from the operator
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• C550 controller (10 programs, 20 steps)
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

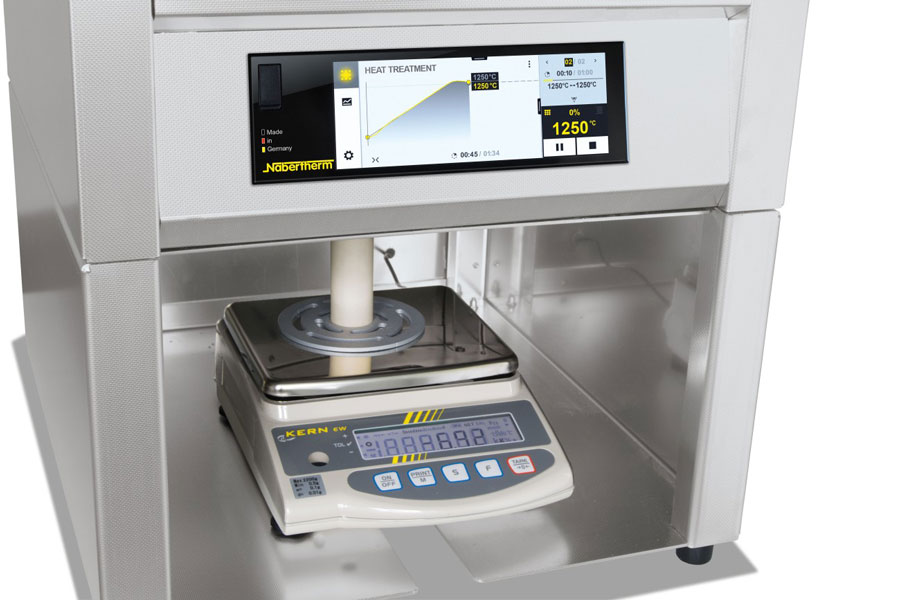

• Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package
• 4 scales available for different maximum weights and scaling ranges

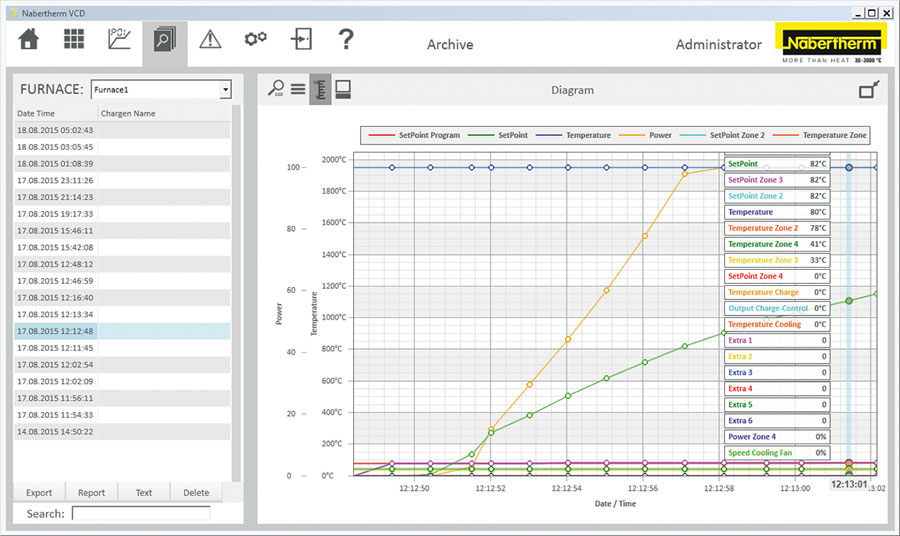

• Process control and documentation for temperature and combustion loss via VCD software package for monitoring, documentation and control
• 1 year warranty
